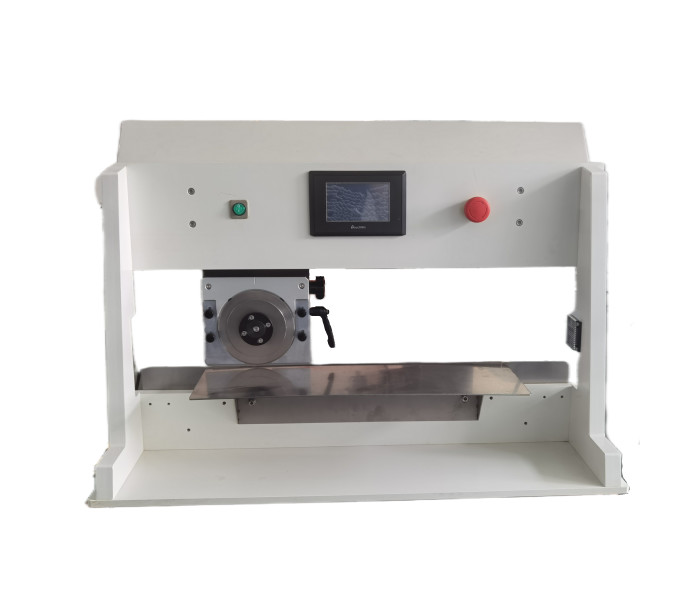

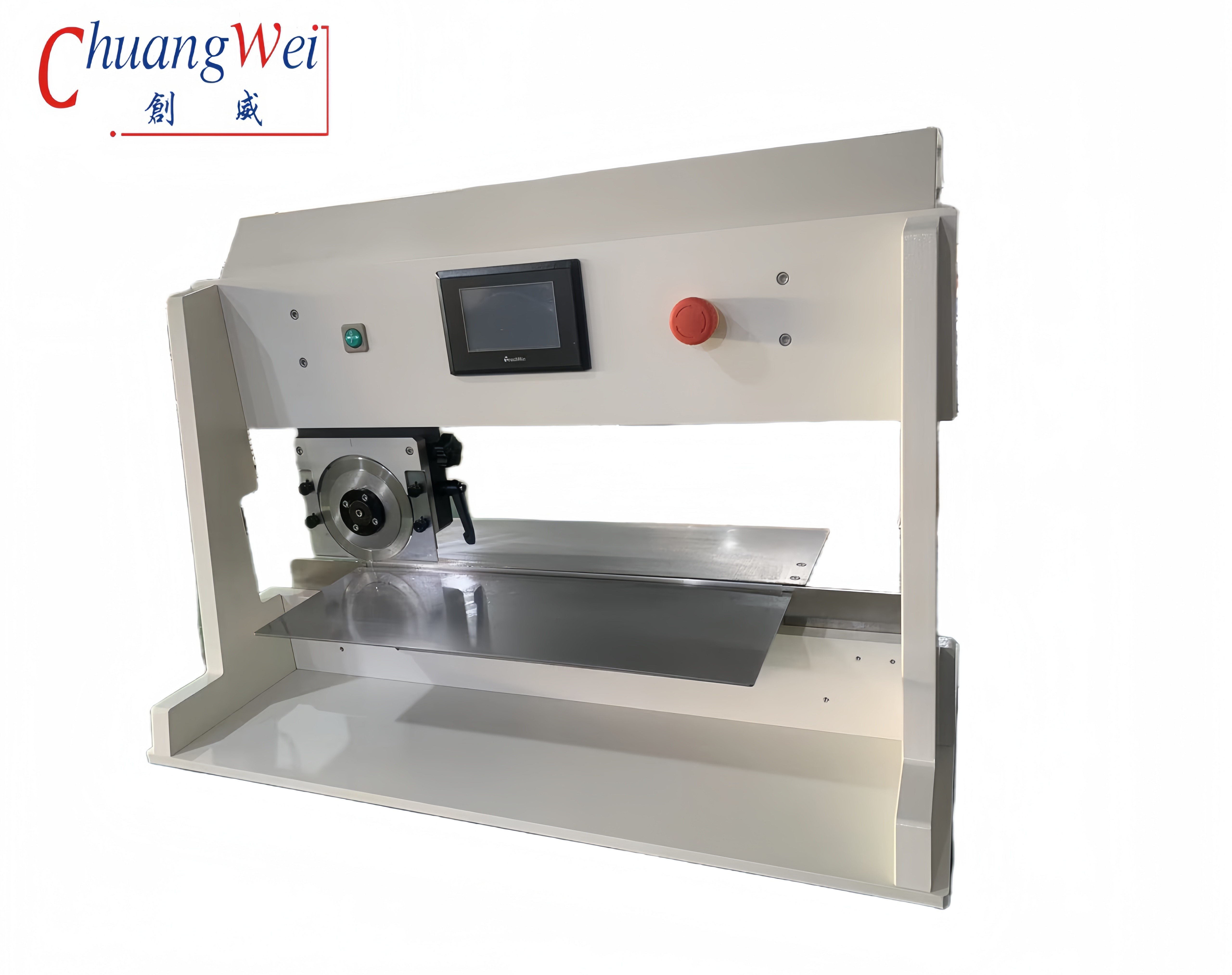

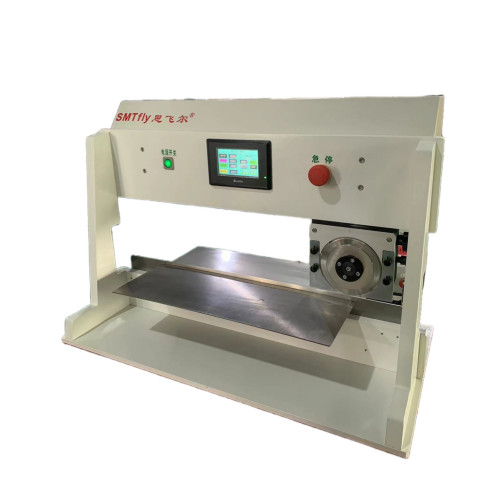

Motor-driven PCB Prototype Stress-free Separator of Pre-scored,PCB De-panel
The CWV-1A separates both large and small PCBs quickly, economically and without stress. Cutting with only a single traverse of the pre-scored groove causes tensile and compressive stresses that can damage sensitive compoinents near the groove. Even a second traverse of the groove accompanied by an adjustment of the blade distance substantially reduces the tensile and compressive stresses. This significantly improves the quality of the populated PCBs.
Features:
●Separate pre-scored PCB assembly without stress on either PCB or component.
●One touch programming of cut length with digital display.
●Separating speed is adjusted by a rotary knob.
●Handle Intermittent scoring or cut-outs.
●Board with projected component can be cut precisely.
●Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable.
●Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
PCB Separators Specifications :
| Model | CWVC-1A460 |
| Max. PCB cutting length | 460 mm ( on request custom made ) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100 , 200 , 300 , 500 mm / sec |
| Blades type | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110 / 220v |
| PCB cutting machine size | 770 * 510 * 450 mm |
| PCB cutting machine weight | 55 kg |
Our Service:
A. Pre-consultation:provides professional SMT solution for the full line.
B. Factory Warranty:One-year warranty factory service.
C. Installation:On-site installation and commissioning,to ensure smooth production.
D. Technical Training:provides professional training from level 1 to level 3.
E. Technical Support:provides 7 days * 24 hours technical support.
F. Software Upgrade:offer lifetime free software upgrades for all products.
