PCB Separator Machine high speed steel Thickness 1.0-3.5 Mm

PCB Separator Machine Thickness 1.0-3.5 Mm High-Speed Steel

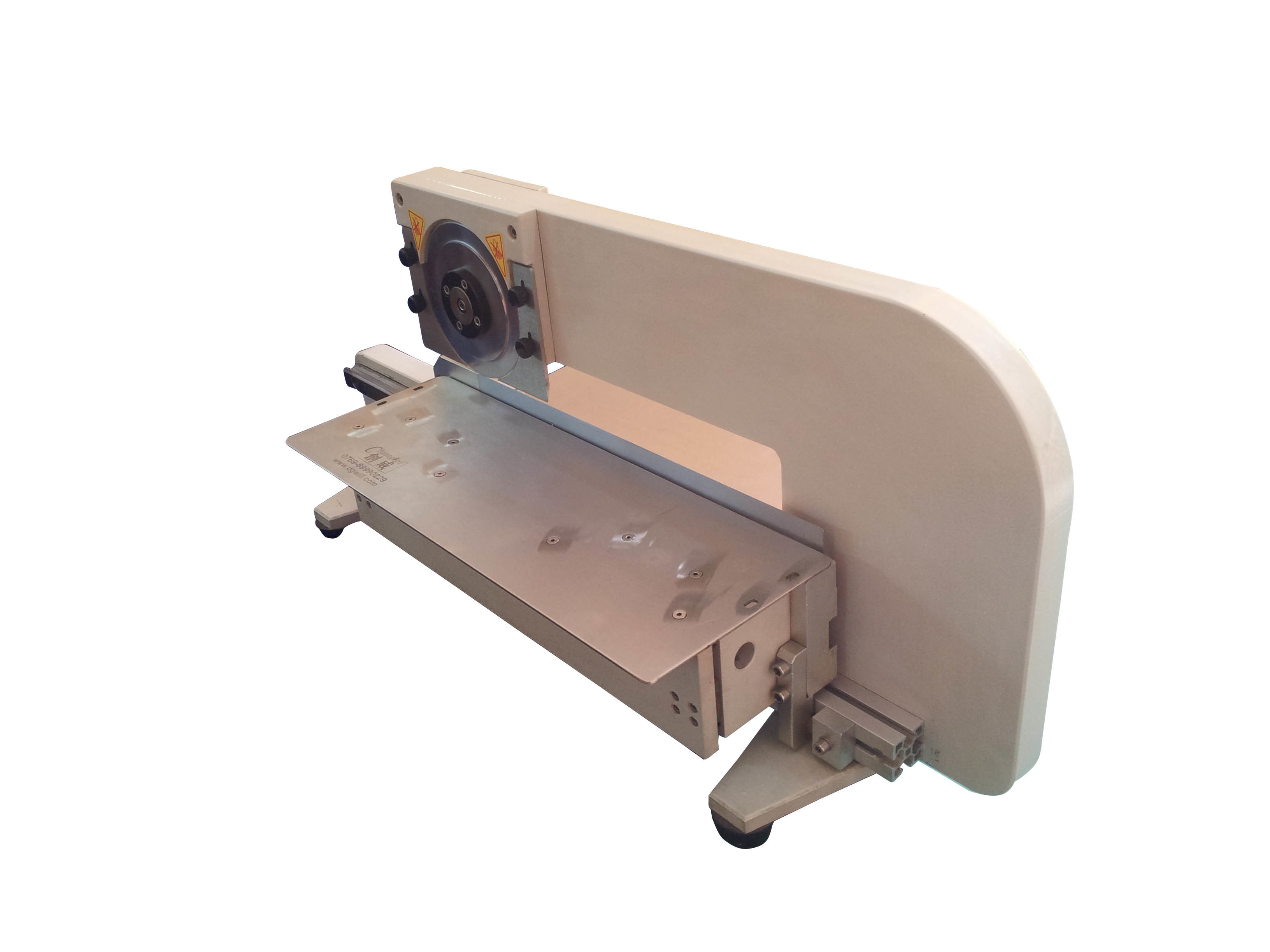

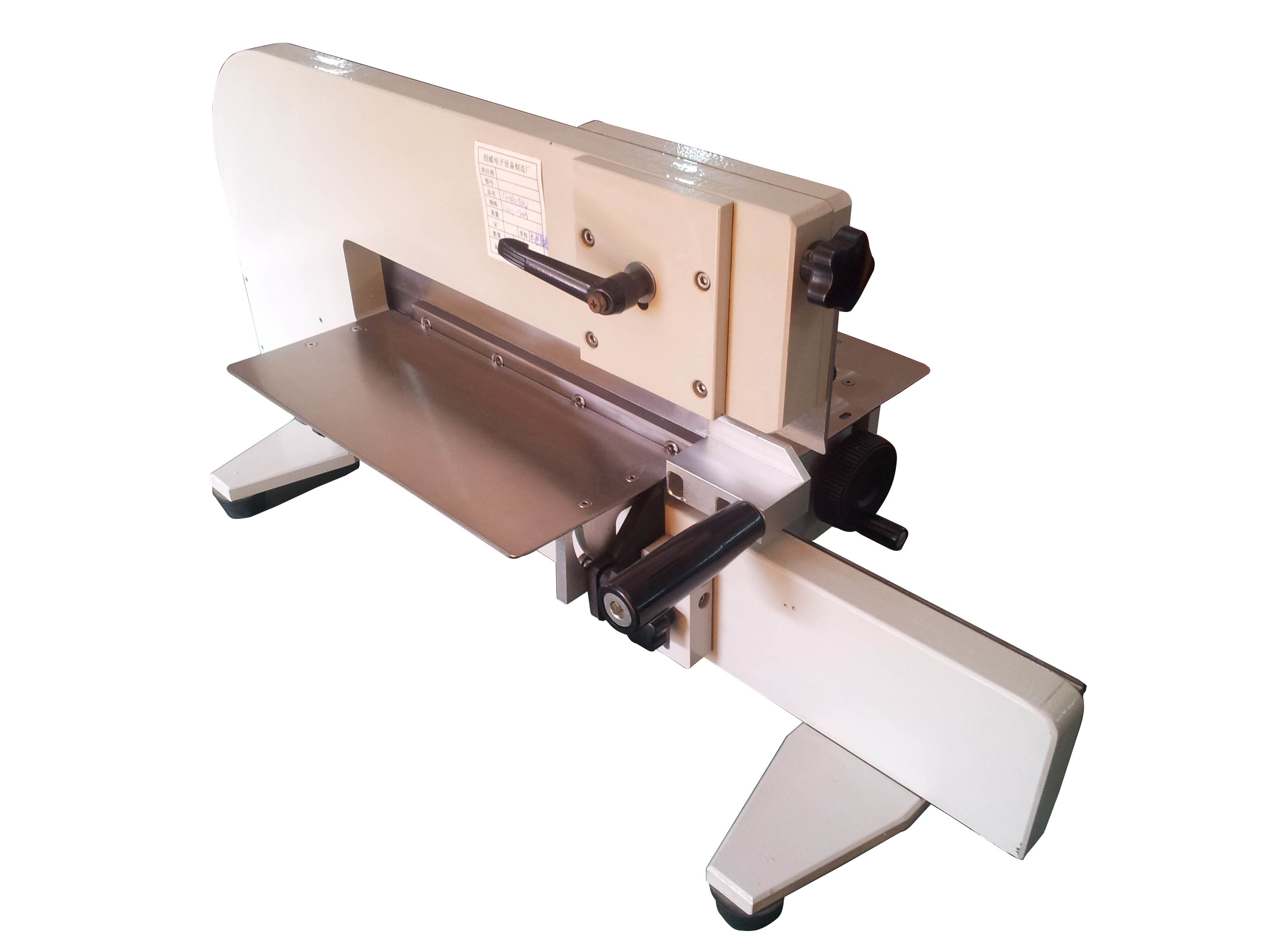

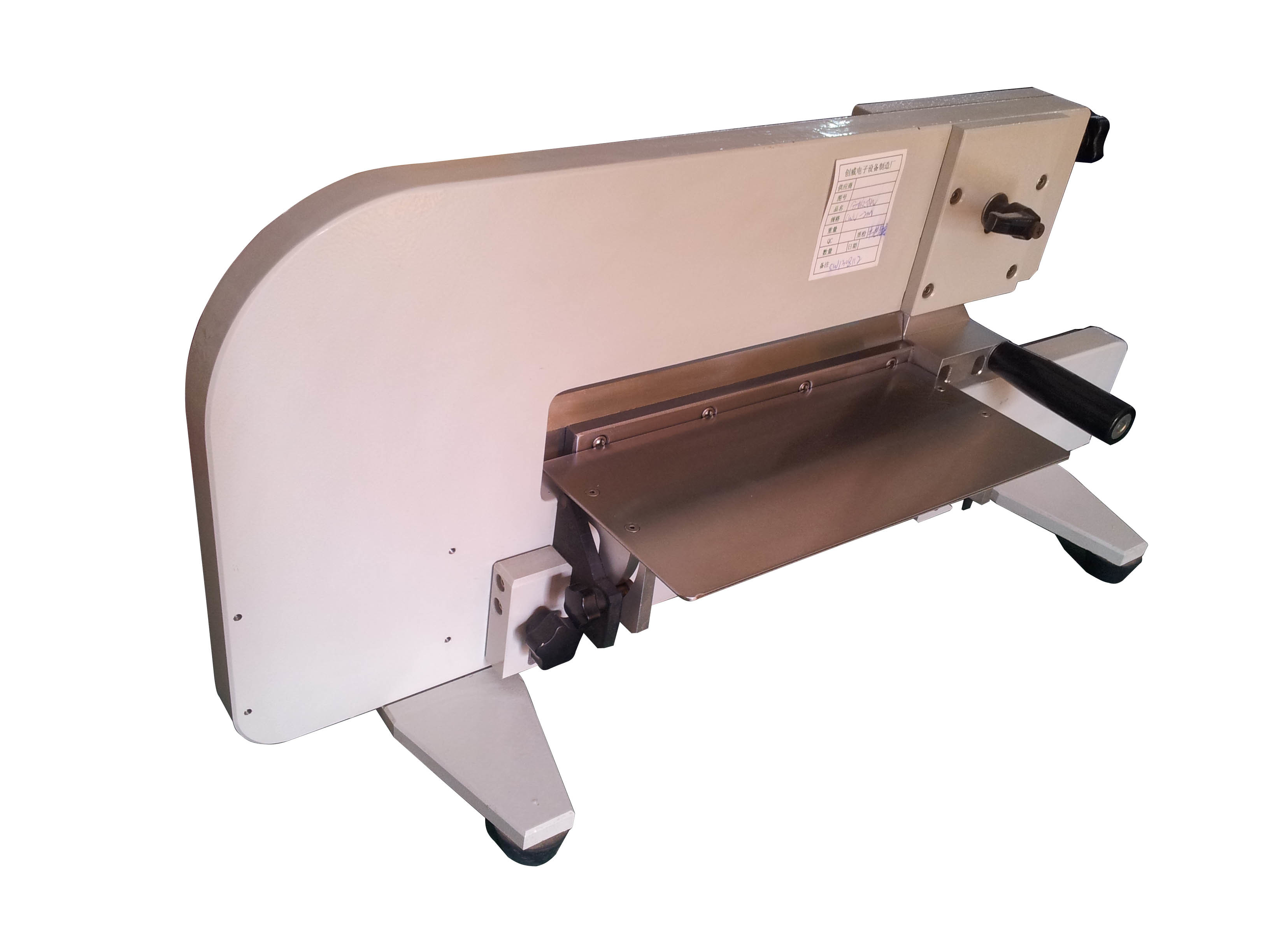

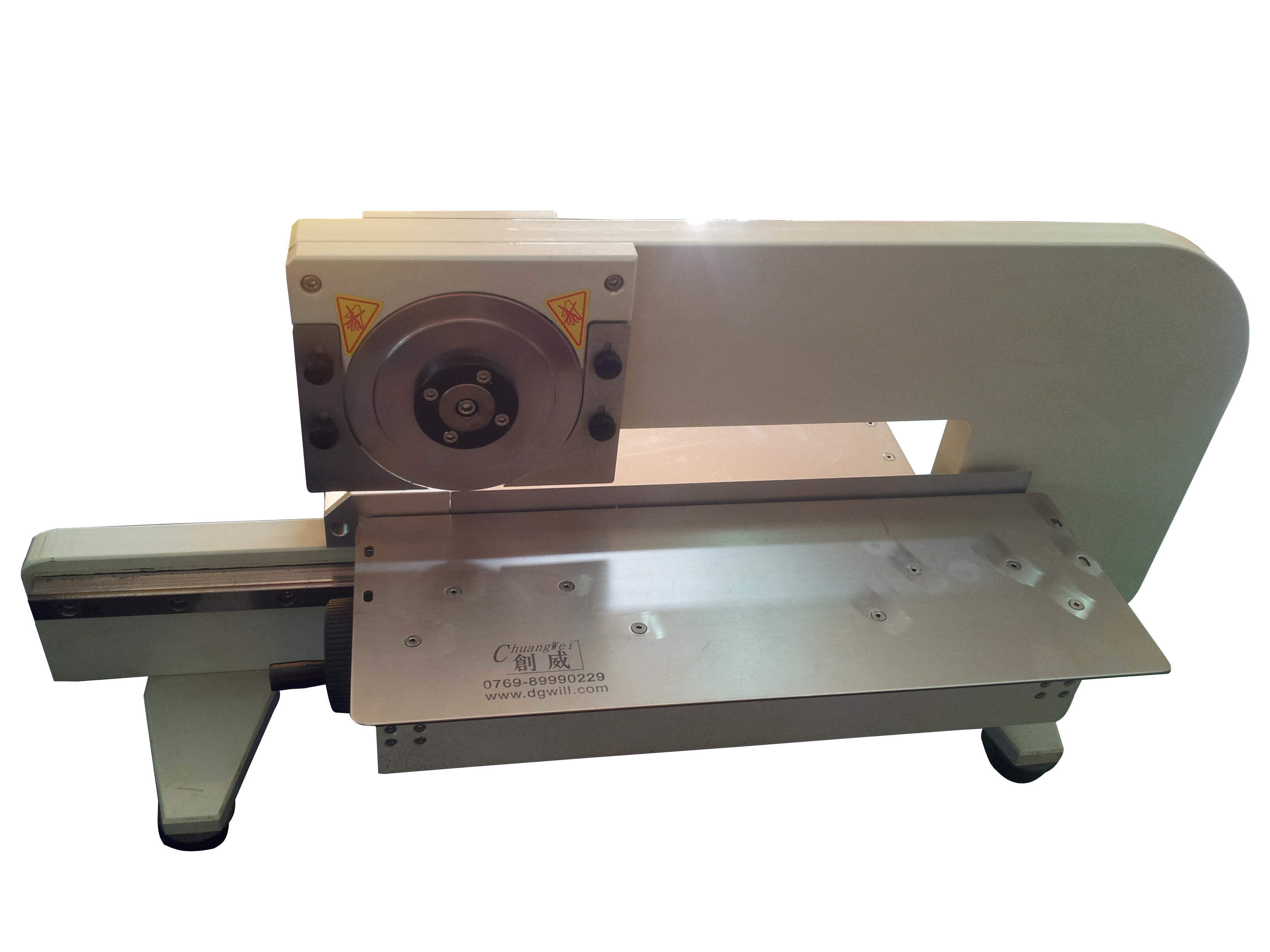

CWV-2M Hand push V cut grove PCB separate separator cutting machine Introduction:

• Fine processing, Accurately and Rigid
• Fine blade height can be adjusted to suit the PCB
• By pressing the start button or fully automatic by continuous running
• Separate the PCB Steady and precise
• Minimize the shearing stress to avoid micro-cracks of the solder joints
• Guiding device of the "V-CUT" of the PCB
• This can prevent the solder joints and the circuit board being cracking up
• Ball bearing slideways for easy setting of the PCB edge guides
• Ball bearing slideways for easy setting of the height of the tabletop
• Cutters can be re-grinded
• The shape of the cutter can be customer made

Feature :

1. Easy to operate, keep moving by lower knife to improve cutting effects

2. Height of lower knife adjustable, suitable for different thickness of PCB

3. Blades are re-shareable, Speed control by manual

4. Frame is made of high quality steel 5. Lower internal stress to prevent damage of PCB

5. Lower internal stress to prevent damage to PCB

6. Gap for insertion of the board can simply be adjusted by means of the adjusting knob

Specification :

Application PCB: V-CUT and S.9M.T.PCB(substrate)
Max PCB cutting length:330 mm

V-CUT Thickness:1.0-3.5 mm

Weight: 40 kg

Size: 620 X 260 X 310 mm

One year warranty
