PCB Separator Machine Excellent Toughness Protect Electronic Component

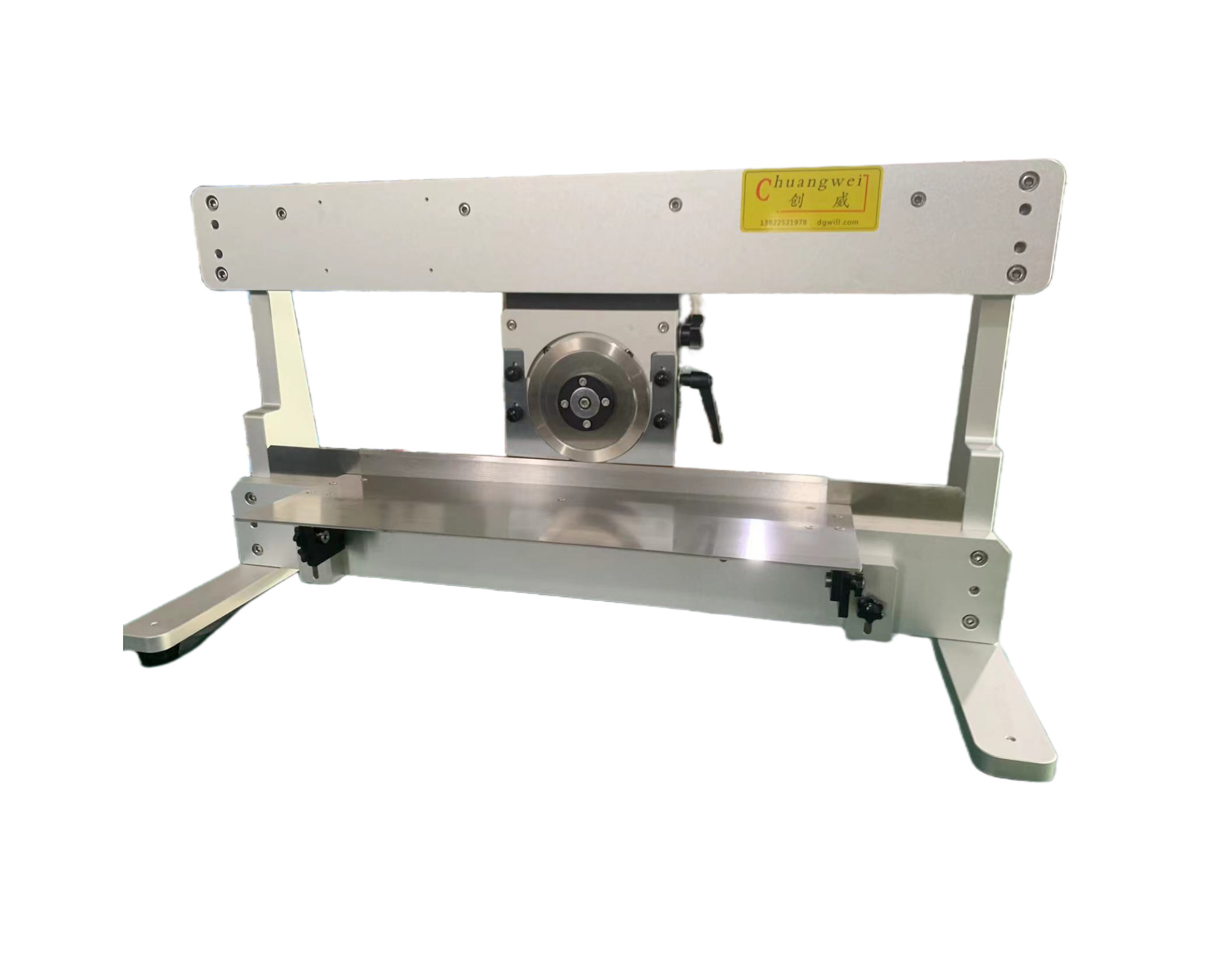

Chuangwei Machine Diagram:
Factory pcb depaneler protects electronic component
1. PCB Protection
2. Calibration Blade Setting
3. All Speed Control By Human
4. More Accurate
Specification:
|
Model |
CWV-1M |
|
PCB Cutting Length (mm) |
460/700/1000/1500 |
|
Cutting Speed (mm/s) |
manual |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Size (mm) |
400*780*480 |
|
Weight (Kg) |
55 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade Hardness (HB) |
540~567 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:

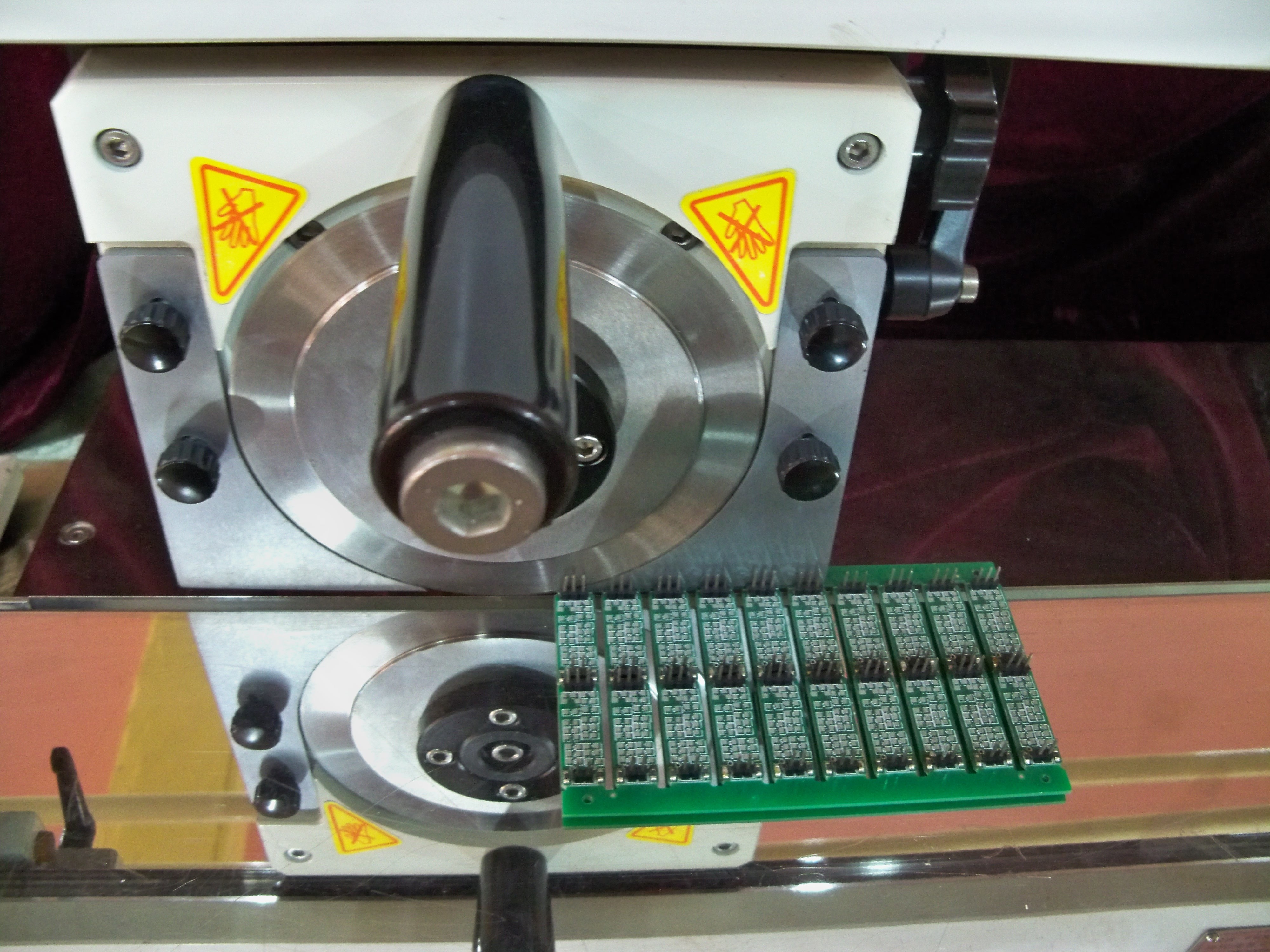

1. Round knife, manually cutting against lower linear knife, for reduced stress
2. Separate pre-scored PCB assembly without stress on either PCB or component
3. One-touch programming of cut length with digital display
4. Separating speed is adjusted by a rotary knob
5. Handle Intermittent scoring or cut-outs
6. The board with projected components can be cut precisely
7. Large stainless steel platform on both sides of the cutting blade prevents board wobble and table height and angle are adjustable
8. Optional PCB conveyor belt to remove the finished board
9. Clearance between circular and linear blades is adjustable to fit different groove depth and compensates for blade wearout
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker, we get Experts--15, each one has over 6 years
of experience, equipment quality will be satisfying.
