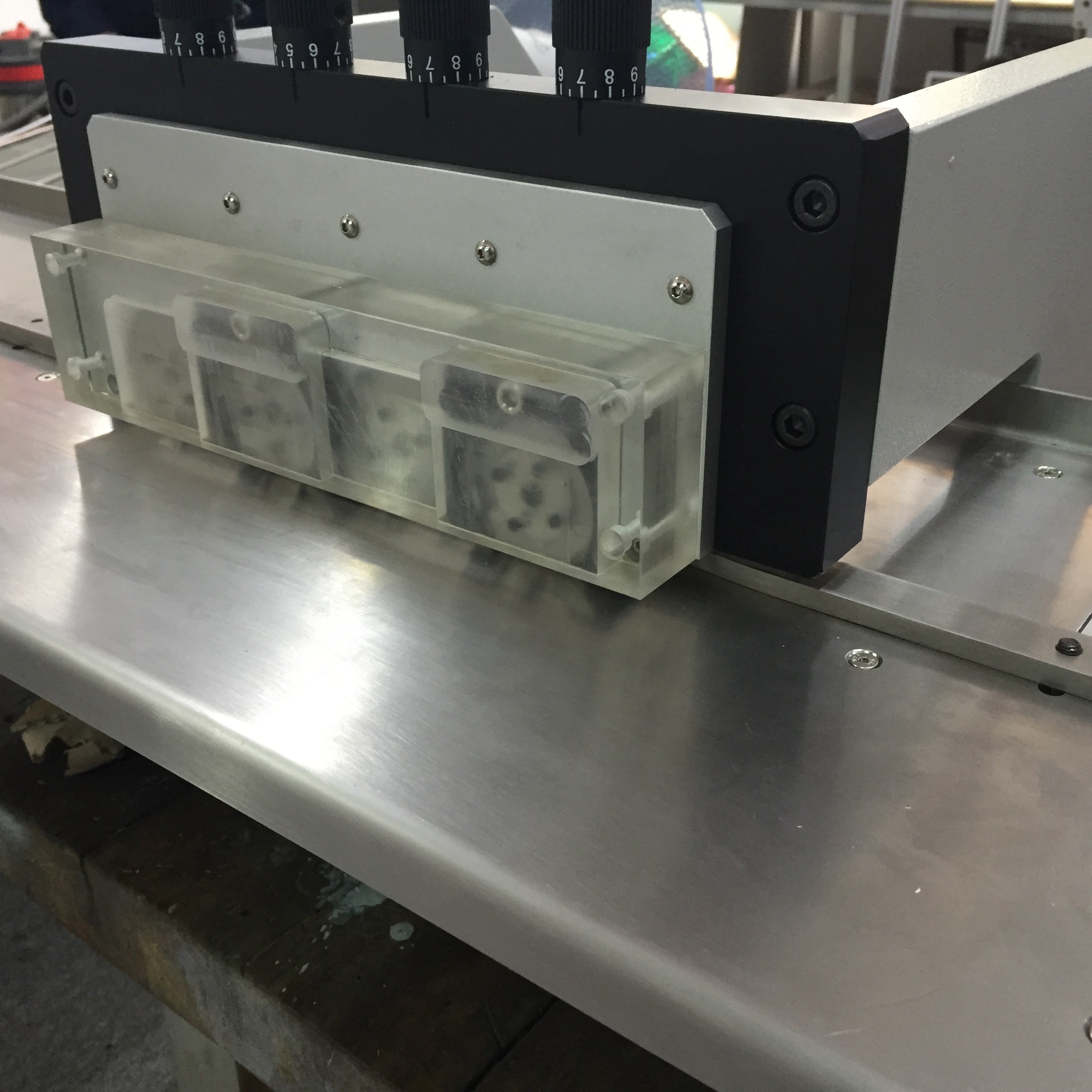

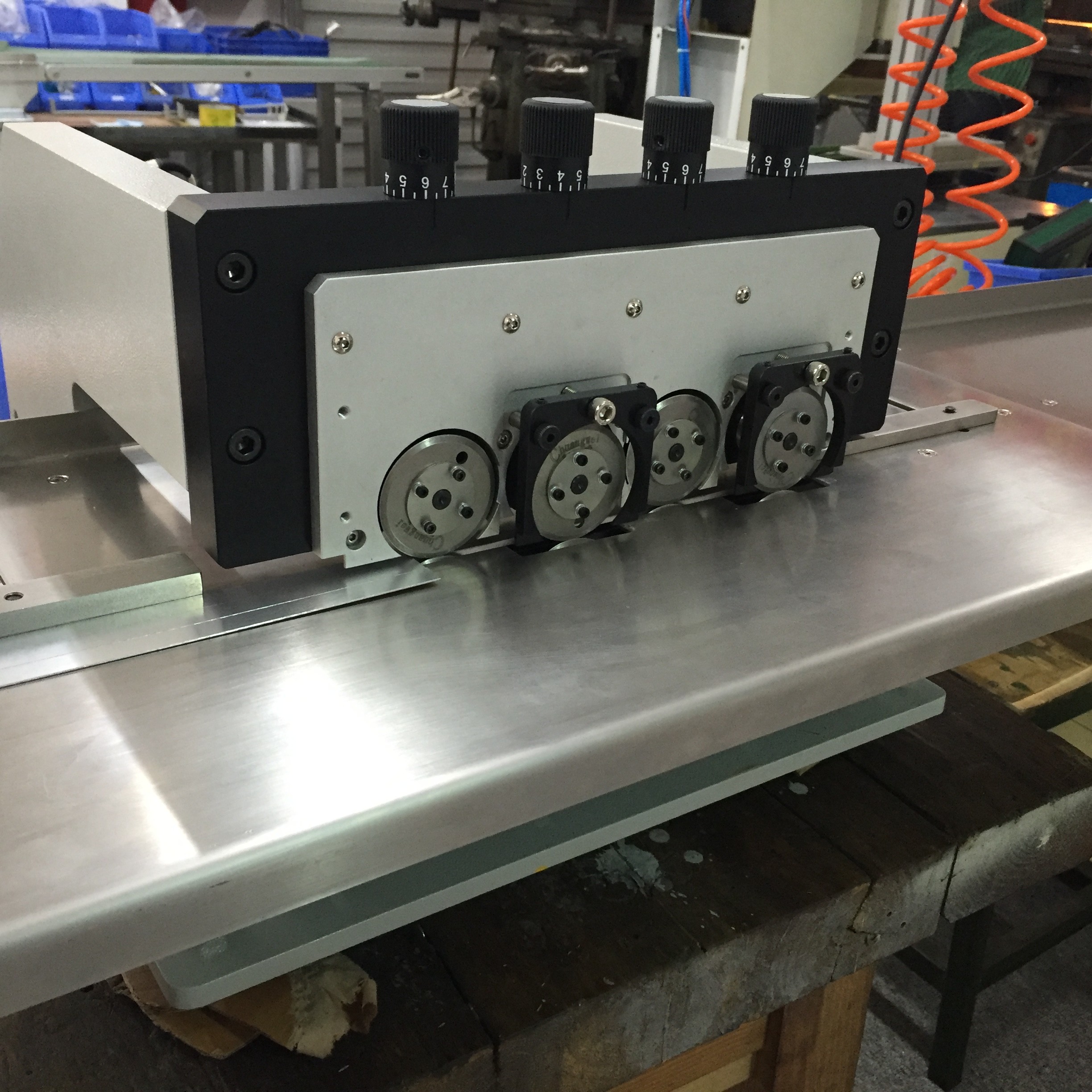

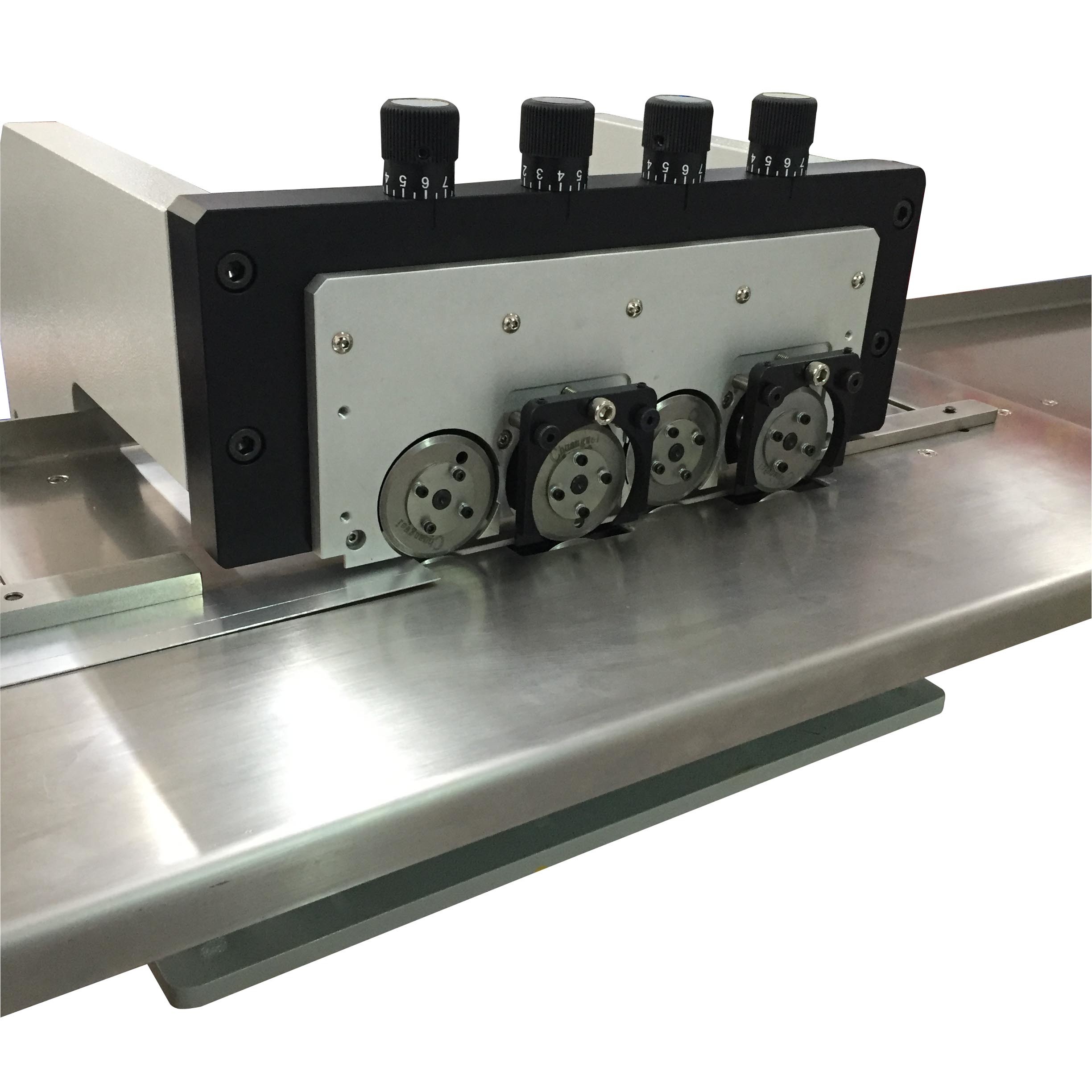

PCB Depanelizer LED Lighting Aluminium Board With Multi-Blades Feature:
1. The guide can be adjusted vertically to suit different LED boards.
2. Clearance between the circular blades can be precisely
adjusted by the knob.
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to the customer's specifications.
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect.
7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)
Specification :
The Longest Minimize: No limited
Minimize thickness: 1.0-3.5mm
Platform: 1.5 M /2.4 M length
Minimize Speed: 0-520mm/s
Machine Size: 40*40*34 cm
Machine Weight: 70Kg
Max PCB width: 12mm
