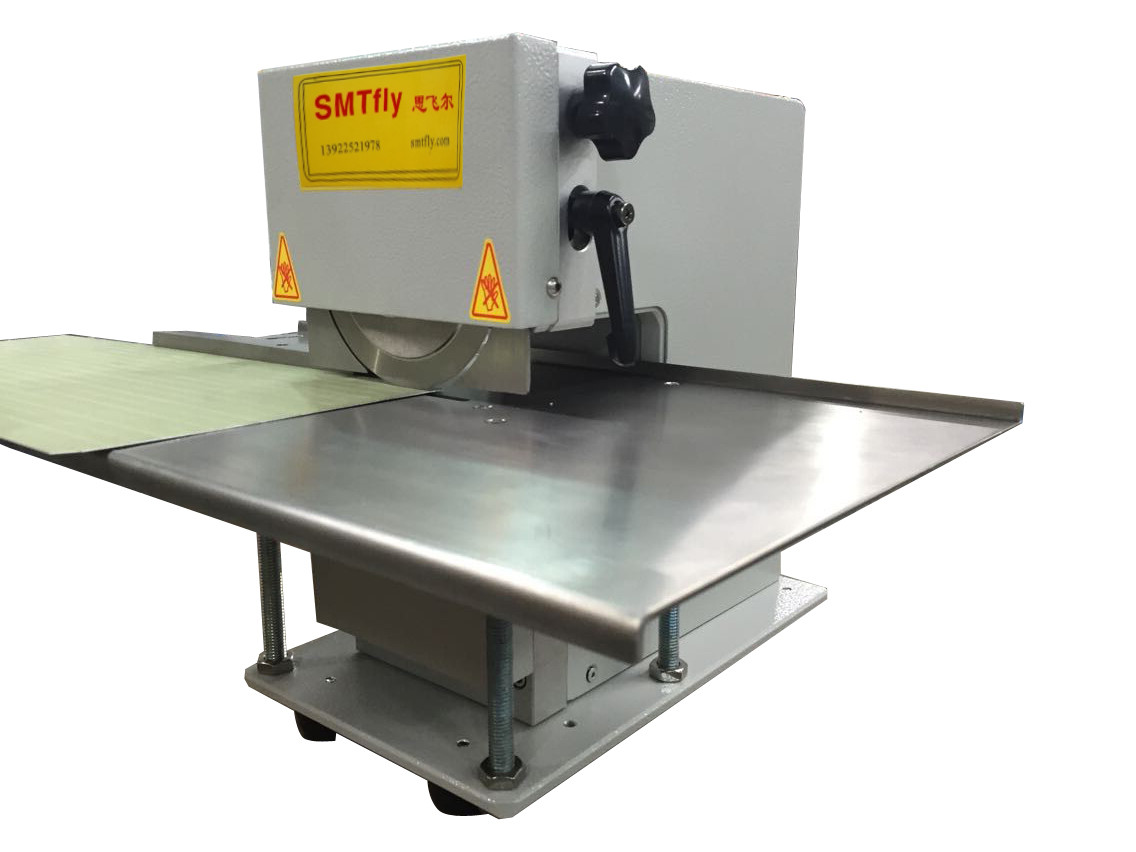

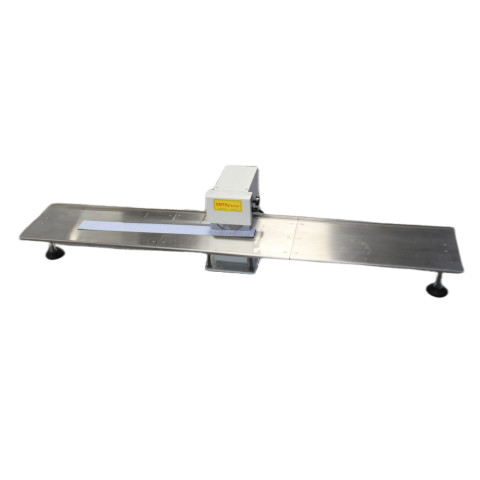

PCB Separation Pre Scrored PCB Depaneling Machine V Groove PCB Separator
Feature:
1. Guide can be adjusted vertically to suit different PCB thickness.
2. Clearance between the circular blades can be precisely adjusted with the knob.
3. .Shape and sizes of the circular blades can be made according to the customer's specifications.
4. Upper and lower circular blades can be re-used after regrinding.

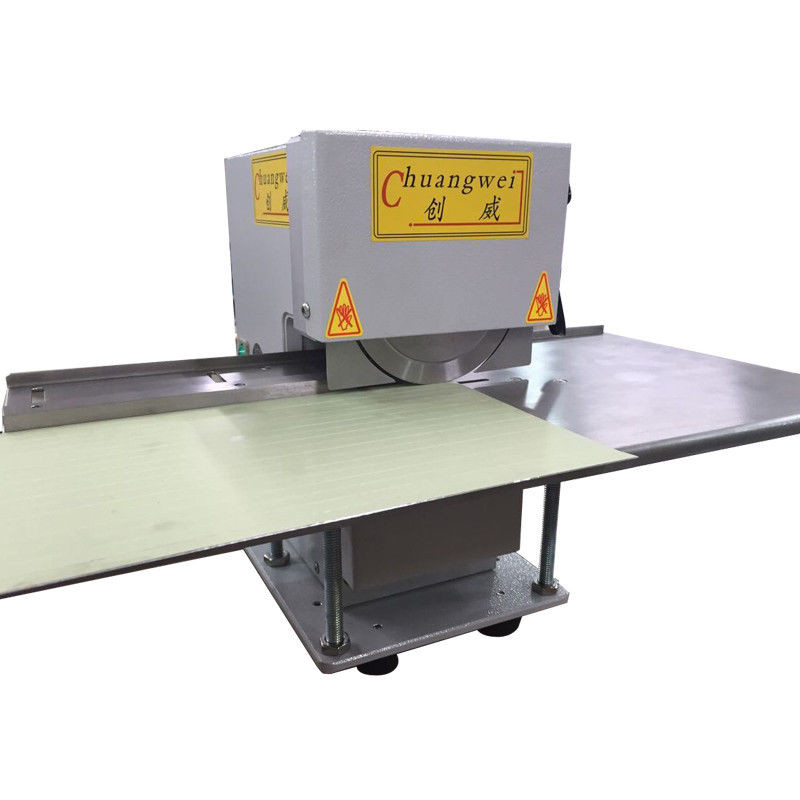

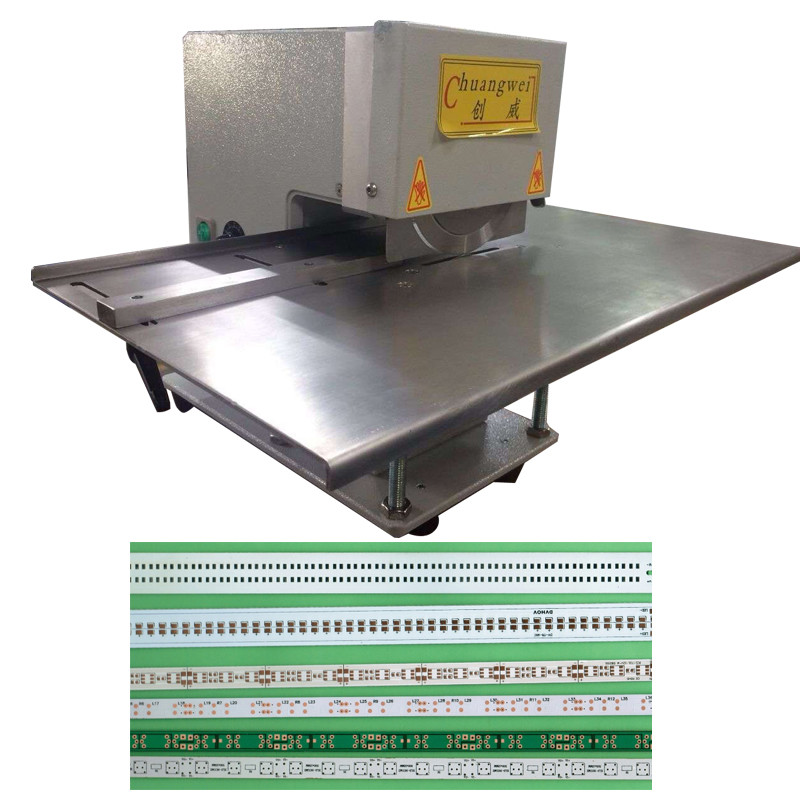

Chuangwei Machine Diagram:
Sell PCB cutting machine with economical and practical
1. Avoid damaging
2. Easy setting of the PCB edge guides
3. Cutters can be re-grinded
4. Easy operating modes
Specification:
|
Model |
SMTfly-1SJ |
|
PCB Cutting Length (mm) |
No limit |
|
Cutting Speed (mm/s) |
0~400 |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
420*280*400 |
|
Weight (Kg) |
25 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), LED.
2.Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated to
high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Safe, easy to operate
2. Structural precision, the load evenly, to eliminate internal stress
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Our Advantage :
1. SMTfly Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15, each one got over 6 years of experience, equipment quality will be satisfying
