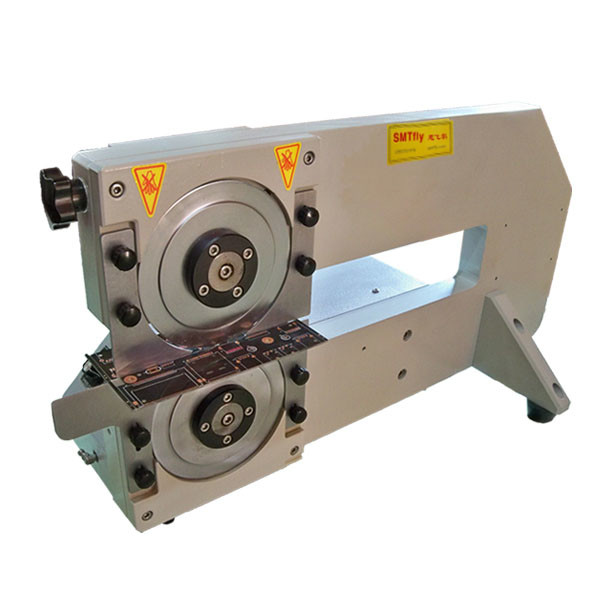

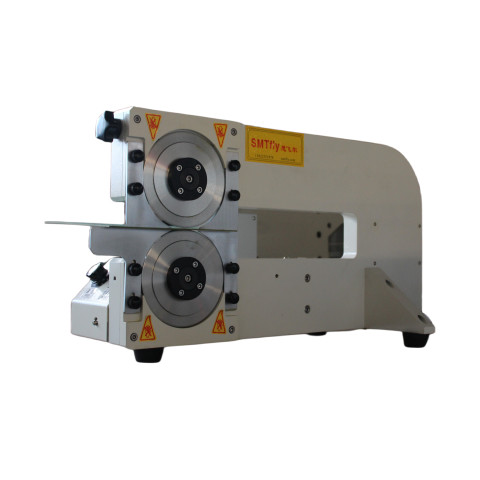

PCB Separator Machine Blade Rolling 40mm/S 330mm Length Circuit Board

Blade-rolling PCB Separator 330 mm Length, circuit board assembly

Specification :

Size : 420mm x 280mm x 400 mm
The Longest Minimize:  330mm
Minimize Speed:    0-40mm/s
Minimize thickness:    1.0-3.5mm
Machine Weight: 70Kg

Description :

Give your products a cost-effective quality improvement bump with affordable SMTfly-1 PCB dealer.

Affordable, dependable CWVC-1 PCB dealer keeps pace with low through mid-volume production, providing reliable, burr-free separation with no stress to the boards or nearby components.

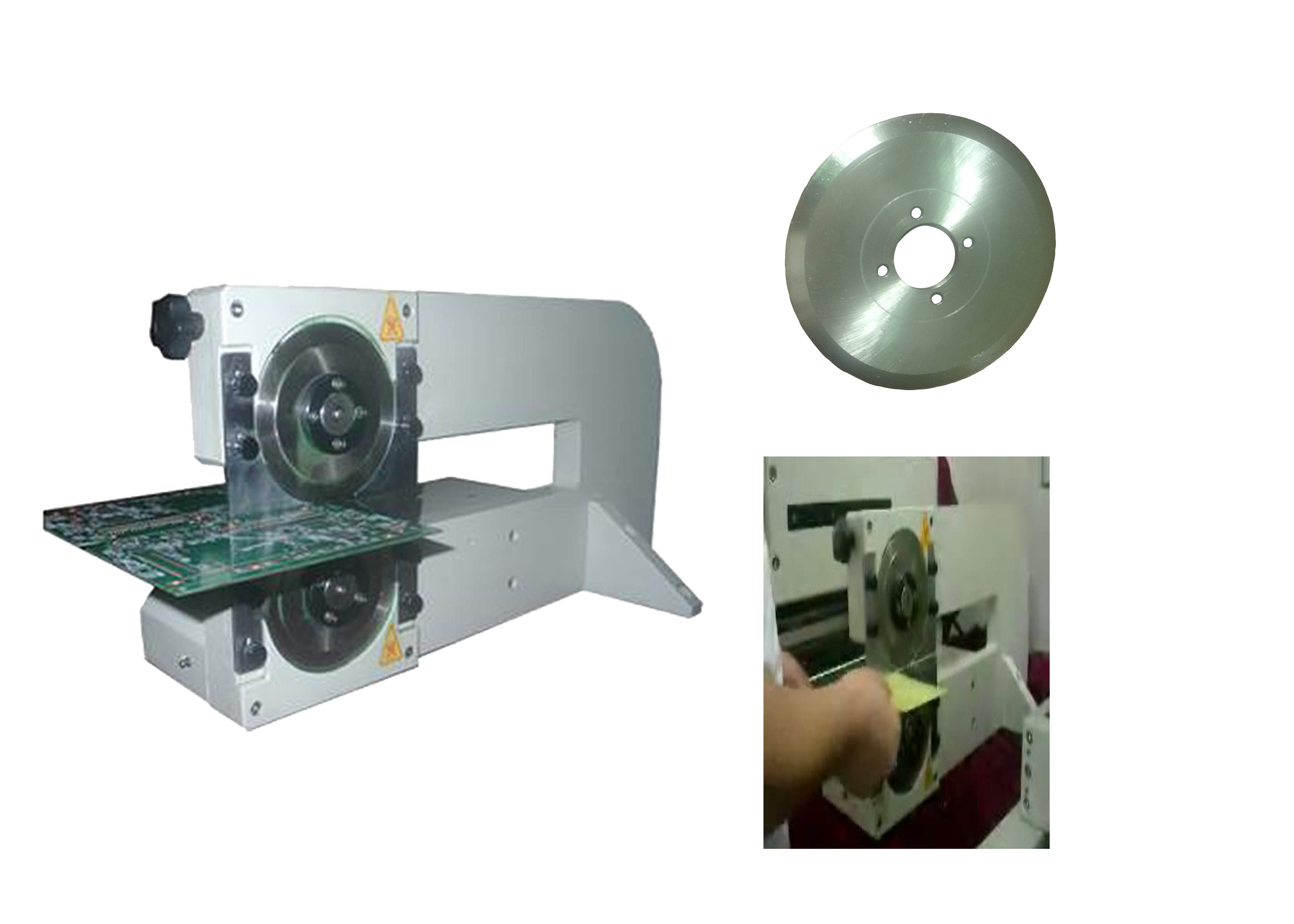

Operation is quick and easy. Simply align the scoring line with the extended lower guide. Lock the upper blade to the exact thickness of the PCB. The lower blade transports and cuts the board while the upper " coasting " blade acts as a guide to maintain proper alignment with the pre-scored groove.

CWVC-1 improves product quality over hand-separation of panels by eliminating the stress caused by " snapping " the boards apart. This stress often causes microcracks in solder joints and/or delamination of boards, both of which can lead to critical failures in testing or the field.

SMTfly​-1 PCB Depanel Features :

• Dual circular blades ensure clean, burr-free separation without stress to boards or nearby components
• Prevents microcracking of solder joints and delamination of PCBs during the separation process
• Process densely populated PCBs with components as close as 1 mm from the scoreline
• Accommodates boards up to 400 mm (15.7") long
• Cutting blades made of hardened tool steel to ensure long life
• Blades are shielded for safety
• Depanel boards with components up to 32 mm tall
• Easy setup
• Heavy-duty construction for stability
• Low maintenance
