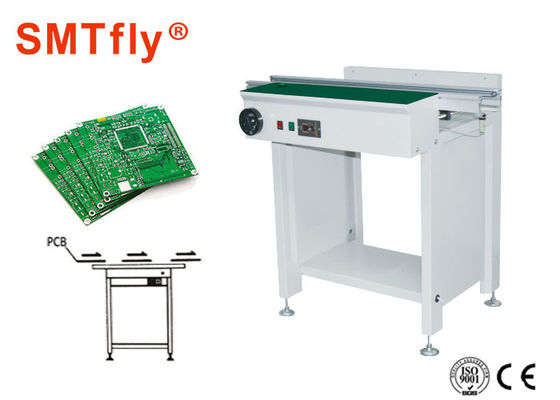

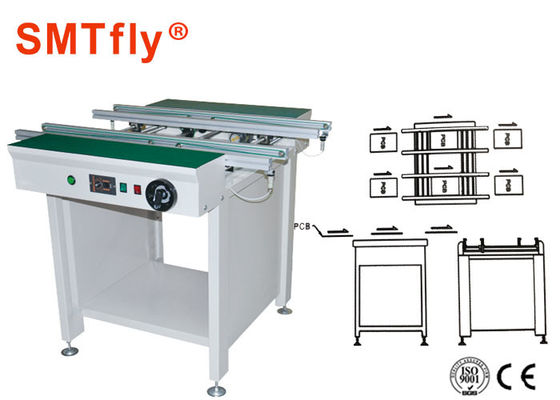

350*250mPCB Dual Track Conveyor for Testing Station SMTfly-BC250H
Features:
Fully-sold gold frame, electrostatic dusting on the surface;
Increased design stability;
Optional pass/detection mode;
Smooth and parallel width adjustment (stainless steel screw);
According to customer requirements;
Variable speed control;
Dual rail design saves machine floor space;
Compatible SMEMA interface.
Technical Parameters
Description
This equipment is used to connect SMT production lines to dual track machines and can also be used as a testing station.
| Conveyor type | Round belt or flat belt |
| Transfer speed | 0.5-20 m/min or user specified |
| Power supply | 100-230V AC (user specified), single phase |
| Electric load | Max 100 VA |
| Transmission height | 900±20 (or user specified) |
| Delivery direction | Left → Right or Right → Left |
Specifications
| Model | SMTfly-BC250H | SMTfly-BC350H |
| Board size(L*W-L*W) | (50x50)～(350x250) | (50x50)～(500x350) |
| Dimensions(L*W*H) | 1000*1000*910 | 1000*1100*910 |
| Weight | 70Kg | 85Kg |
Modular design
Robust design improves stability
Ergonomic design makes the arm less fatigued
Smooth parallel width adjustment (screw)
Optional circuit board detection mode
Customize machine length and number of plates according to customer requirements
Adjustable speed control
Compatible with SMEMA Interface
