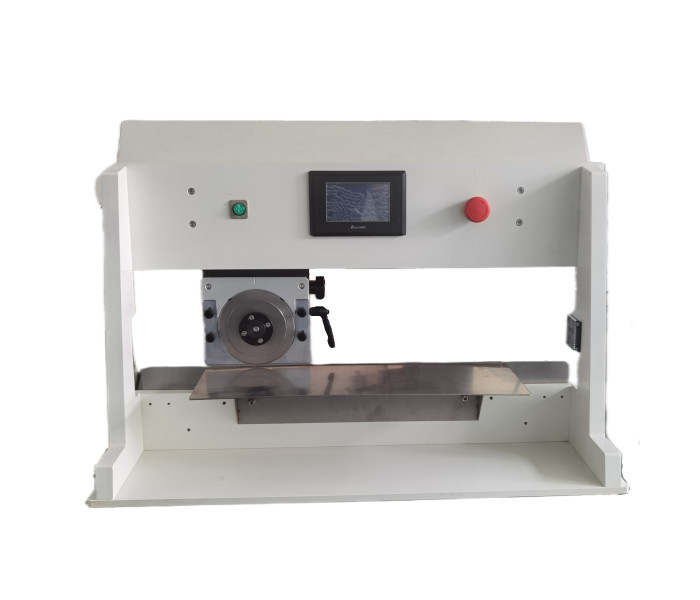

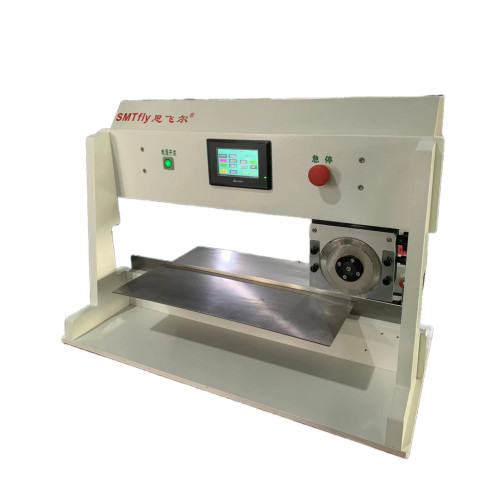

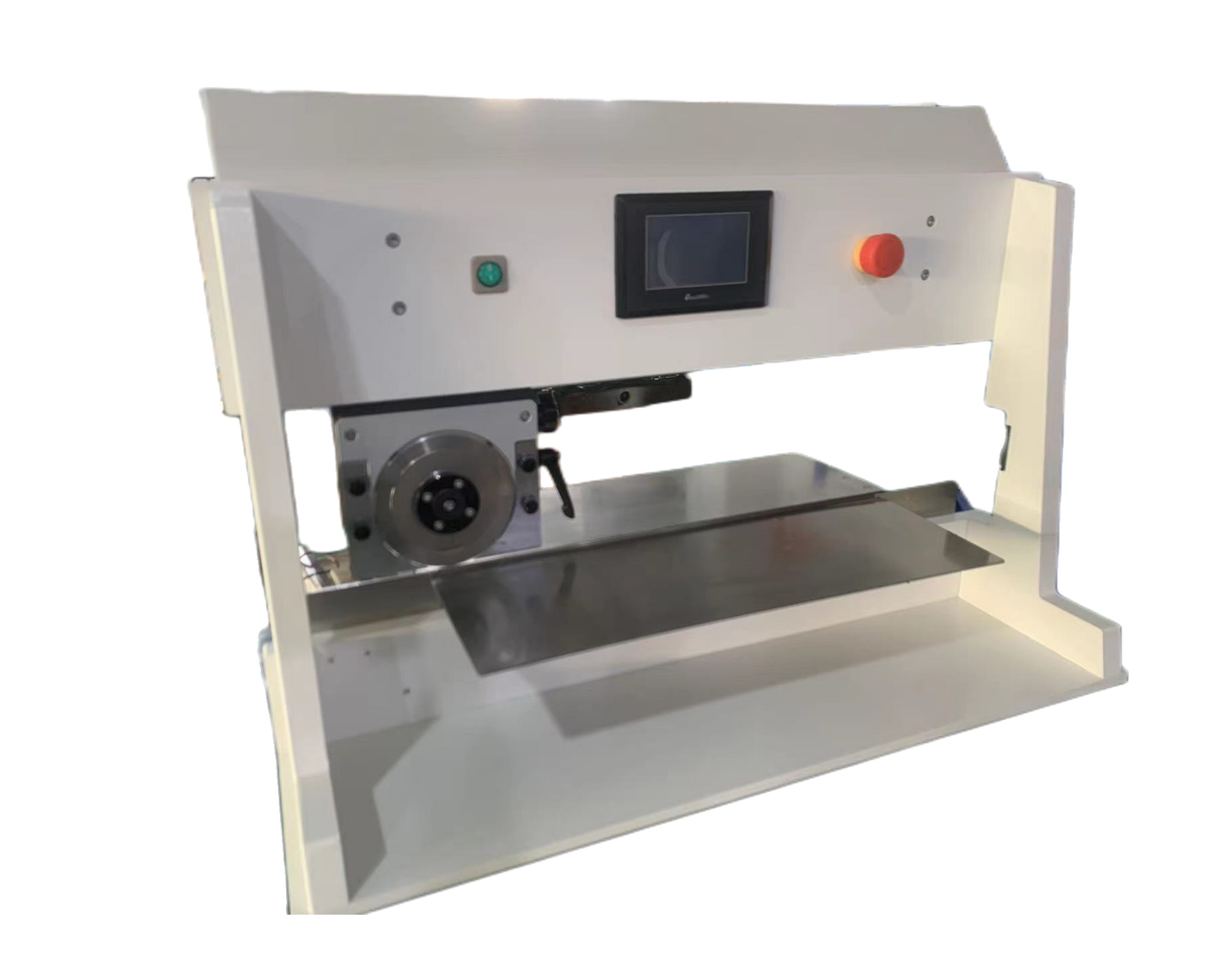

Automatic Pcb Separation Cutting The Aluminum Base Boards
pcb separator specification :
| Pcb Separation Machine size | 77*51*45CM |
| Max. pcb cutting length | 460mm |
| cutting speed | 100/200/300/500mm/s |
| cutting thickness | 0.6-3.5mm |
| Pcb Separation Machine weight | 90 kg |
Pcb separator features :
The blade distance is entered on the operating panel and its adjustment is motor-powered .
Up to eight programs can be stored .
The materials used for PCBs are FR4 and aluminium
The continuously adjustable separation length is set with limit switches .
LCD display , has capacity counter function
The circular blade moves horizontally and the straight knife moves up and down
to cut the board with the pcb staying, thus the electronic elements won’t be damaged.
With microcomputer technology, the program can control the cutting schedule and cutting times with storage of up to 100 groups of data. This machine is suitable for width from 58mm to 220mm of board.
The gap between the upper and lower blade is adjustable, from 0mm to 15mm.
The straight blade moves up and down, which is available to cut double-sided board.
The manual switch controls the cutting speed of 1 cut/s.
No need to feeding boards manually with high-tech device, there are reserved port for external robotic hand.
The productivity is visible due to the auto counter performance.
With safety device of Omron infrared light sensor, the machine stops operation when it senses the hand or foreign matter in the moving zone of the blade.
With step motor, the machine locks by itself and positioning accurately when in an energized state.
When the solder panel with many pieces of boards is separated, it’s easy to hurt the elements or the circuit. While this machine is available to avoid the damages and improve working efficiency and quality.
After cutting the pcb, the boards can be transferred directly to the inspection line through the conveyor belt.
