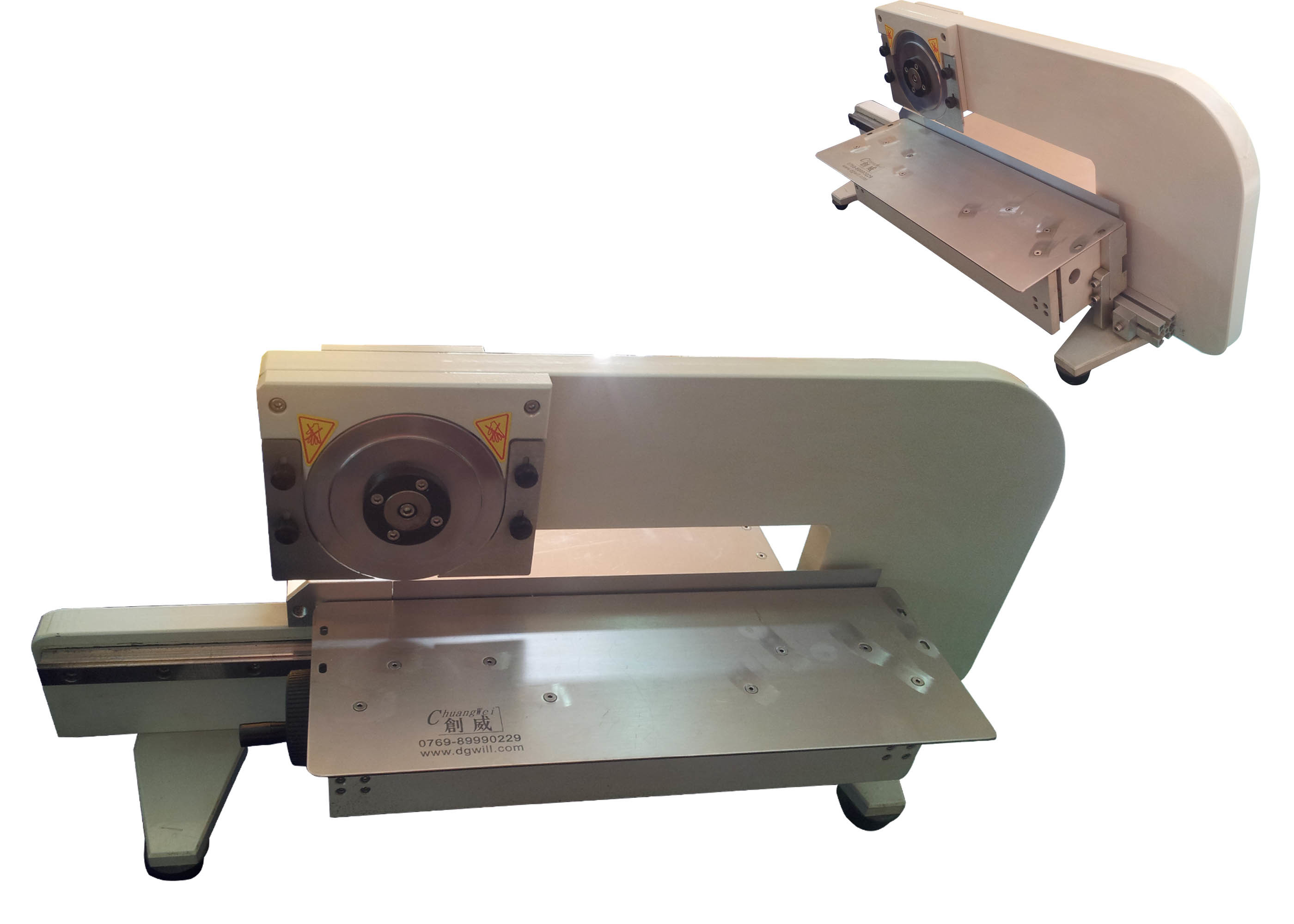

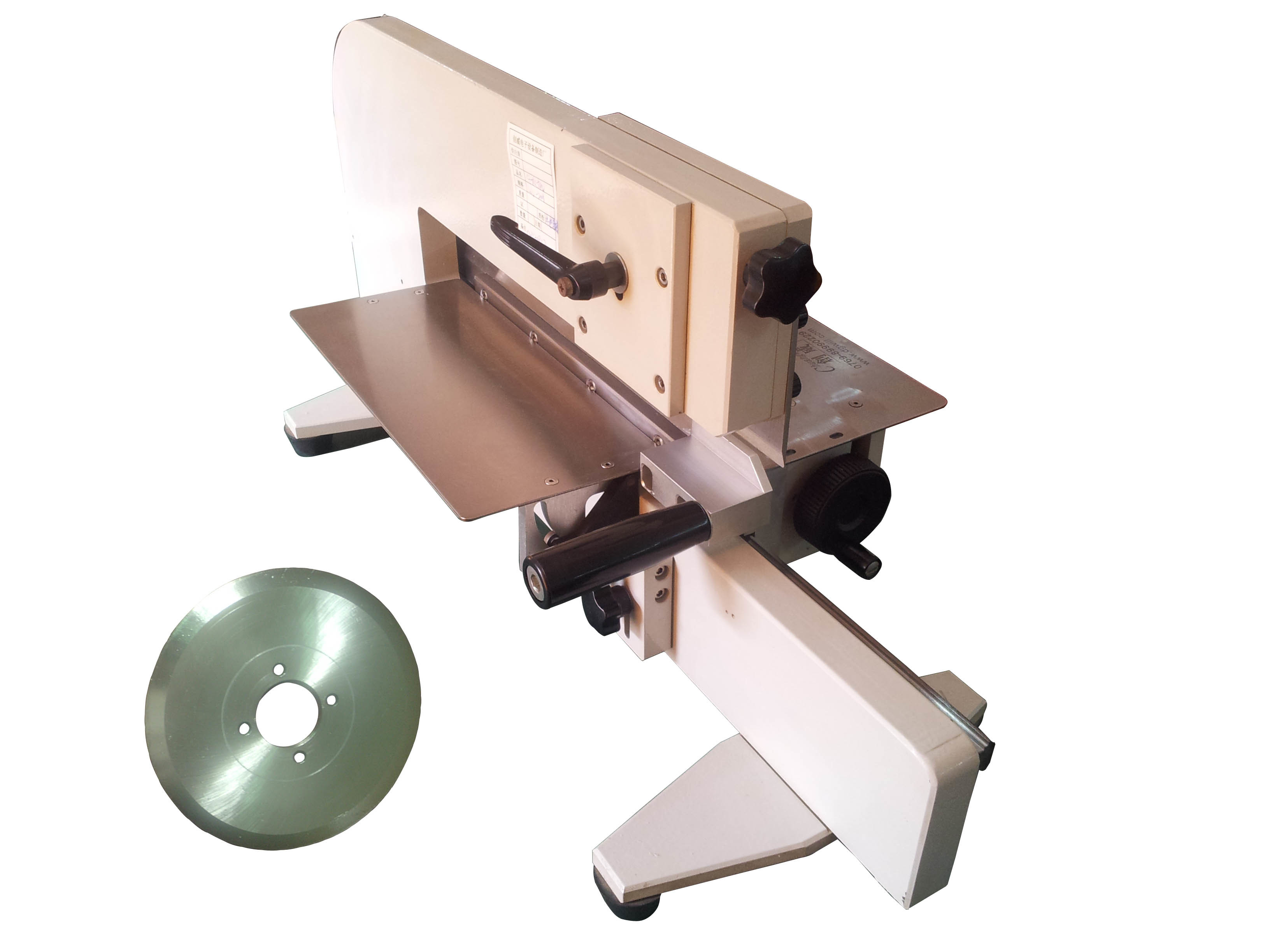

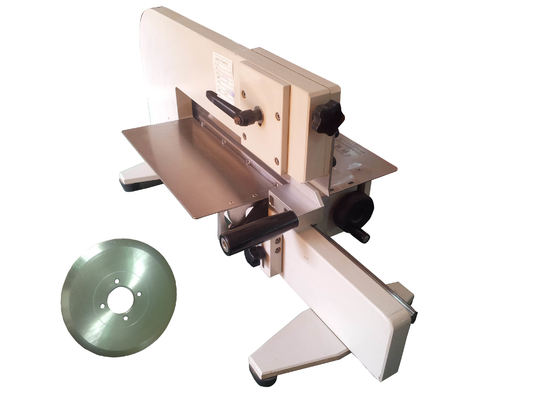

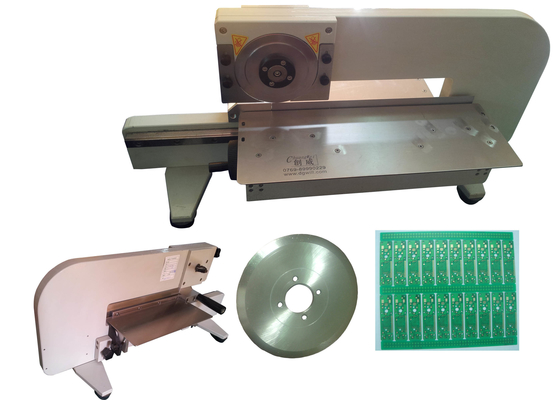

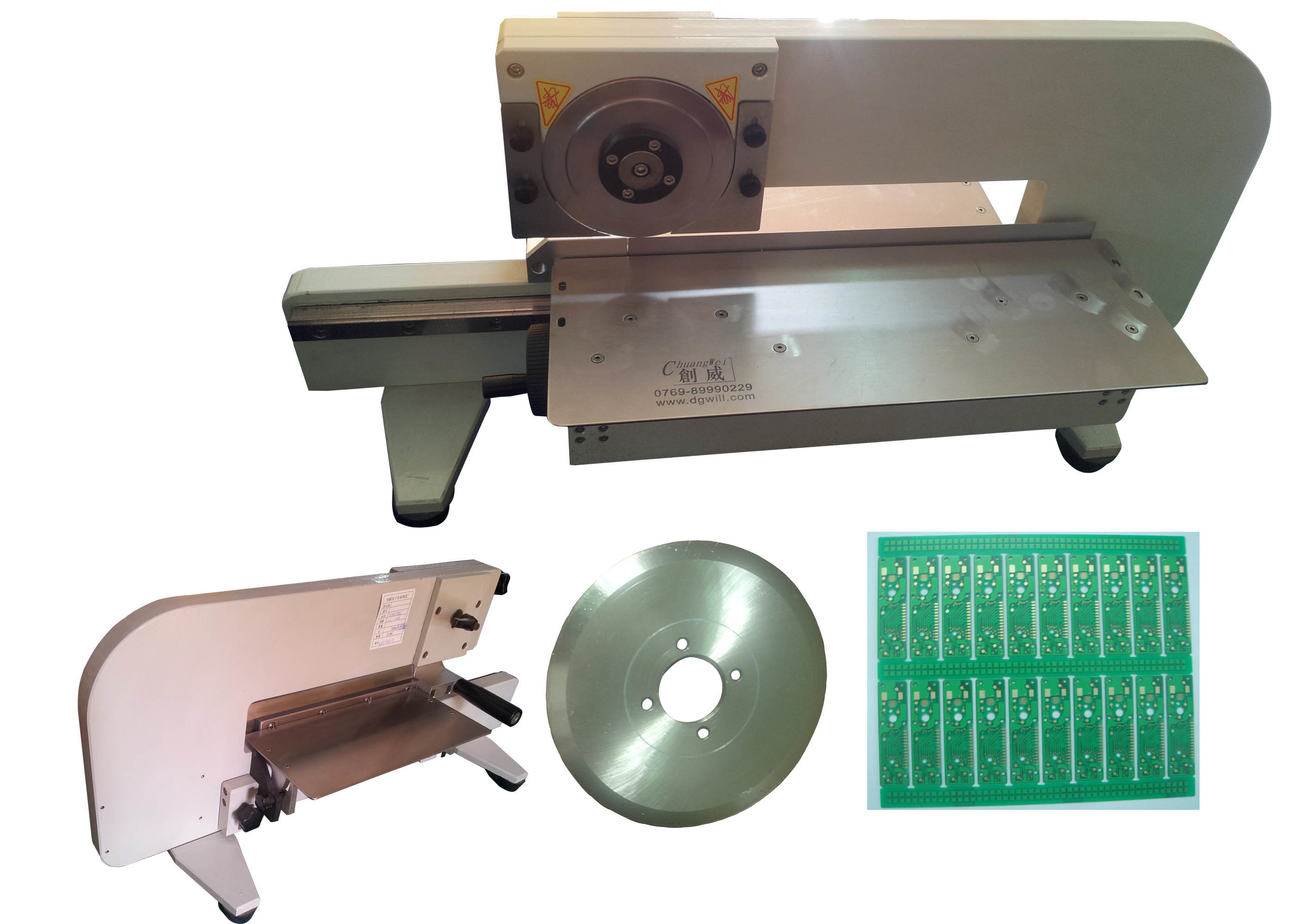

Manual PCB Electrostatic Separation Process For Printed Circuit Board
Features of PCB separation :
1. The separator machines were designed to separate pre-scored panelboards carefully, without bending or tension stress. Even sensitive SMD components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely.
2. No vibration during the process to prevent damage to precise PCB
3. Gap for insertion of the board can simply be adjusted by means of the adjusting knob, low friction design is applied
4. Lower knife height-adjustable, nothin plates are required after re-sharpening the cutting blade
5. Operation and maintenance can be done also by unskilled personnel.
Specifications for PCB separation :
| MAX.PCB cutting length | 330m |
| PCB separation machine size | 720*310*330 mm |
| PCB cutting length | 0.3-3.5 mm |
| Machine weight | 50 kg |
