PCB Separation V Cut PCB Depaneling For LED Lighting Production Line
Specification for PCB cutting machine
| Model | SMTfly-1SJ |
| Max cutting length | unlimited |
| platform length | 1.2 / 2.4 m can be according to customer's requirement |
| PCB cutting machine size | 420 X 280 X 400mm |
| Cutting speed | 0 - 400 mm /s |
| cutting thickness | 1.0-3.5mm |
Describe :

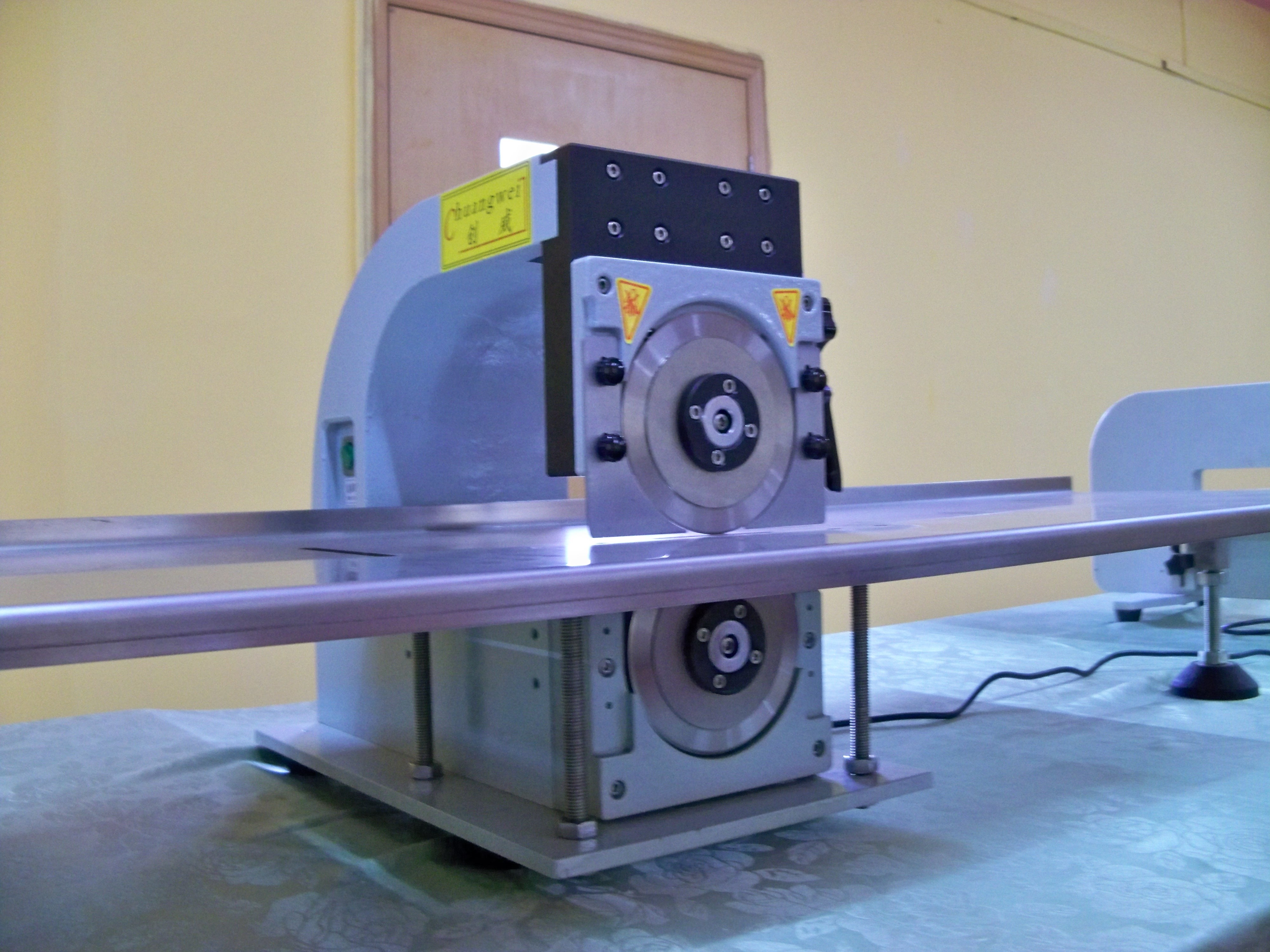

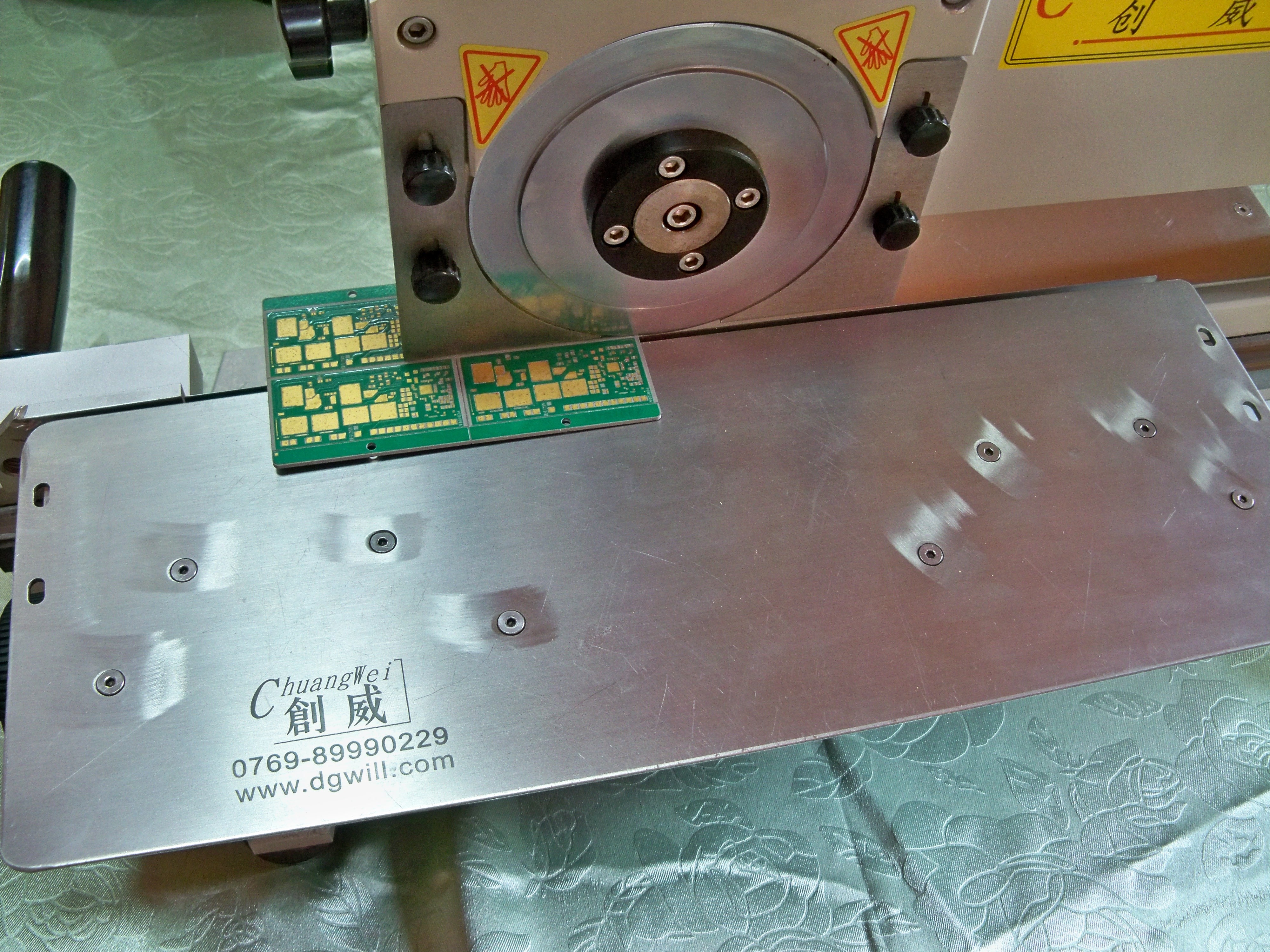

This machine uses multiple cutting method , circuit board cut done by six pieces of circular knife , fluctuation two pieces for a set , constitute a cutting unit , totally three groups . The whole cutting process is divided into three phases , the first set of blade cutting the 40% of the circuit board , then the second one to complete the 40% . The last set of blade separates the products , to finish the work. As each cutting quantity is small , so the cutting process of the stress than the traditional way of a cut, reduced more than 80% , the circuit board split well its edge is flat and smooth , the board is flat .
Features :
|
1 |
The length of the PCB Board can be Unlimited |
|
2 |
Using the Taiwan tungsten high-speed steel, the blade durability is higher, the blade life can reach one year when split the aluminum substrate. |
|
3 |
The up and down blade can be adjusted accurately |
|
4 |
As the machine uses the way of multiplicity cutting, so the cutting process is stable. The extended stainless steel platform equipped with adjustable damper, which is suitable for cutting different widths of the article lamp circuit board. |
|
5 |
Easy operate, high speed |
please note :
Round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste. However, for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board (e.g. CWVC-2L CWVC-450 CWVC-3).
