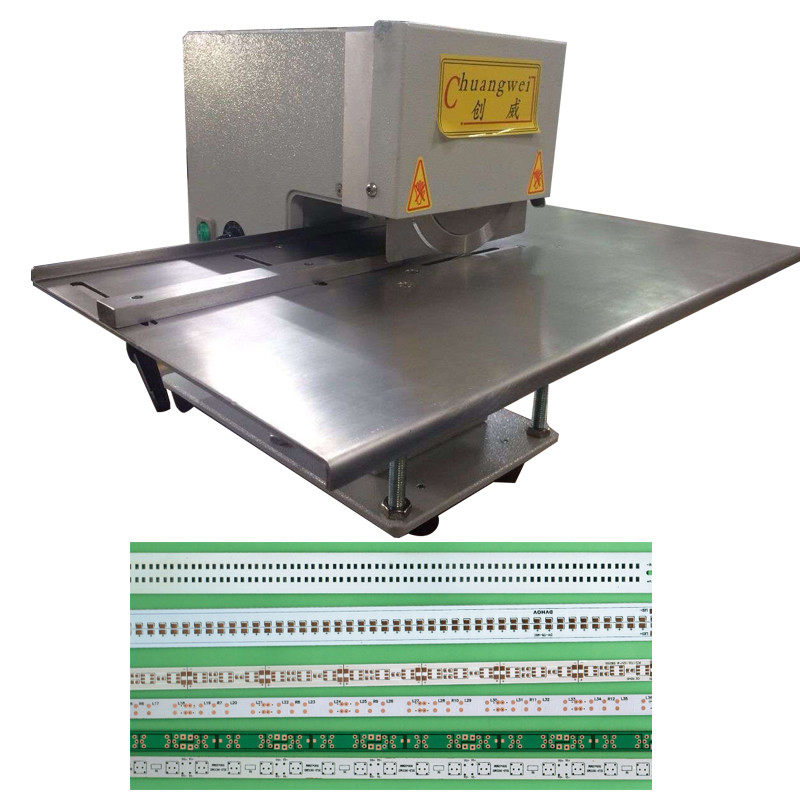

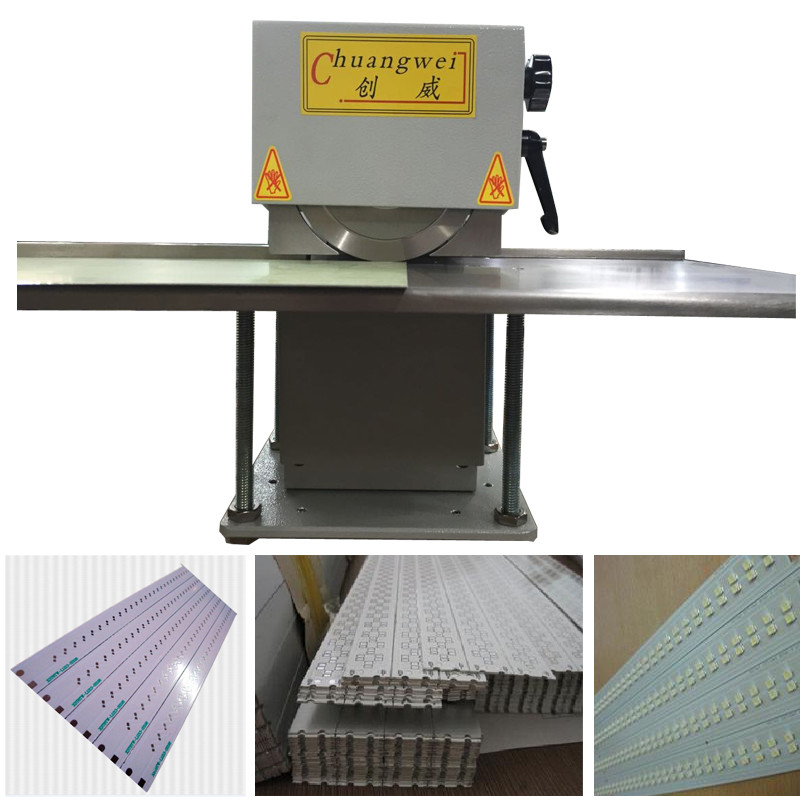

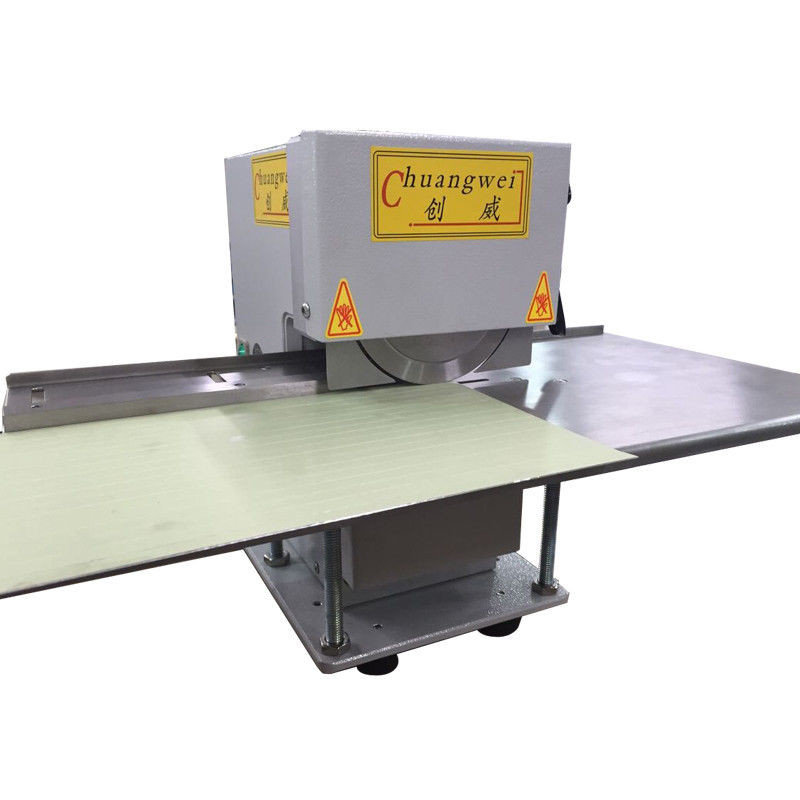

PCB Separation V Cut PCB Separator For LED T8 T5 Production Line
Specification :
| Model | SMTfly-1S |
| Machine size | 420 mm X 280 mm X 400 mm |
| Machine weight | 65 kg |
| Minimize thickness | 1.0-3.5 mm |
| Cutting speed | 0-400mm /s |
Applications :
The aluminium base board of 1.0mm-3.5mm thickness, about the special type plate,
please leave a message to the email sales@dgwill.com
Features :
1. No limits to cutting length
2. the cutting speed is adjustable and controlled by hand
3. Small cutting press to avoid solder crack
4. the distance between upper and lower knives can be adjusted according to the thickness of boards.
5. the cutting tool is made of Japan high speed steel by Taiwan professional manufacturer .
6. the surface of the machine sprayed by white powder , hard to fall off .
7. All pcbs with v-cut can be separated by this machine .
