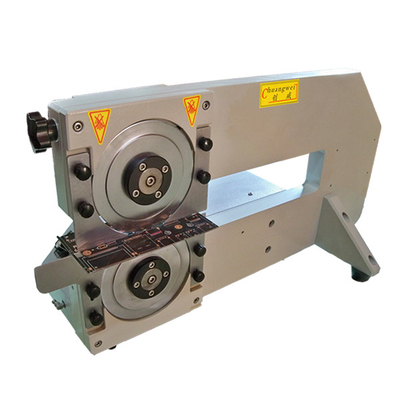

Custom Circlce Blades PCB Separation 330mm Aluminium Base board
Pcb separation sepcification :
| Model | SMTfly-1 |
| Machine Size | 420 x 280 x 400 mm |
| Cutting speed | 0-400 mm / s |
| Minimize thickness : | 1.0-3.5 mm |
| Machine weight | 70 kg |
Suitable for cutting:
Cutting the aluminium base board of 1.0-3.5 mm thickness
safe pcba separator for led strips , aluminum base board , fr4 , fiber glass etc.
Feautures of pcb separation :
1. Thus the edge of the board and its surface are very smooth without warping .
2. because of the multiple cutting, cutting process is very smooth and greatly improves the capability of position of V-CUT groove .
3. All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument . Ensure that the latter knife can accurately continue to cut in the slots which already cut by the former knife . the jitter of knife point is less than 0.02mm . Ensure perfect cutting quality .
4. Can be adjusted the above and below round knife precisely
5. Circular knife can turn mill reoccupy many times, the shape of cutter can be customized .
6. X , Y axis can free adjustment and make the cutting accuracy to the highest .
