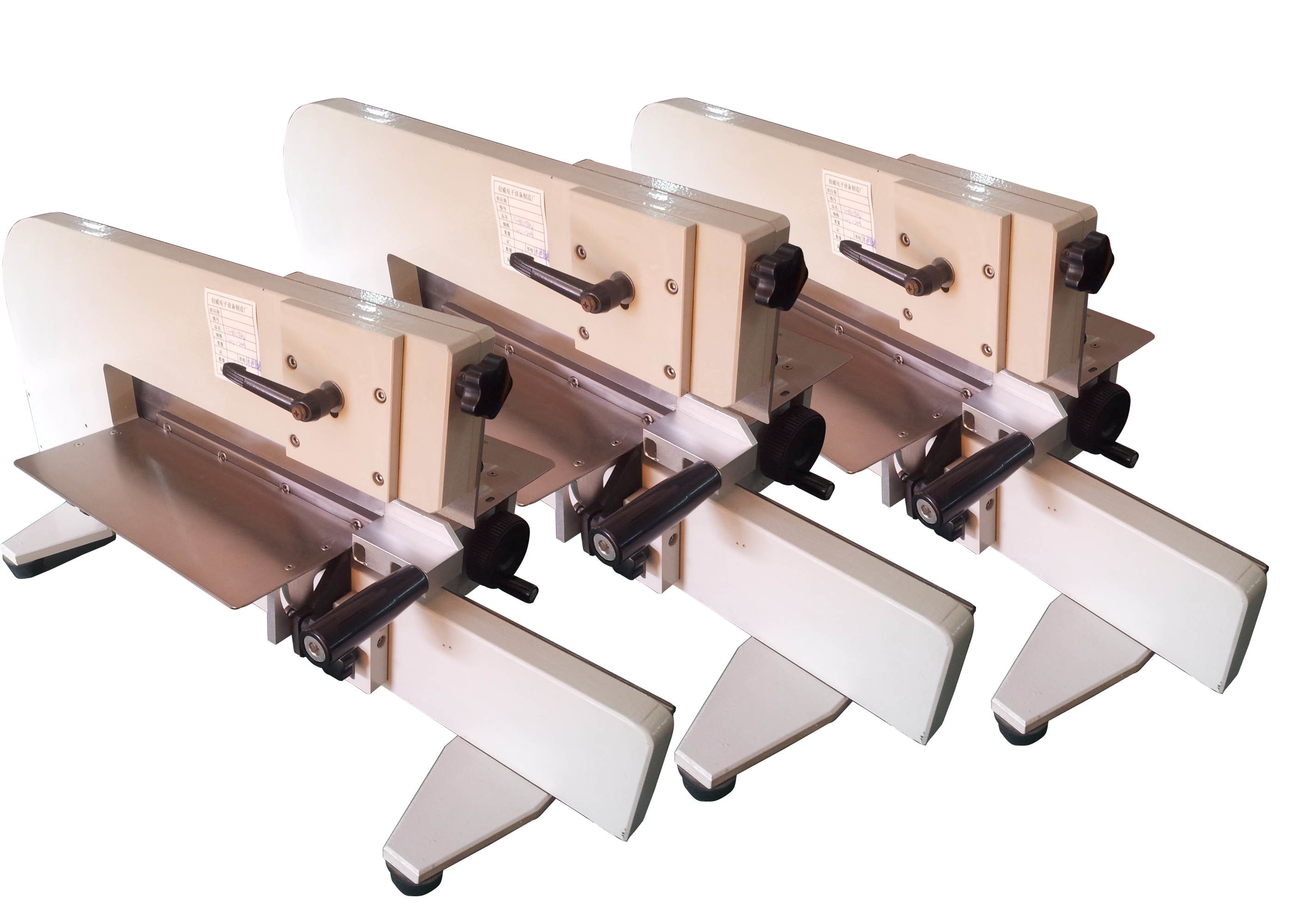

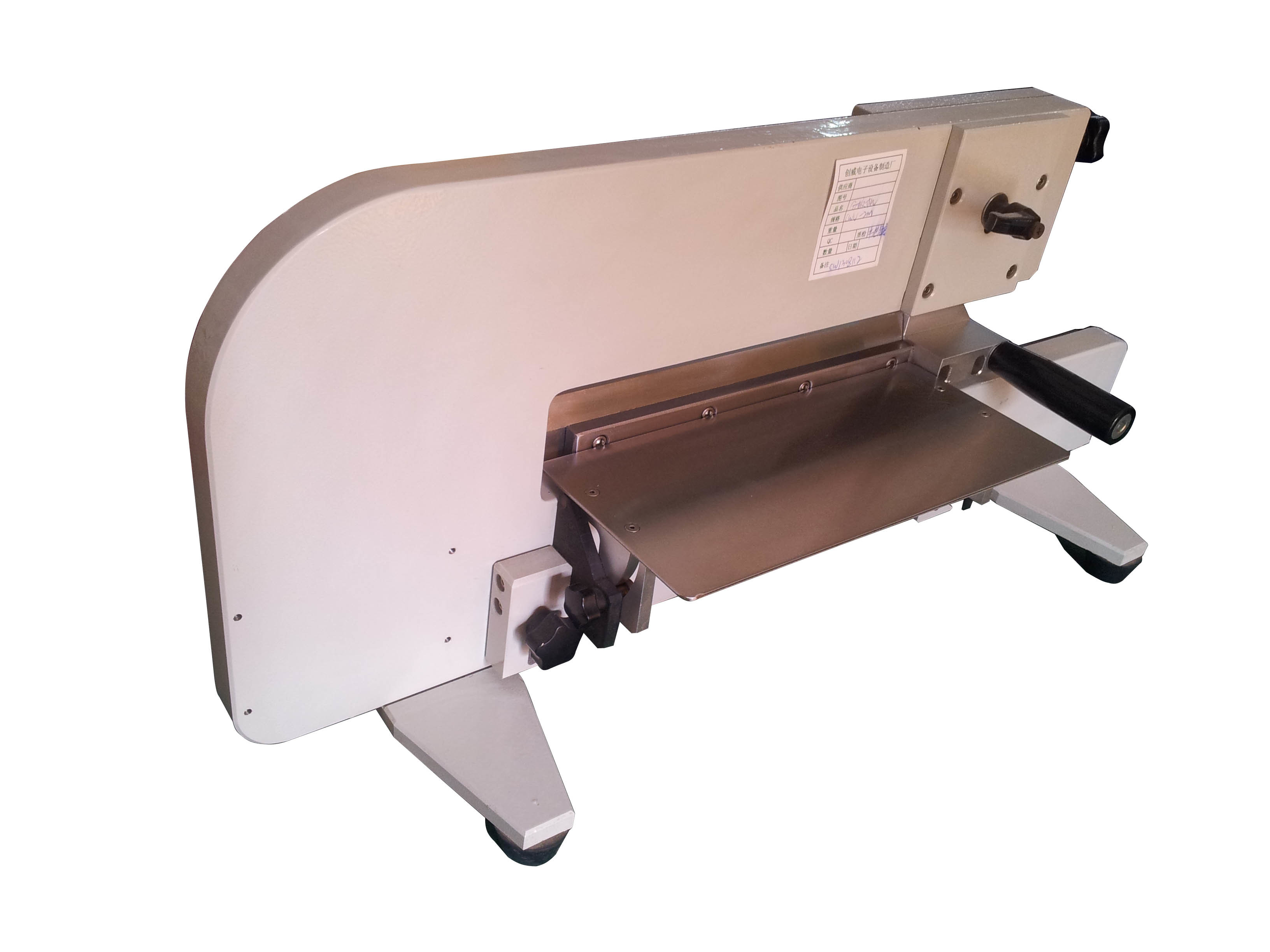

Manual PCB Separators V-cutting Machine without Power Supply
1. PCB cutting process by hand push
2. Safety use and easy operation
3. The price is very economical
4. Cutting speed is controlled by operator
Our Advantages:
1. 13 Years experience on manufacturing and selling
2. Engineers available to service machinery oversea
3. One year warranty for the machines except accessories
4. Effective customer service
Specification:
| Max PCB Length | 330mm |
| Size(L×W×H) | 720*310*330mm |
| PCB Thickness | 0.6-3.0mm |
| Weight | 50kg |
V-CUT PCB cutting machine features:

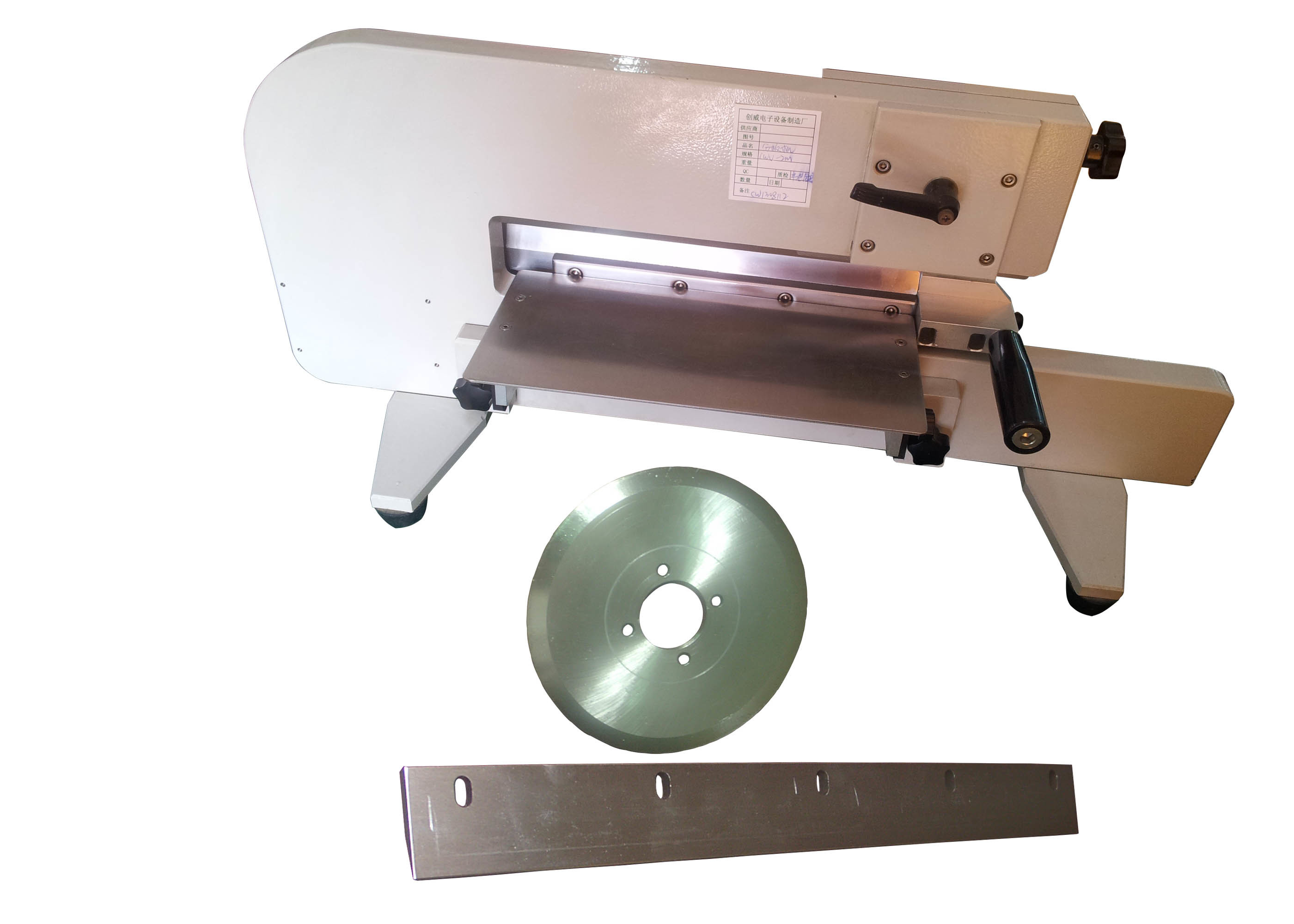

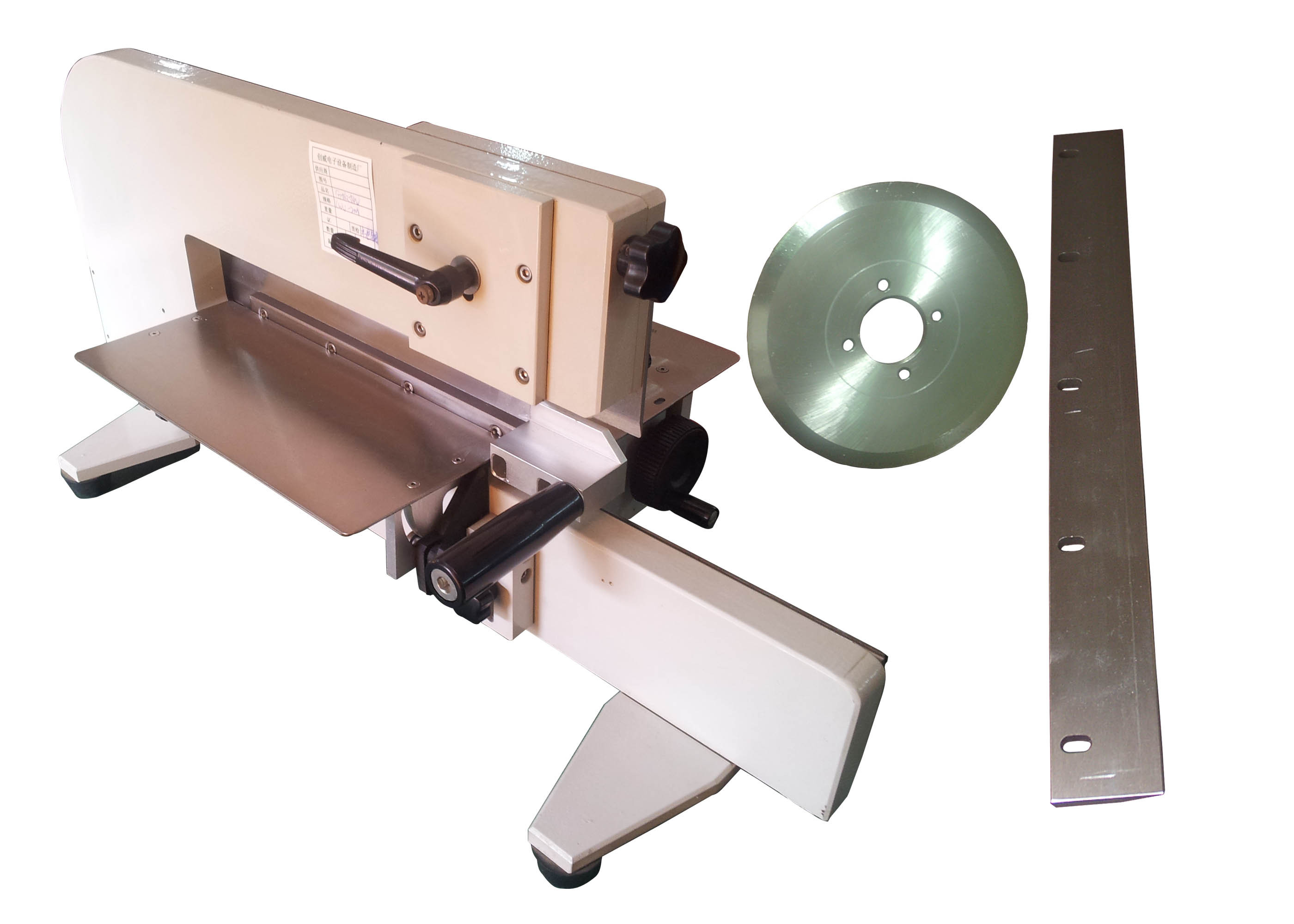

1. Use upper circular blade and the bottom linear blade.
2. Cut pre-scored v-groove PCB without stress on either PCB or component.
3. Clearance between circular and linear blades is adjustable to fit different groove depths and compensates for blade wear out.
4. Blades can be re-grinded to use.
