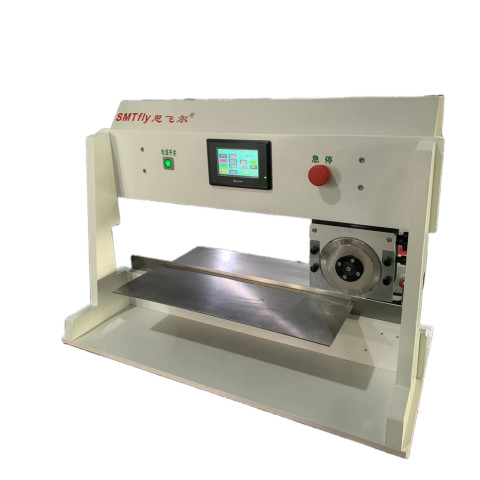

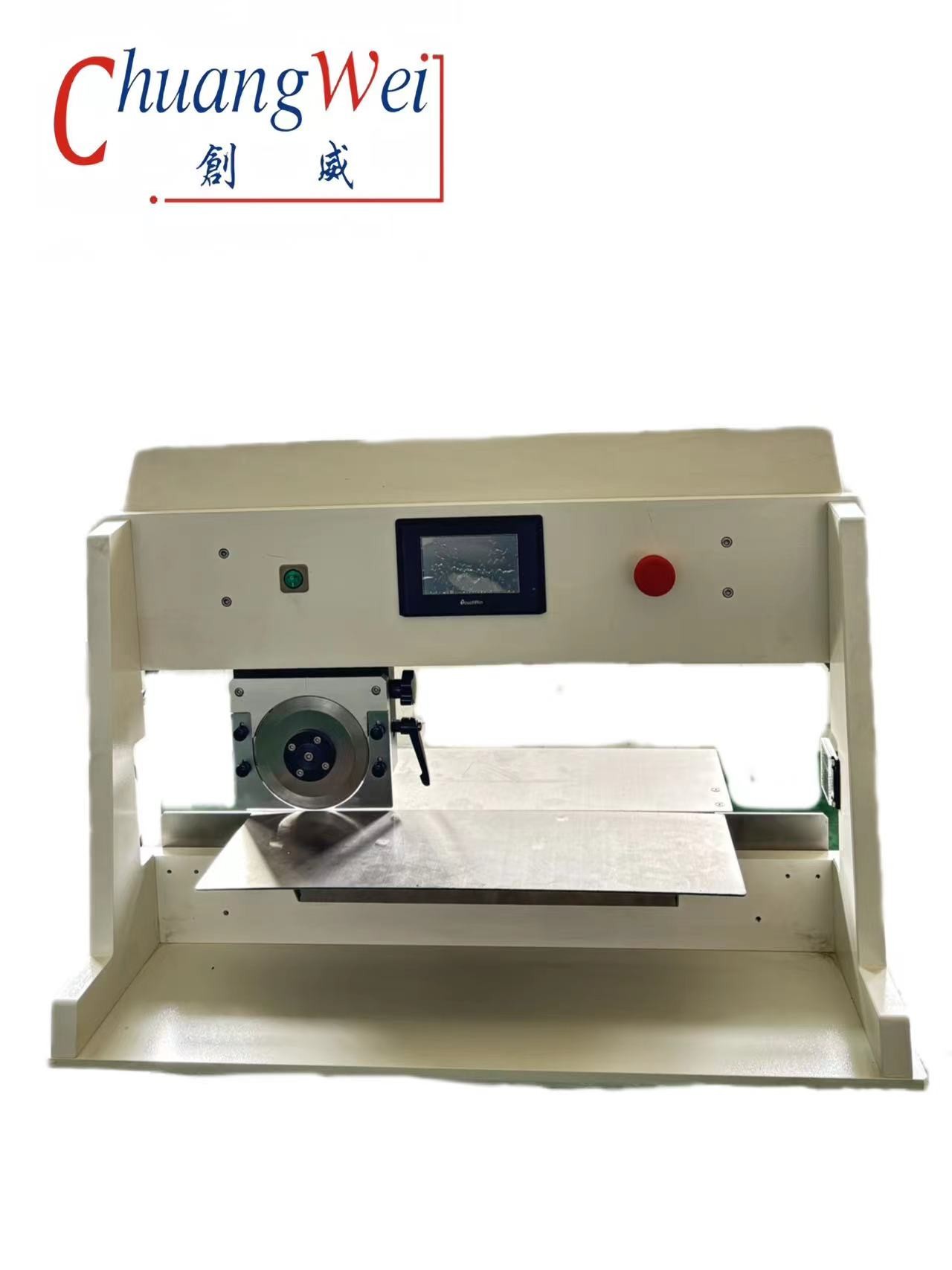

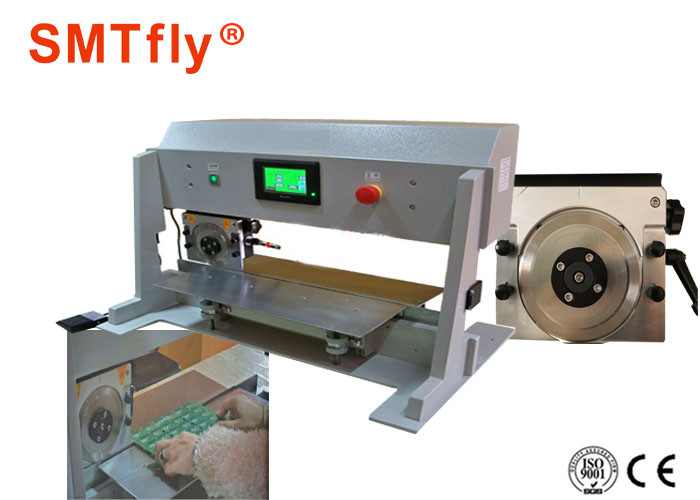

Unloading PCB Separator Machine with LCD Display,PCB Separator
| Model | YS-805B |
| Voltage | 220 V / 110V |
| Power | 250W |
| Max cutting length | 630mm |
| Board thickness | from 0.2 to 3.2mm |
| V-cut thickness | from 0.2 to 2mm |
| Weight | 70KG |
| Size | L940xW550xH460mm |
| Speed | 300mm/s or 500mm/s |
| Warranty | 3 years |
1. Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s;
2. Cut continuouslwithout interrution durinloadinand y p g g
unloading;
3. High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision;
4. Available board thickness: 0-3.2mm . V-groove thickness:0-2mm;
5. Pre-set the cutting start and end point to well control the cutting length;
6. The blades are sharp and indurable. And they can be sharpened between 7 and 10 times;
7. Minimize the shearing stress to avoid micro-cracks of the solder joints;
Packaging Details: Wooden case
Port : Shenzhen
Lead Time : 1-2 days after getting your payment
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them.
It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.
Available PCB thickness: from 0.2mm to 3.2 mm
Available V-cut thickness: from 0.2mm to 2.0mm
Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.
ChuangWei Electronic Equipment Manufactory
For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
Any question. We are happy to help!
Contact below and we'll promptly get back with you.
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Whatsapp(Donna): +86 15273473462
