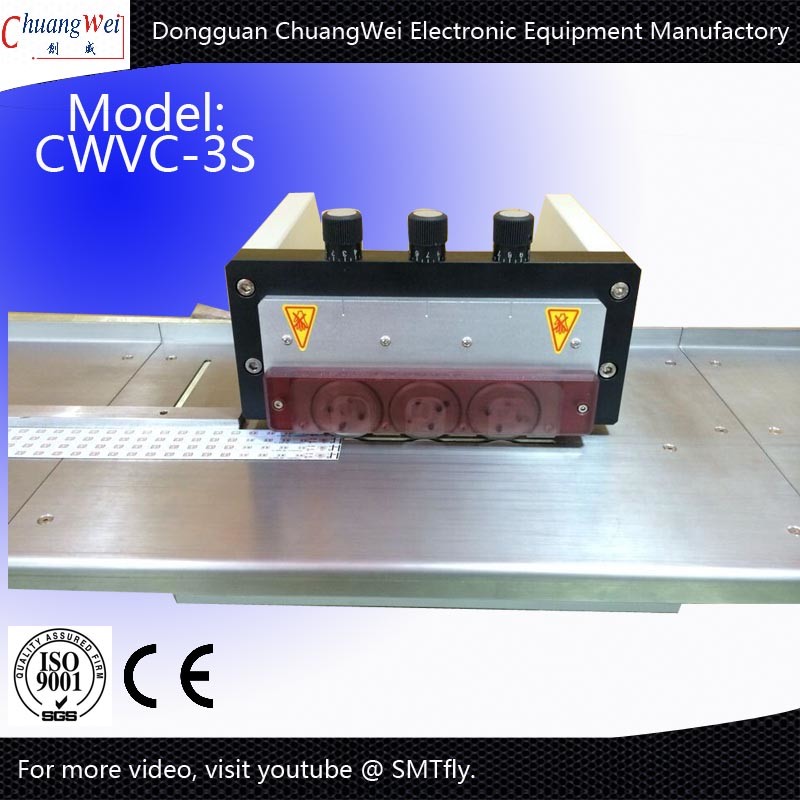

Desktop V-Groove 330×580mm PCB Depanelizer,PCB Separator

Separate board V Groove PCB Depanelizer Customized Desktop Long Service Life 1 year warranty


1. Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s

2. Cut continuouslwithout interrution durinloadinand y p g g
unloading

3. High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision

4. Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft

5. Use high-quality hardware to ensure high rigidity and high performance


Packaging Details:      Wooden case
Port                      :      Shenzhen
Lead Time            :       1-2 days after getting your payment





Model: CWVC-3

Power supply: 220V/110V 50HZ/60HZ, 250W

Blade length: 430mm

PCB thickness: 0.2-3.2mm

Size: L740 * W550 * H460mm

Weight: 60KG

Package: Wooden case


It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.

Available PCB thickness: from 0.2mm to 3.2 mm

Available V-cut thickness: from 0.2mm to 2.0mm

Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.



ChuangWei Electronic Equipment Manufactory

For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.






Thank you for interesting in our machines and service.
Contact below and we'll promptly get back with you.

More information welcome to contact us:

Email: sales@dgwill.com
