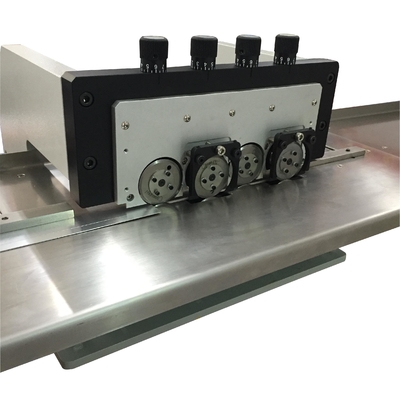

PCB Depanelizer V Cut PCB Separator For MCPCB Strip Panel LED Lighting Factory
Feature:
1. Guide can be adjusted vertically to suit different LED board.

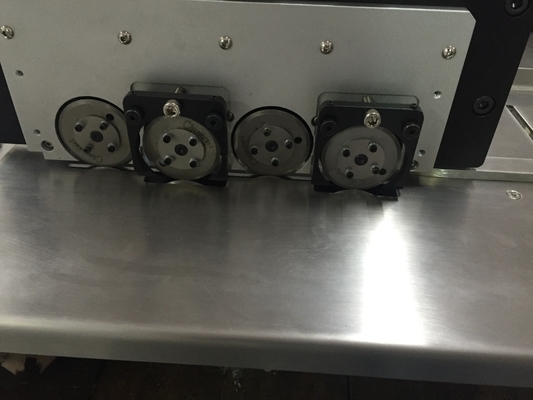

2. Clearance between the circular blades can be precisely
adjusted by the knob
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to customer's specifications .
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect
7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)
Specification :
Max PCB width: 12mm
Platform : 1.5 M /2.4 M length
Machine Size : 40*40*34 cm
The Longest Minimize : No limited
Minimize Speed : 0-520mm/s
Minimize thickness : 1.0-3.5mm
Machine Weight : 70Kg
CE Approval
