Four Optional Speed Pcb Depaneling With Safe Sensor SMTfly -1A460
Features :
1 . Board with projected component can be cut precisely
2 . One touch programming of cut length with digital display
3 . Separating speed is adjusted by a rotary knob
4 . Handle Intermittent scoring or cut-outs
5 . Separate v-cut PCB assembly without stress on either PCB or component
6 . Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
8 . Optional PCB conveyor belt to remove the finished board
Technical parameters :
| Model | SMTfly-1A |
| Max. PCB singulation length | 460 ( on request custom made ) |
| PCB singulation thickness | 0.6 -3.5 mm |
| PCB singulation feed rate | 100, 200, 300, 500 mm/sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110 / 220 v |
| PCB singulation machine size | 770 * 510 * 450 mm |
| PCB singulation machine weight | 55 kg |

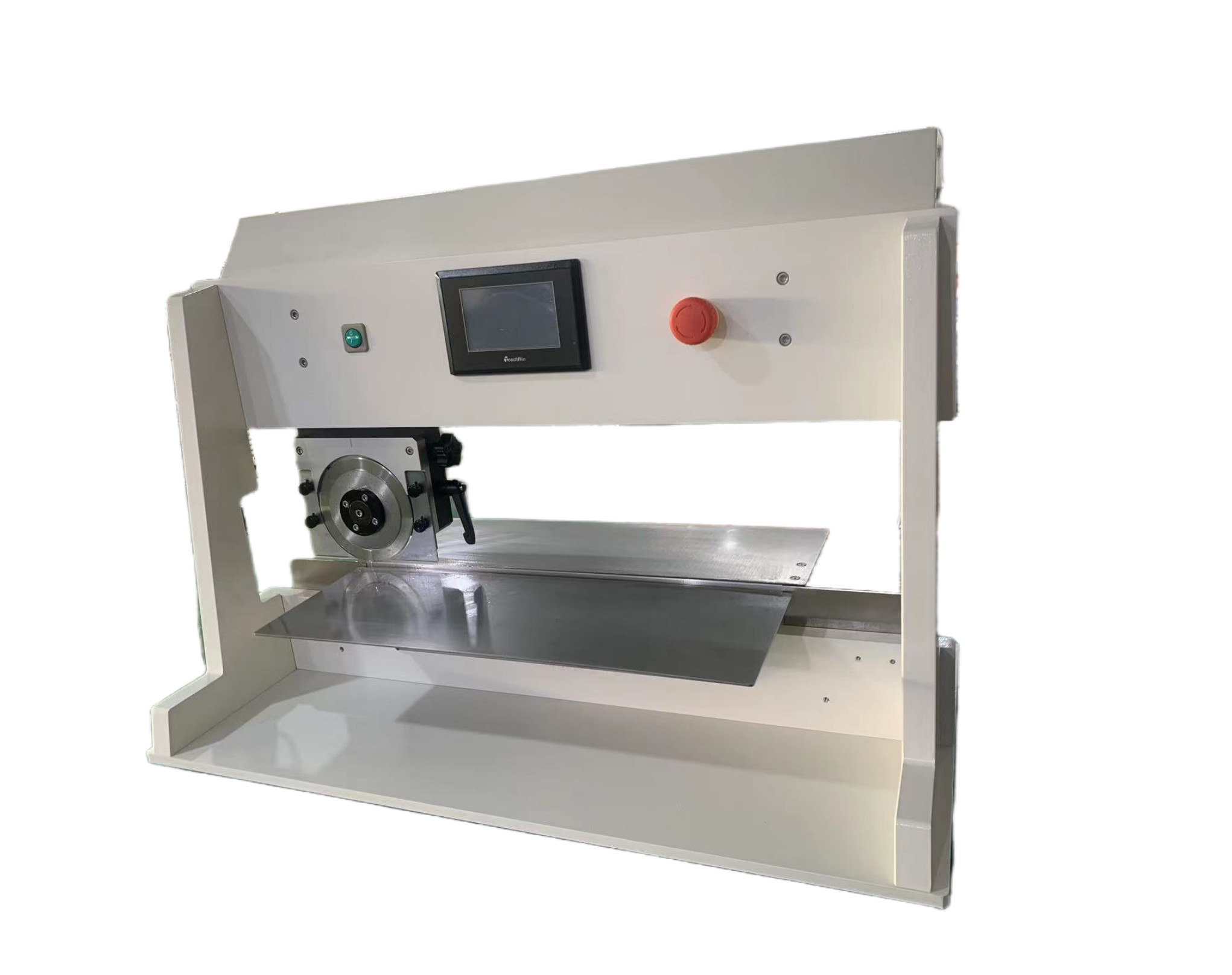

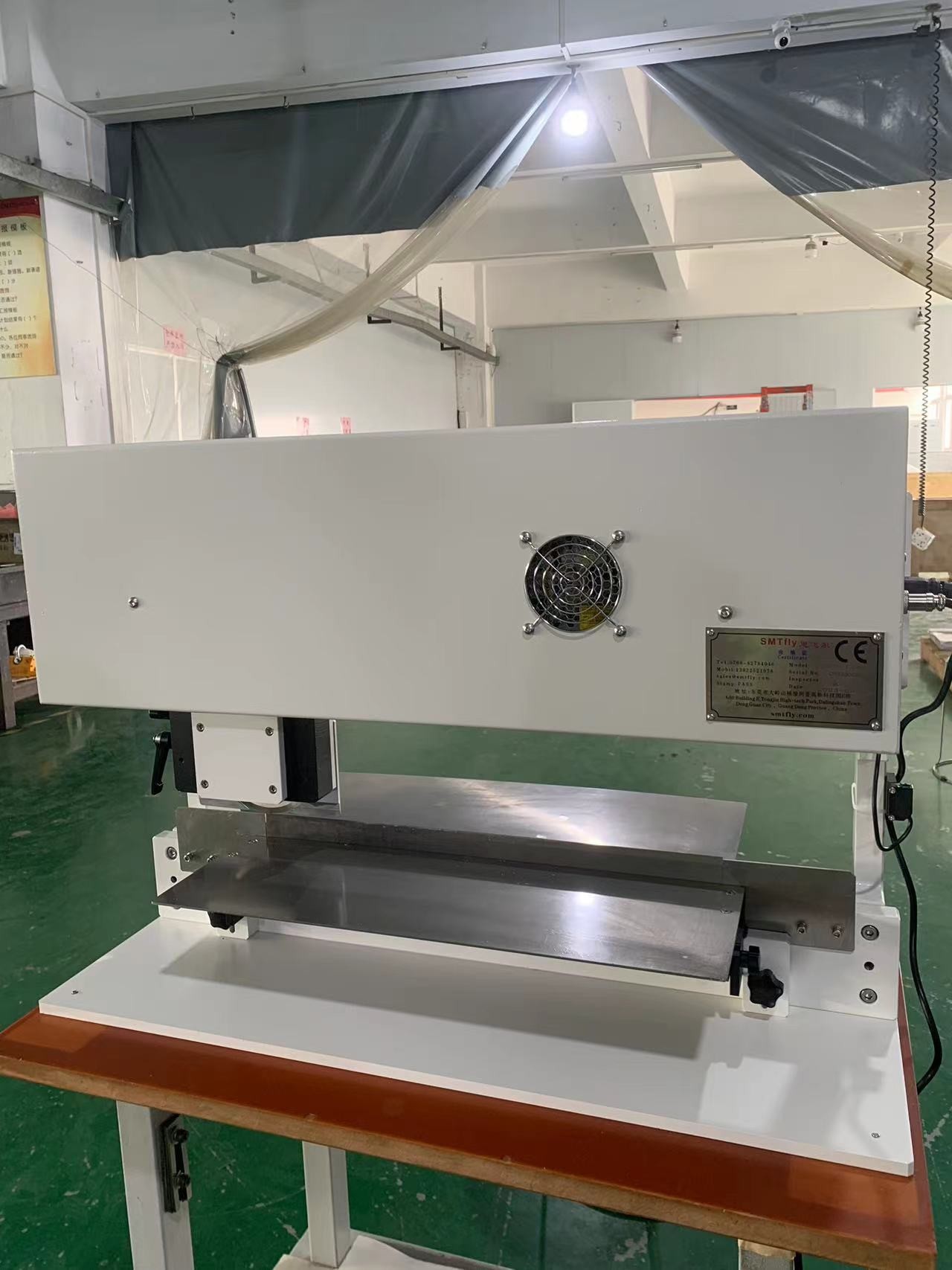

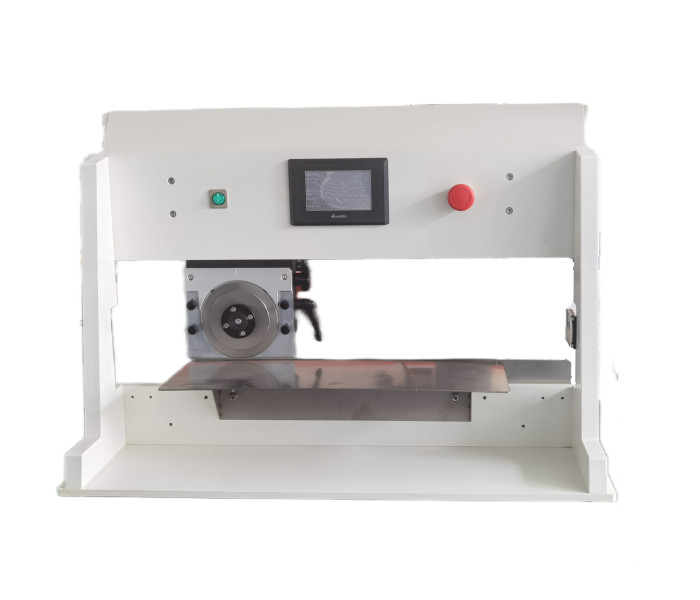

Pictures :
