PCB Depanelizer V Cut PCB Separator,V Groove PCB Depaneling for PCBA
Specification for pcb cutting machine
| Model | CWVC-1S |
| Max cutting length | unlimited |
| platform length | 1.2 / 2.4 m can be according to sustomer's requirement |
| PCB cutting machine size | 420 X 280 X 400mm |
| Cutting speed | 0 - 400 mm /s |
| cutting thickness | 1.0-3.5mm |
Describe:

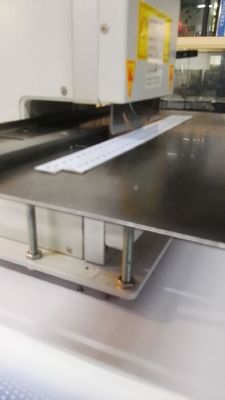

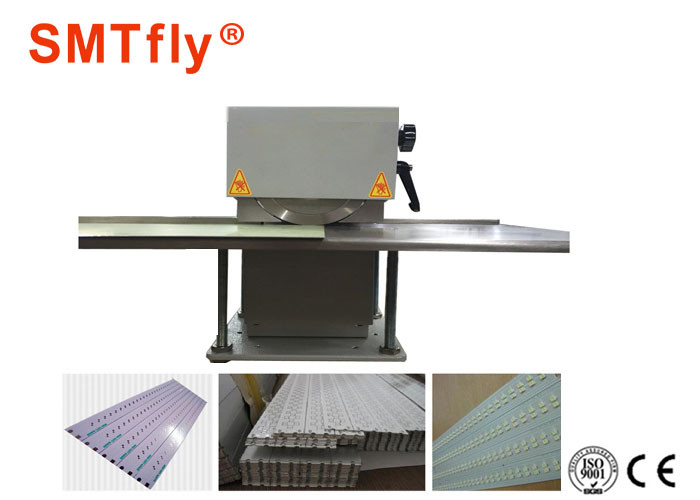

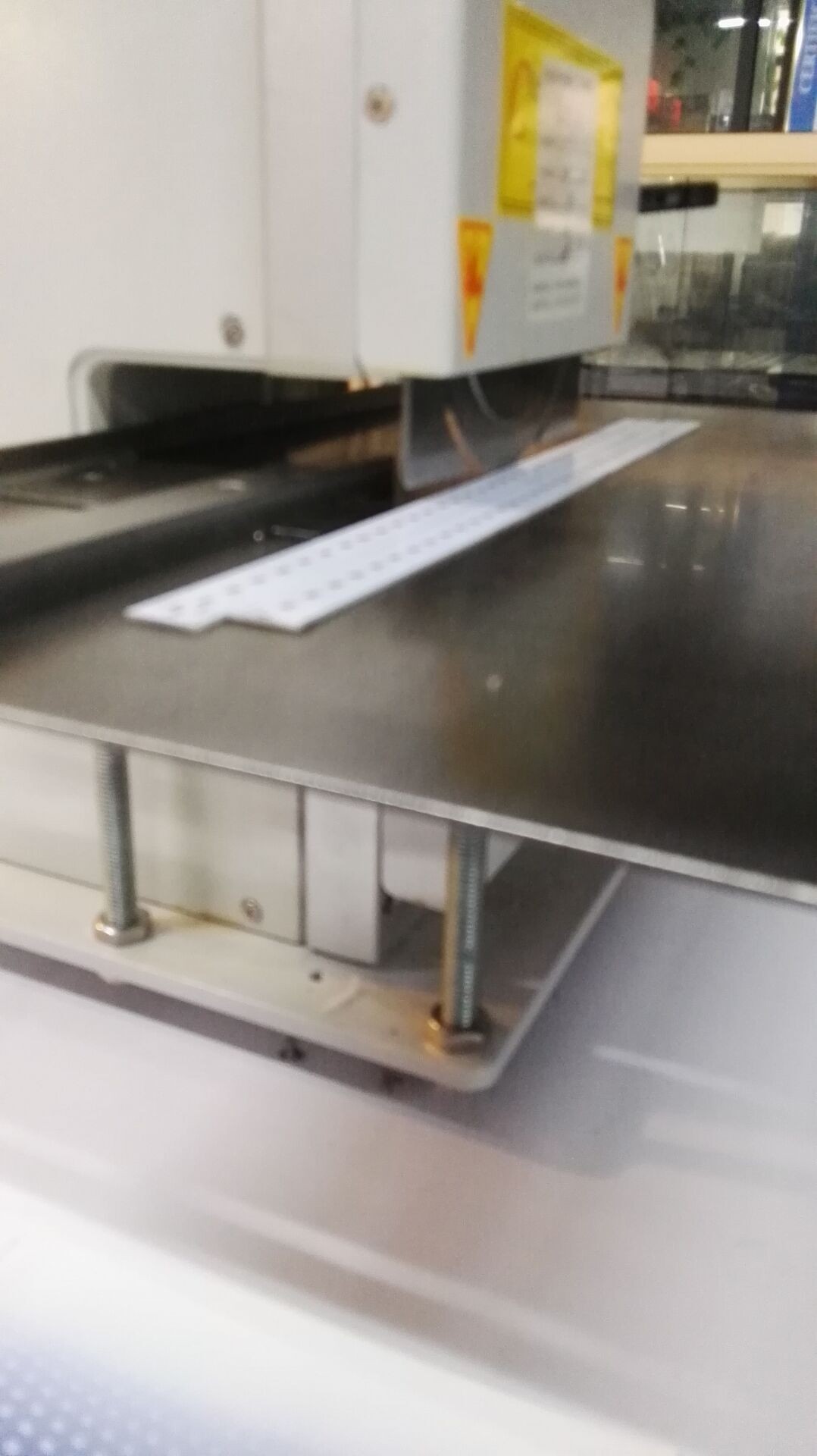

SMTfly-1S separates small amounts and prototype series of PCBs fast and economically . The circular blades and guides made out of special steel ensure a long durability . The compact and stable aluminium frame requires only a minimum of space . The PCB is shoved manually between the circular blades and is thereby separate
Features :
1 . Guide can be adjusted vertically to suit different PCB thickness
2 . Clearance between the circular blades can be precisely
adjusted with the knob
3 . upper and lower circular blades can be re-used after regrinding
4 . Shape and sizes of the circular blades can be made according to customer's specifications
please note:
Round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste. However, for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board
