CE Appreoved Pcb Depanelizer Operated high speed steel With Hands
CE Appreoved Pcb Depanelizer Operated By Hands

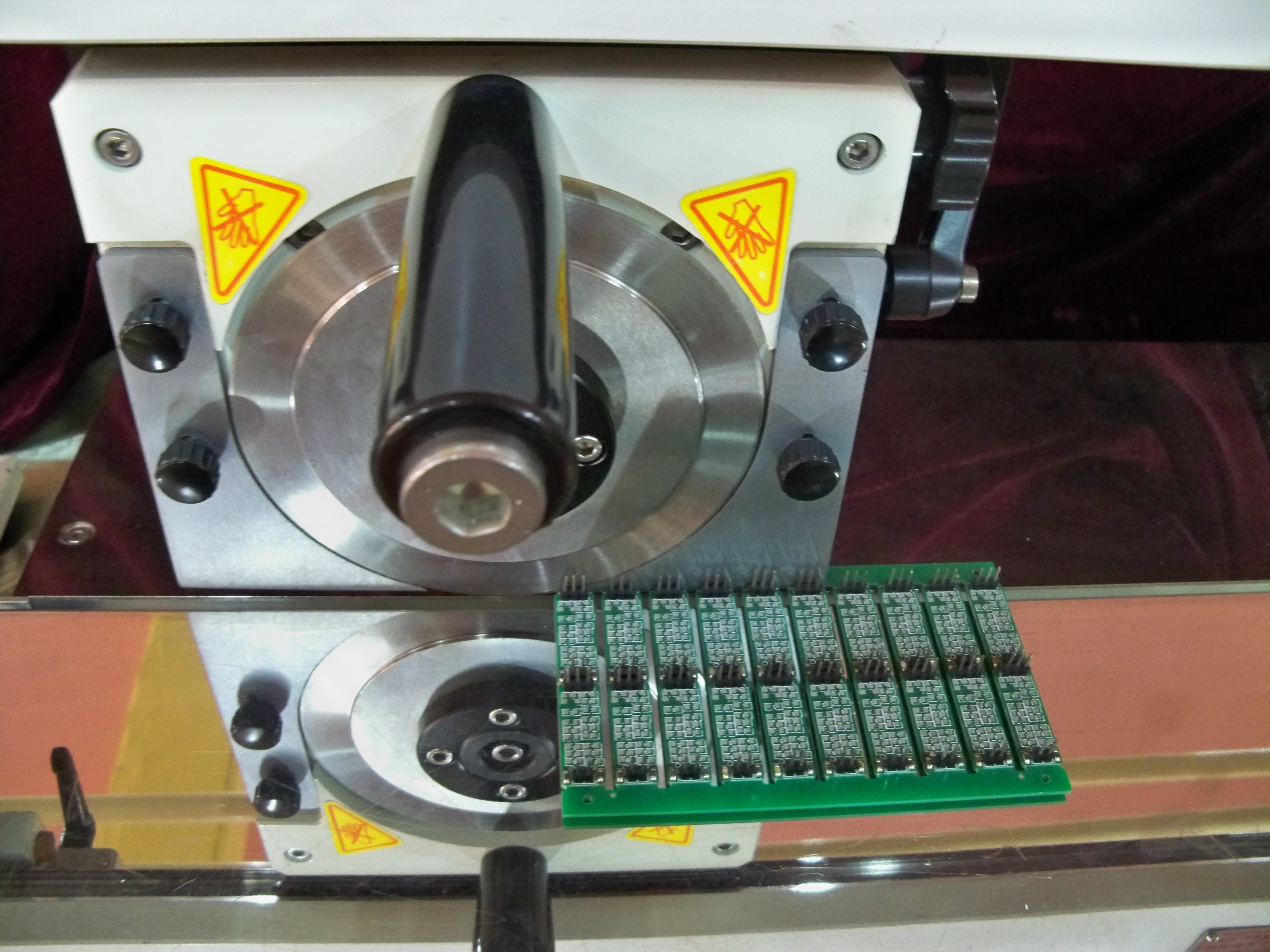

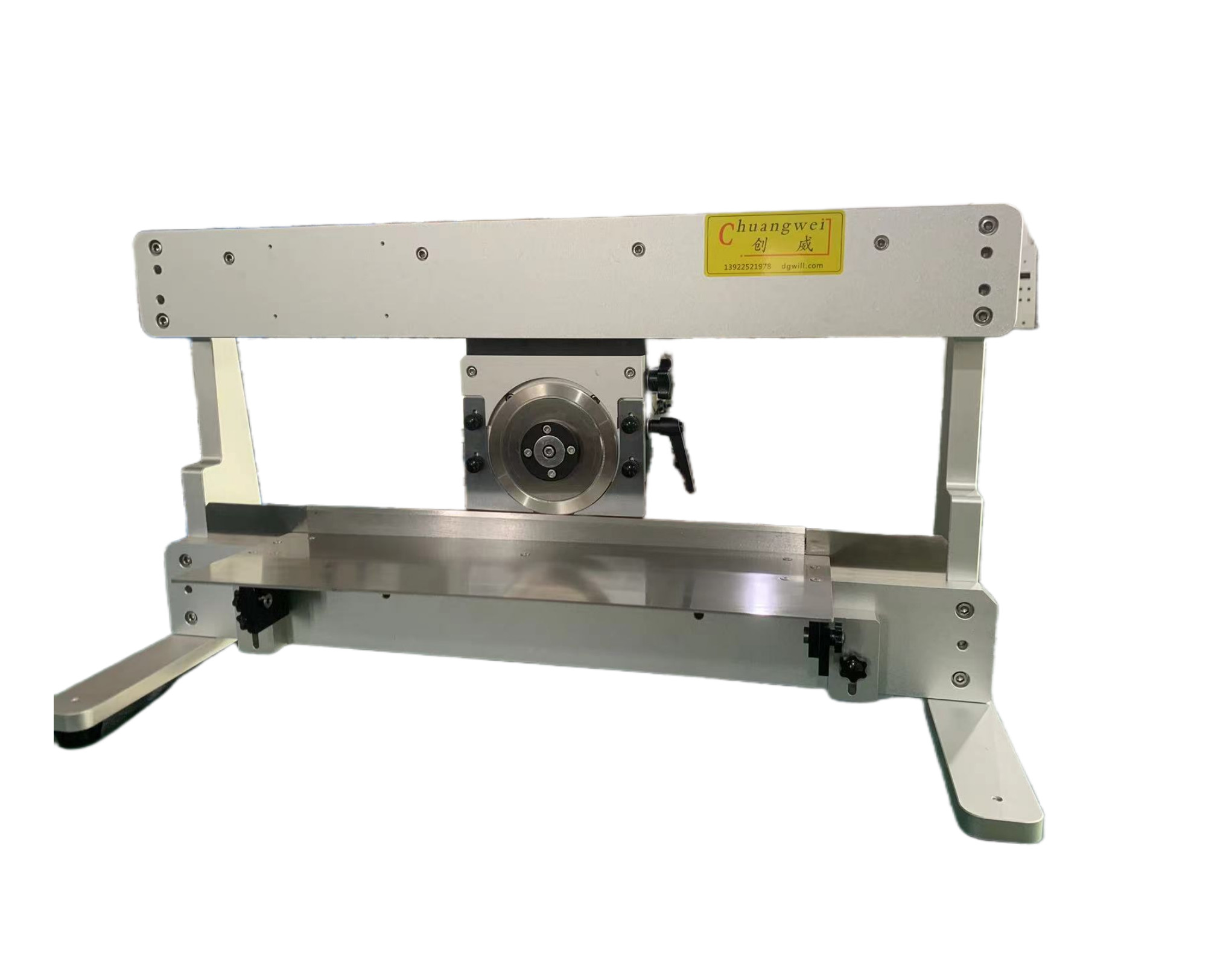

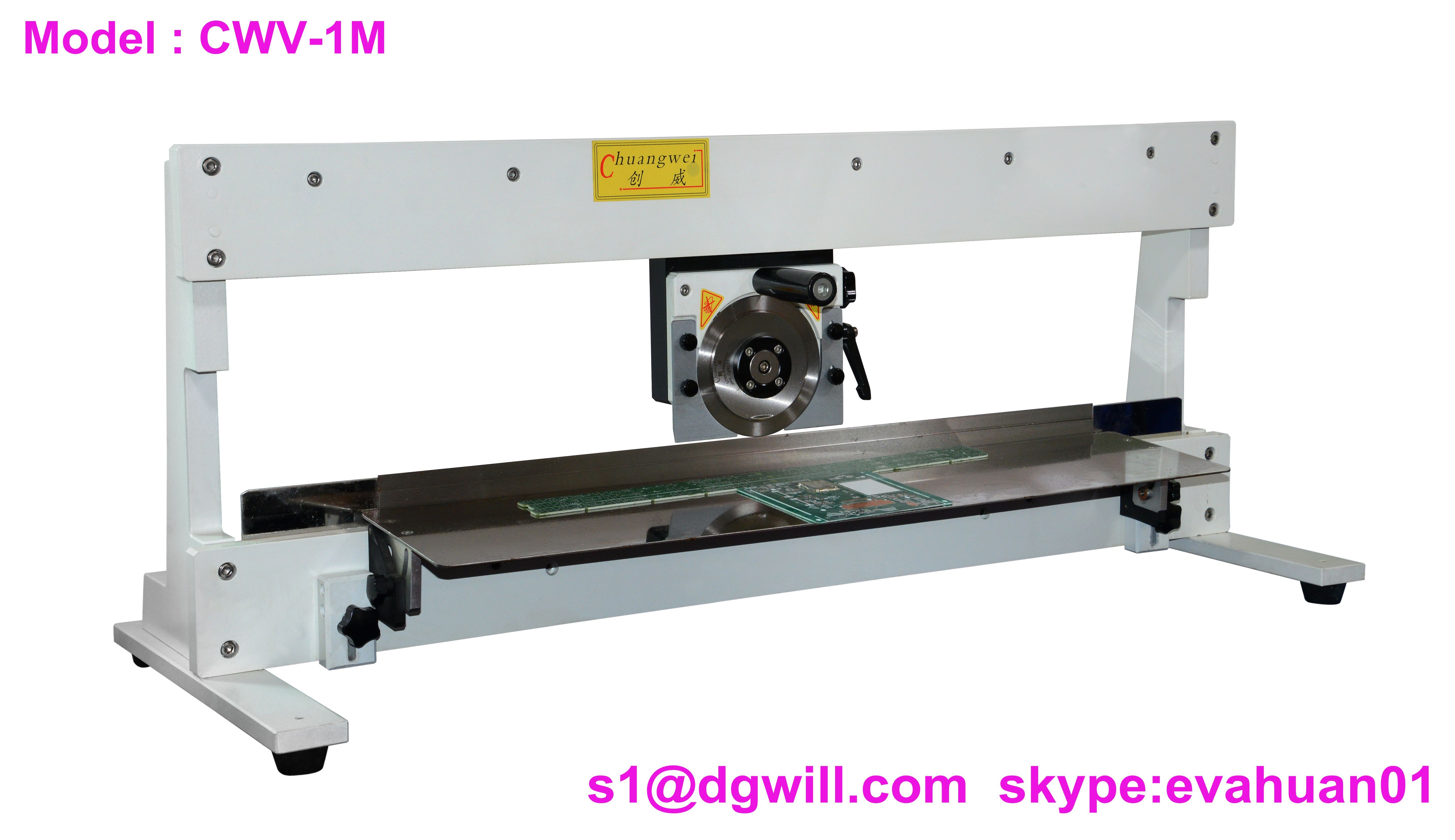

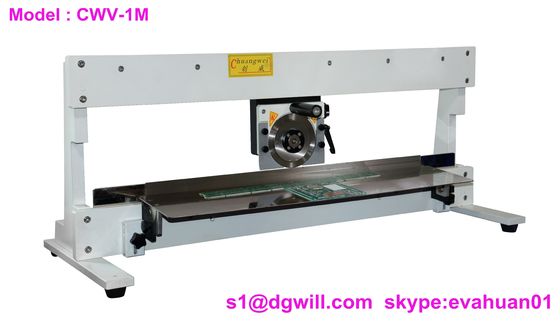

CWV-1M separates both small and large pre-scored PCBs . The table and the rest can be continuously adjusted to the most suitable working position . The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out. The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB . The distance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove . The pre-scored grooves can be interrupted by any number of cutouts . If components project above the groove , the linear blade needs to be omited . In such a case , please contact us .
CWV-1M PCB Depaneler Features :
A . With no banding stress design idea to operate V-Cut PCB separated process.
B . Lay down PC board . Rotary movement blade, Separated PCB without stress.
C. Cutting process is adjustable in stage.
D . PC board separated very fast , Operated with D. C . motor without carbon brush .
E . The cutting force is stably .
F . The speed of blade is adjustable Line with the V-cut flute and apart PC board .
G . Round blade and long knife bottom side could be adjust slightly .
H . The blade and knife could be re-sharpened, Special design for odd type component across the cutting flute is available suitable for separate long and short size PC board .
I . Precision and durable mechanism .
Specifications :
|
Model: |
CWV-1M720 |
|
Size: |
1027x400x436mm |
|
The Separate Size: |
720mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
45kg |
|
Model: |
CWV-1M460 |
|
Size: |
787x400x436 mm |
|
The Separate Size: |
460mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
30Kg |
Please note :
round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste . However , for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board (e.g. CWVC-3 CWVC-2L CWVC-450 CWVC-480) .
