Hand Push PCB Depanelizer In SMT Assembly Line

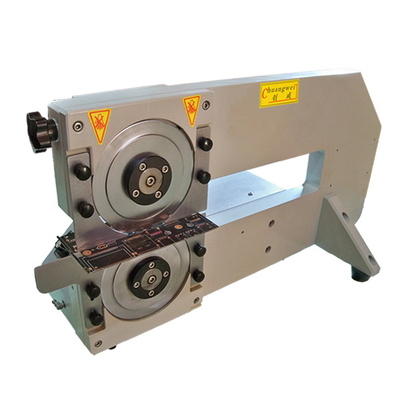

Give your products a cost-effective quality improvement bump with affordable CWVC-1 PCB depaneler
Affordable, dependable CWVC-1 PCB depaneler keeps pace with low through mid-volume production, providing reliable, burr-free separation with no stress to the boards or nearby components.
Operation is quick and easy. Simply align the scoring line with the extended lower guide. Lock the upper blade to the exact thickness of the PCB. The lower blade transports and cuts the board while the upper "coasting" blade acts as a guide to maintain proper alignment with the pre-scored groove.
CWVC-1 improves product quality over hand-separation of panels by eliminating the stress caused by "snapping" the boards apart. This stress often causes microcracks in solder joints and/or delamination of boards, both of which can lead to critical failures in testing or in the field.
Features :
1. Minimize the shearing stress to avoid micro-cracks of the solder jointsc.
2. Guiding device of the "V-CUT" of the PCBc.
3. Ball bearing slideways for easy setting of the PCB edge guides .
4. Ball bearing slideways for easy setting of the height of the tabletop .
5. Easy operating modes : Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running .
6. Cutters can be re-grinded
7. The shape of the cutter can be customer made
Package : plywooden case (free)
Specification :
Pcb Separator machine Size : 420mm x 280mm x 400 mm
The Longest Minimize : 330mm
Minimize Speed : 0-40mm/s
cutting thickness : 1.0-3.5mm
Pcb Separator Machine Weight : 70Kg
Our Advantages :
1 . CWVC-1 Pcb separator original manufacturers, price concessions
2 . Promise day technical support services
3 . Limit the handling of complaints, half an hour back to customers
4 . Experts , the provision of professional PCB sub-programme
5 . Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying .
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our missionOngoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
