LED Aluminum Pcb Machine Printed Circle Board , pcb assembly services

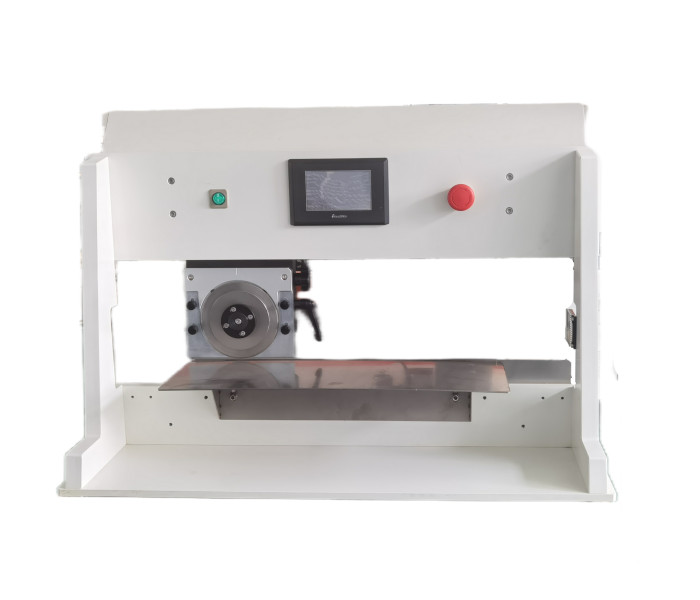

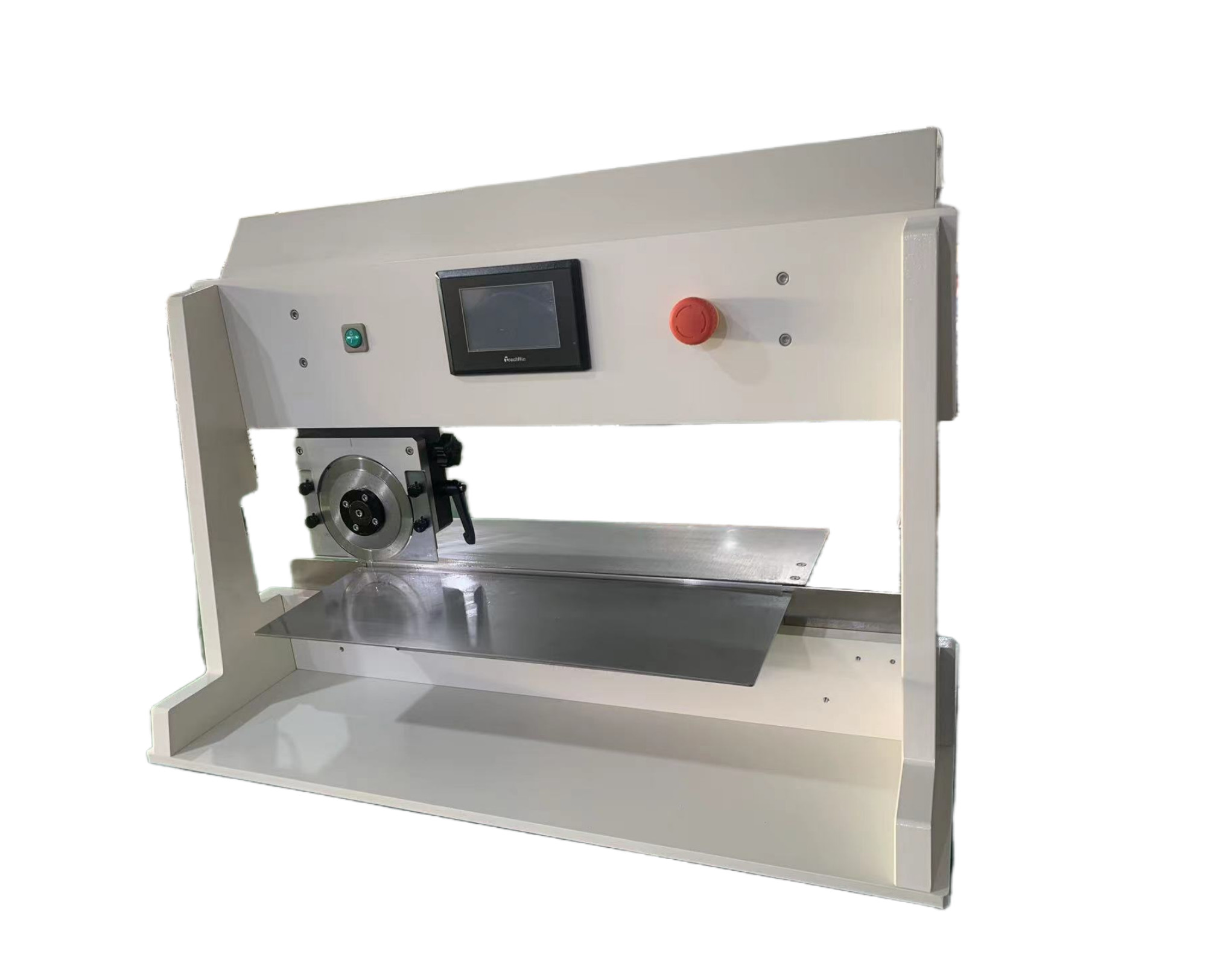

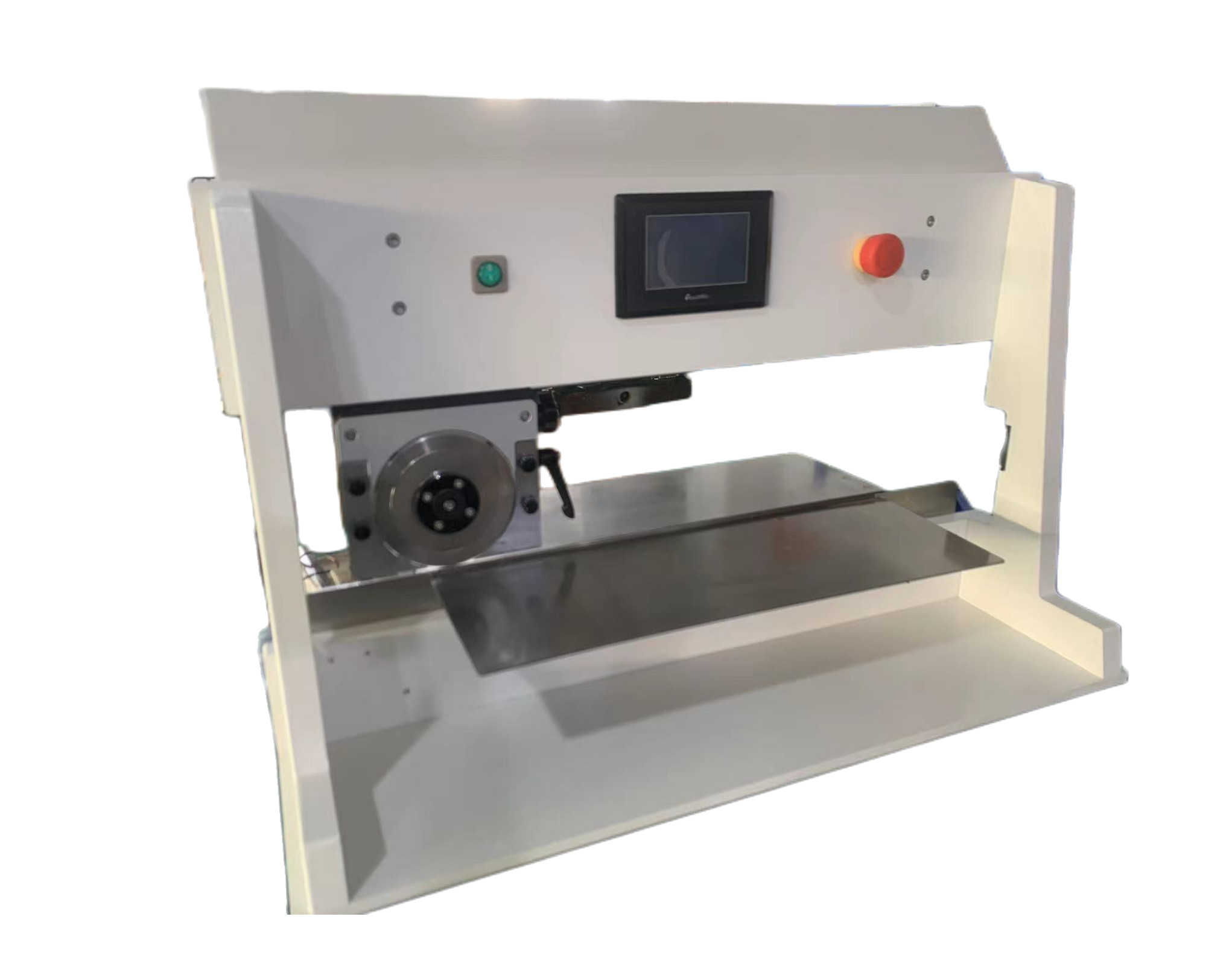

The SMTfly-1A separates both large and small PCBs quickly, economically and without stress. Cutting with only a single traverse of the pre-scored groove causes tensile and compressive stresses that can damage sensitive compoinents near the groove. Even a second traverse of the groove accompanied by an adjustment of the blade distance substantially reduces the tensile and compressive stresses. This significantly improves the quality of the populated PCBs.
The most important features :
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
PCB Separators Specifications :
| Model | SMTfly-1A |
| Max. PCB cutting length | 460 or 600 mm ( on request custom made ) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100 , 200 , 300 , 500 mm / sec |
| Blades type | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110 / 220v (according to customer requirement ) |
| PCB cutting machine size | 770 * 510 * 450 mm |
| PCB cutting machine weight | 55 kg |
