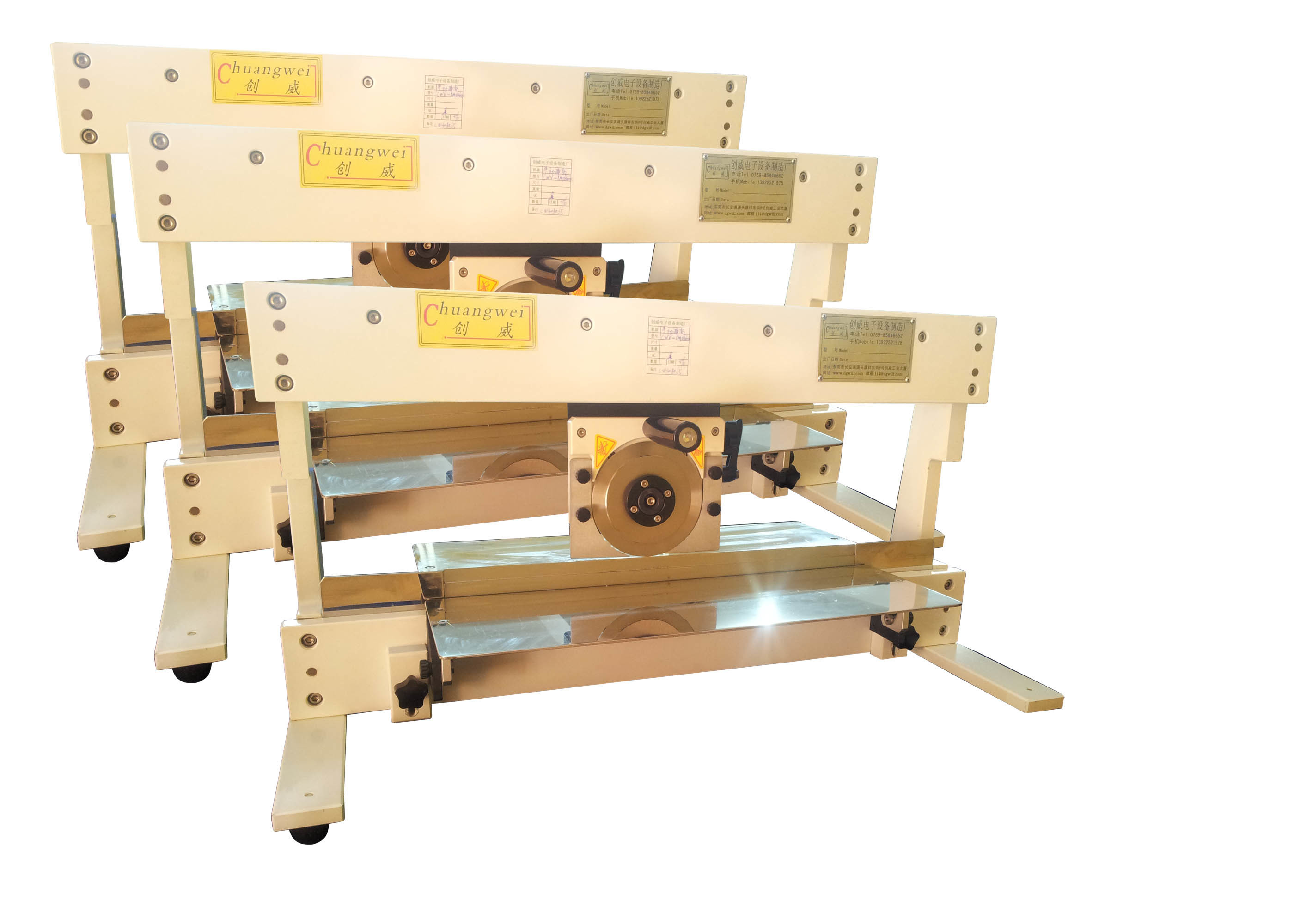

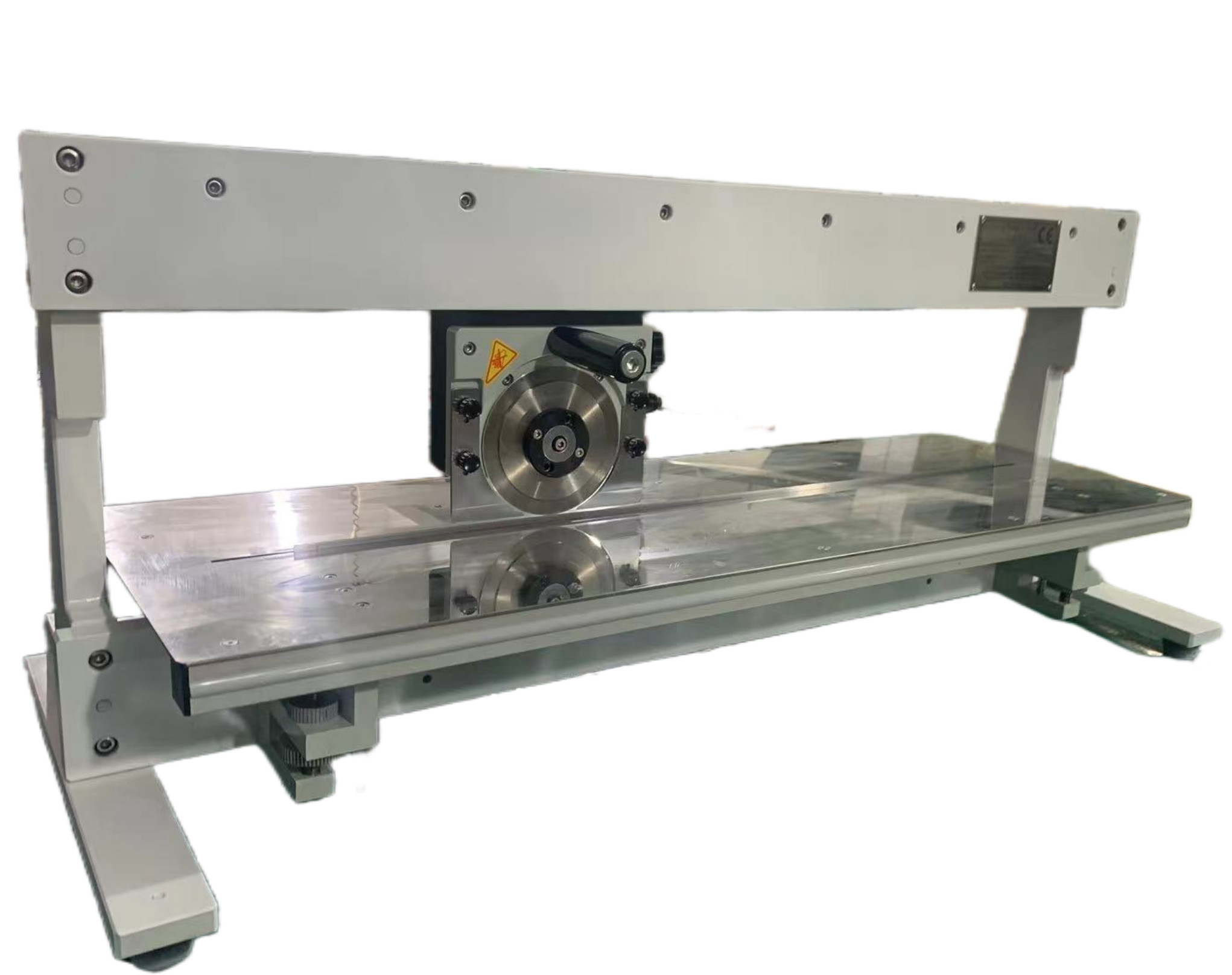

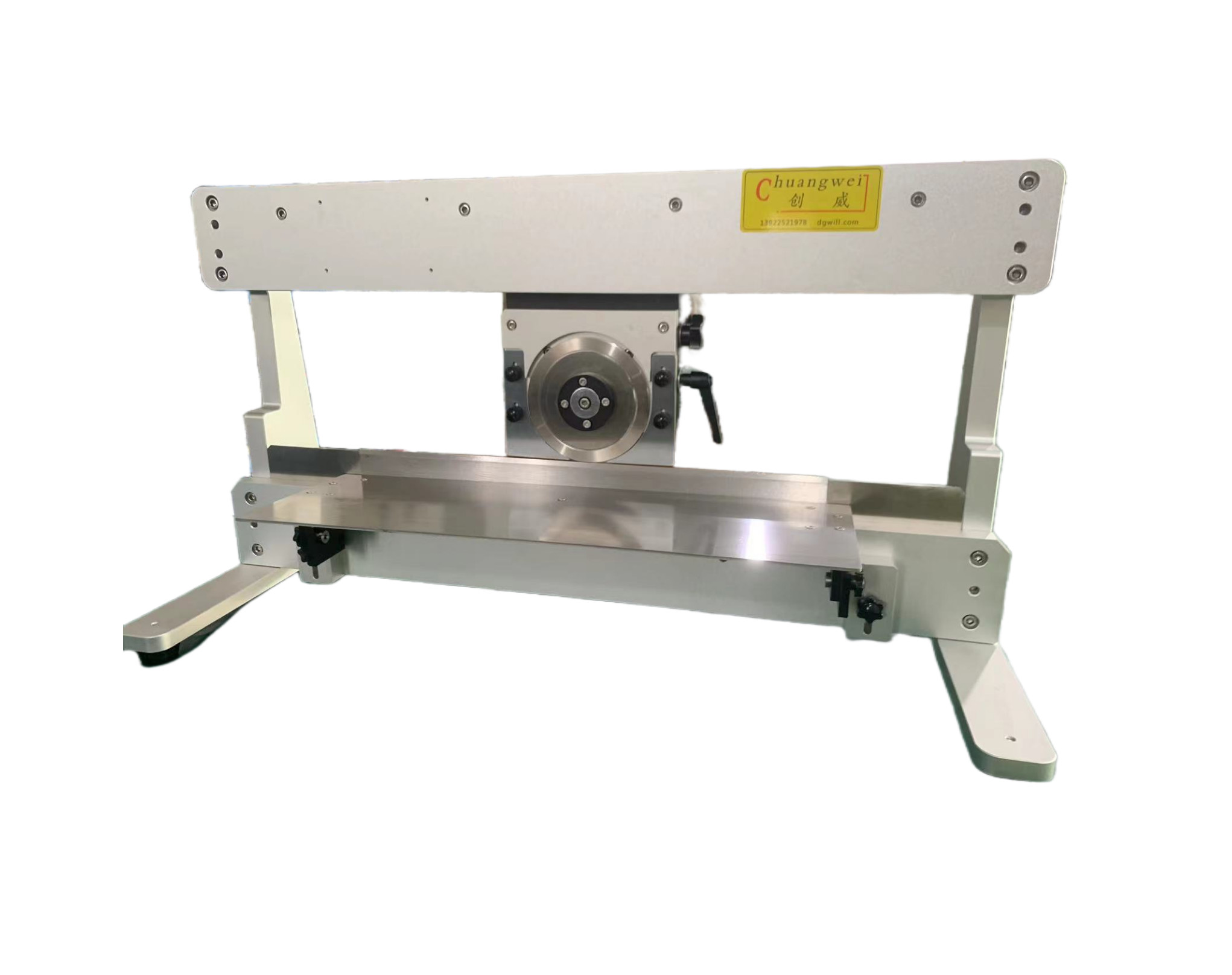

Aluminum Manual Type Pcb Separator Tool, High Efficiency Pcb Depanelizer With Round Knife

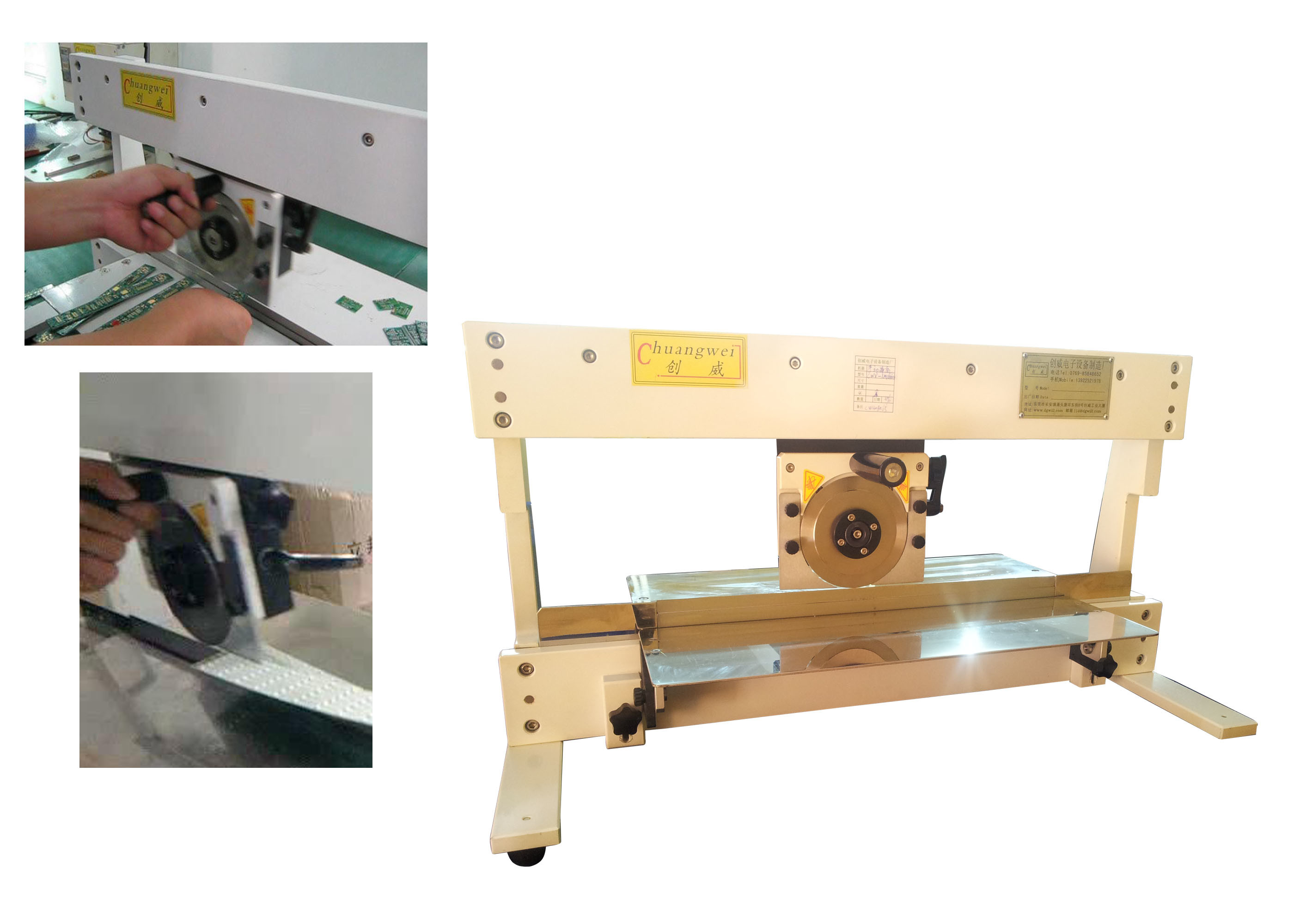

Manual Circular & Linear Blade Depanelizer CWV-1M
1. Round knife, manually cutting against lower linear knife, for reduced stress
2. Separate pre-scored PCB assembly without stress on either PCB or component
3. One touch programming of cut length with digital display
4. Separating speed is adjusted by a rotary knob
5. Handle Intermittent scoring or cut-outs
6. Board with projected component can be cut precisely
7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8. Optional PCB conveyor belt to remove finished board
9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Specifications for pcb depanelizer machine :
|
Model: |
CWV-1M720 |
|
Size: |
1027x400x436mm |
|
The Separate Size: |
720mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
45kg |
|
Model: |
CWV-1M460 |
|
Size: |
787x400x436 mm |
|
The Separate Size: |
460mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
30Kg |
Competitive Advantage:
1. CWV-1M Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our missionOngoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
