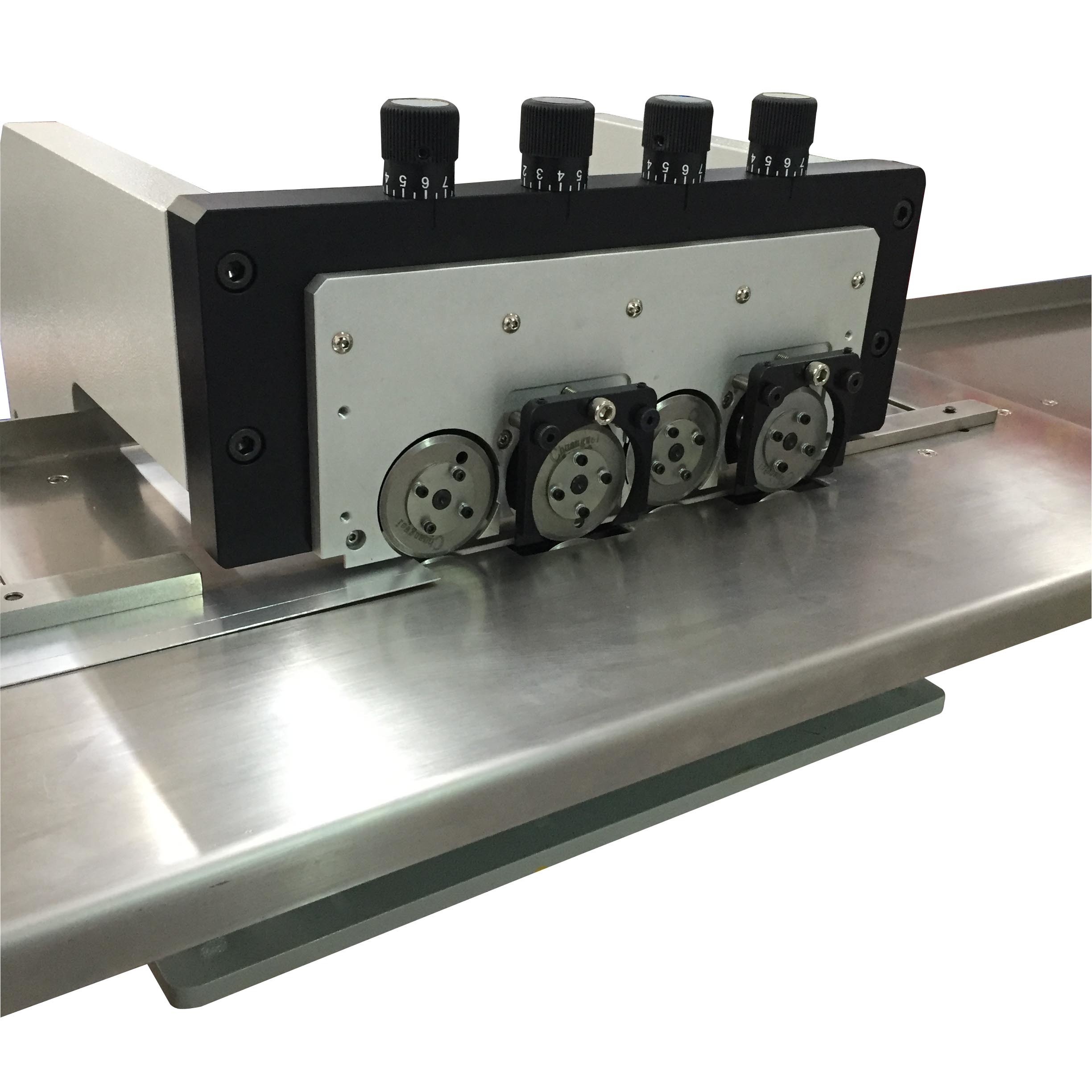

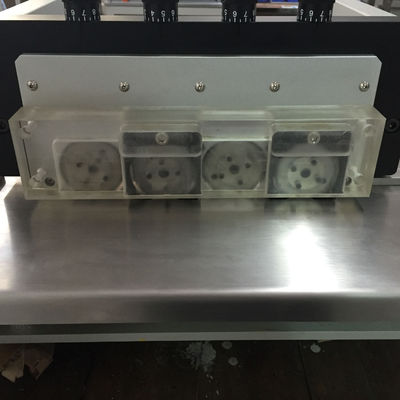

LED Lighting PCB Separator Depaneling Aluminium Board With Multi-blade
Feature:
1. Guide can be adjusted vertically to suit different LED boards.

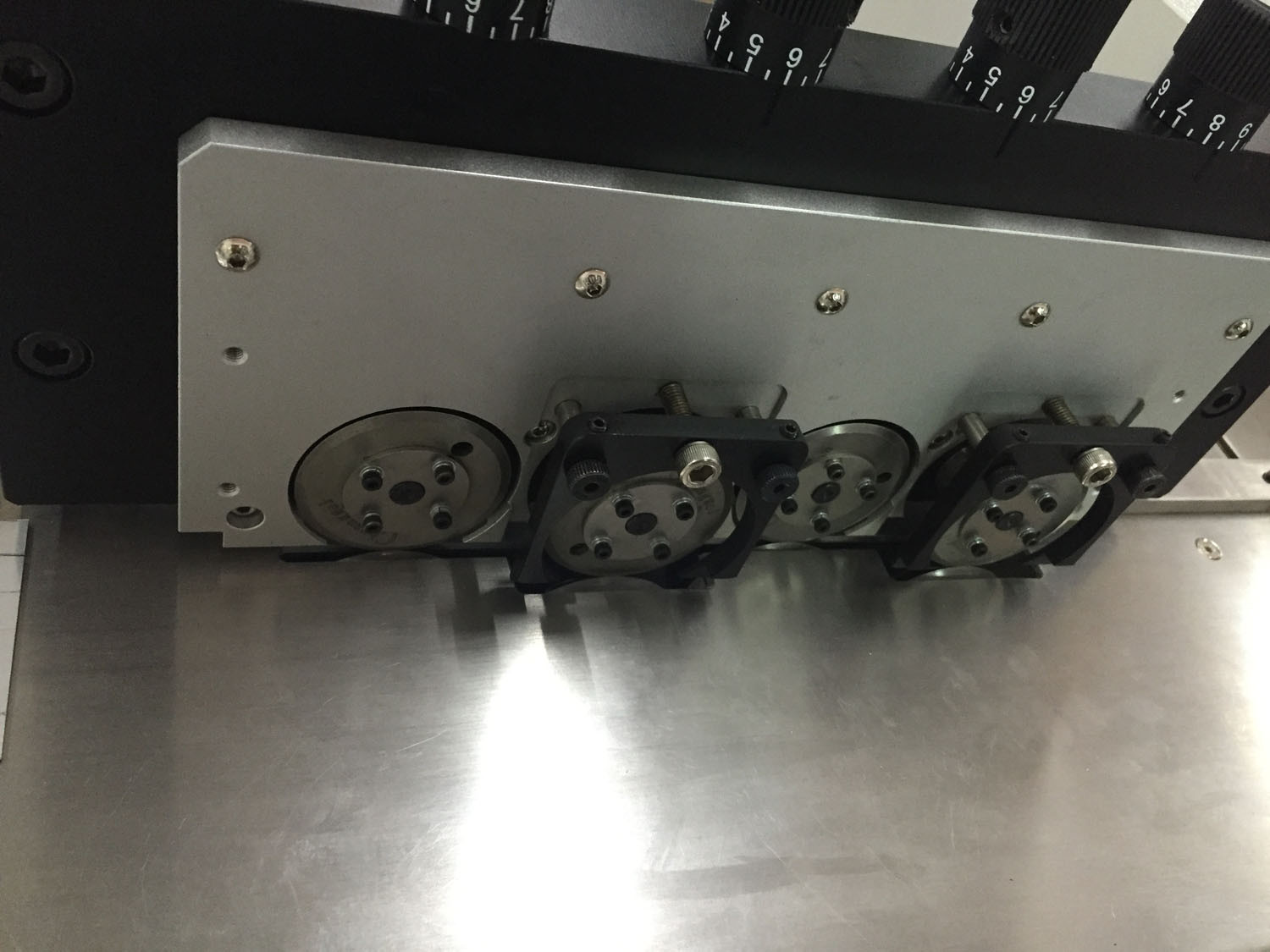

2. Clearance between the circular blades can be precisely
adjusted by the knob
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to customer's specifications .

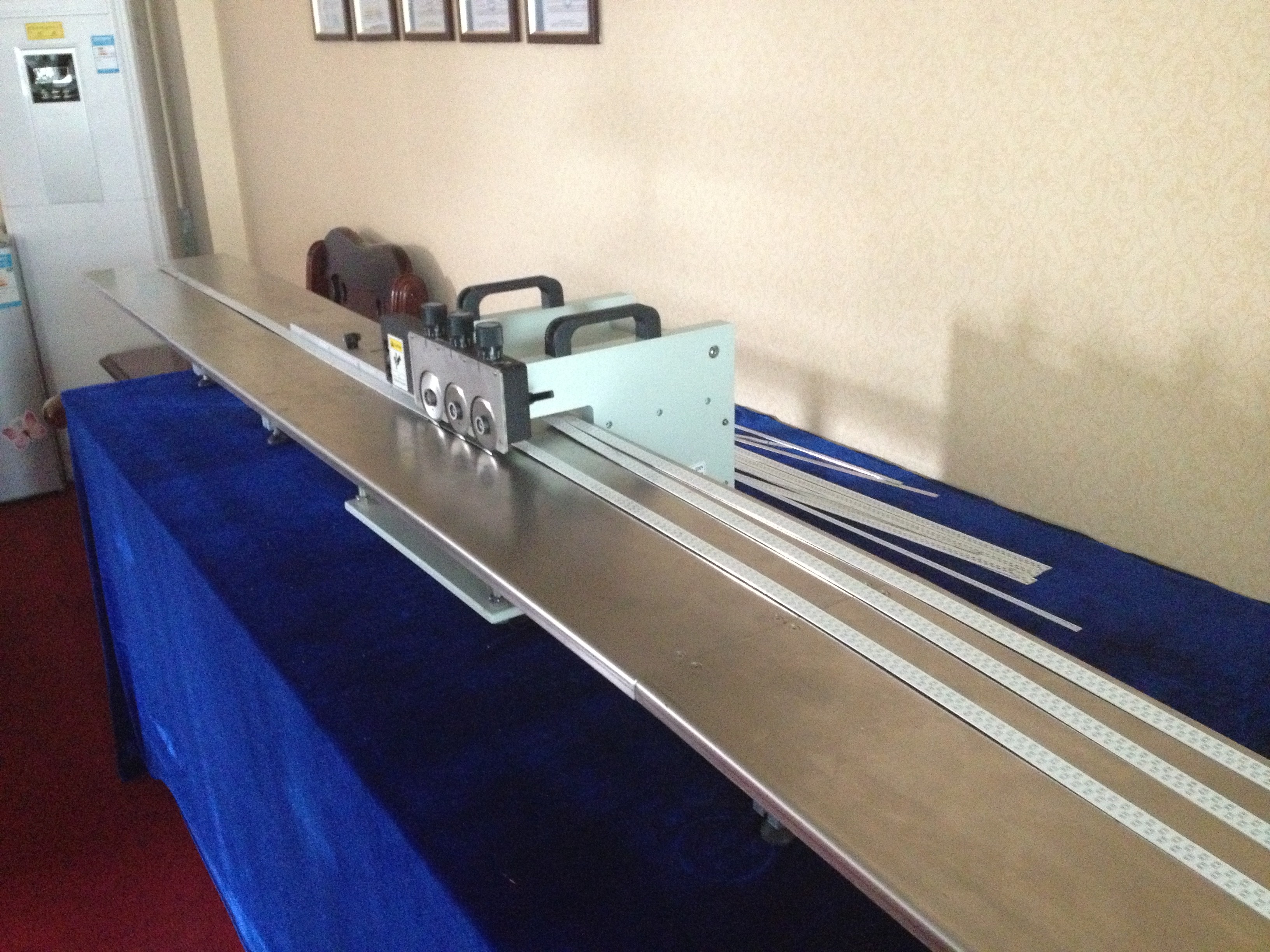

5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect
7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)
Specification :
Max PCB width: 12mm
Platform: 1.5 M /2.4 M length
Machine Size: 40*40*34 cm
The Longest Minimize: No limited
Minimize Speed: 0-520mm/s
Minimize thickness: 1.0-3.5mm
Machine Weight: 70Kg
