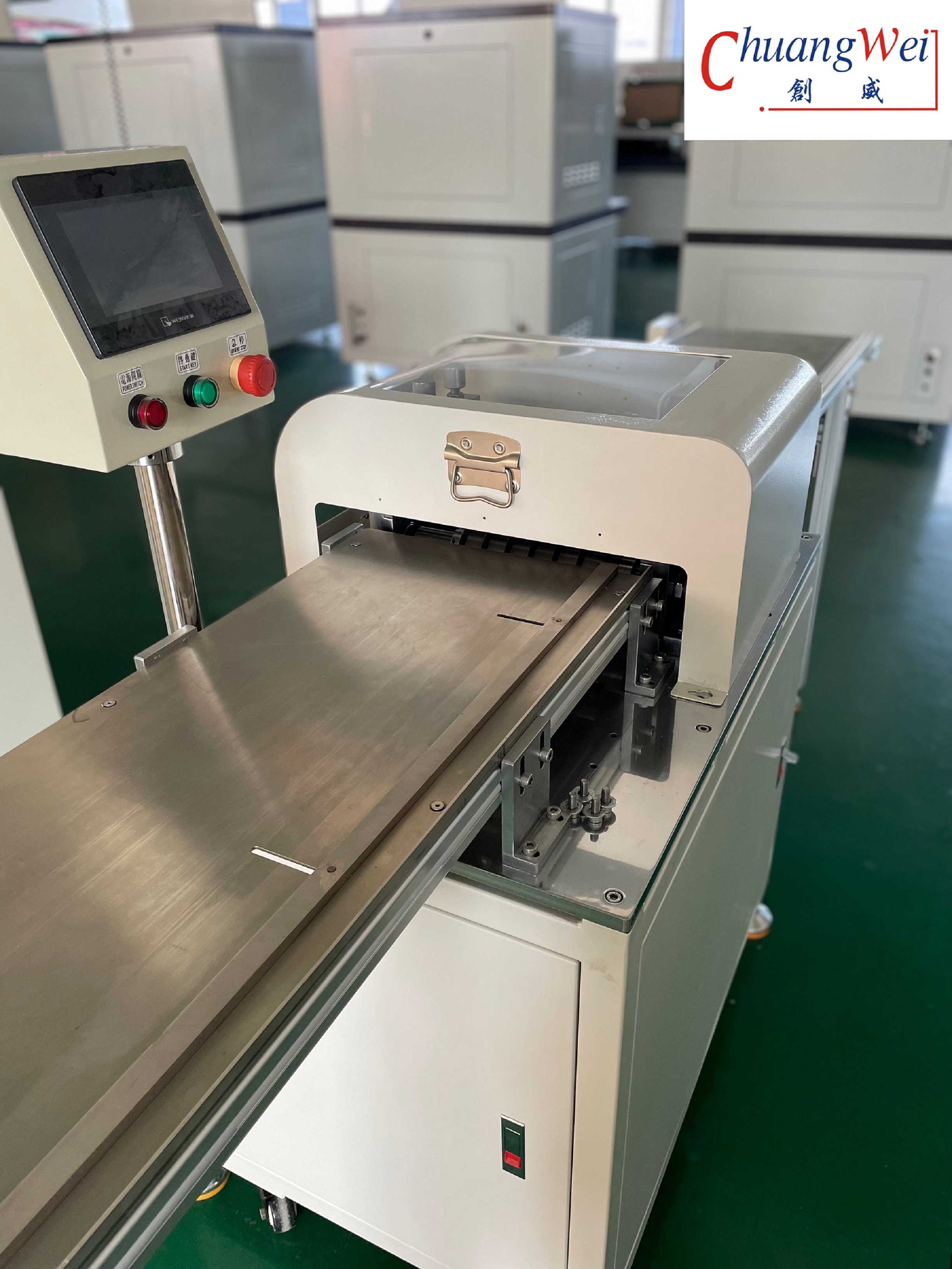

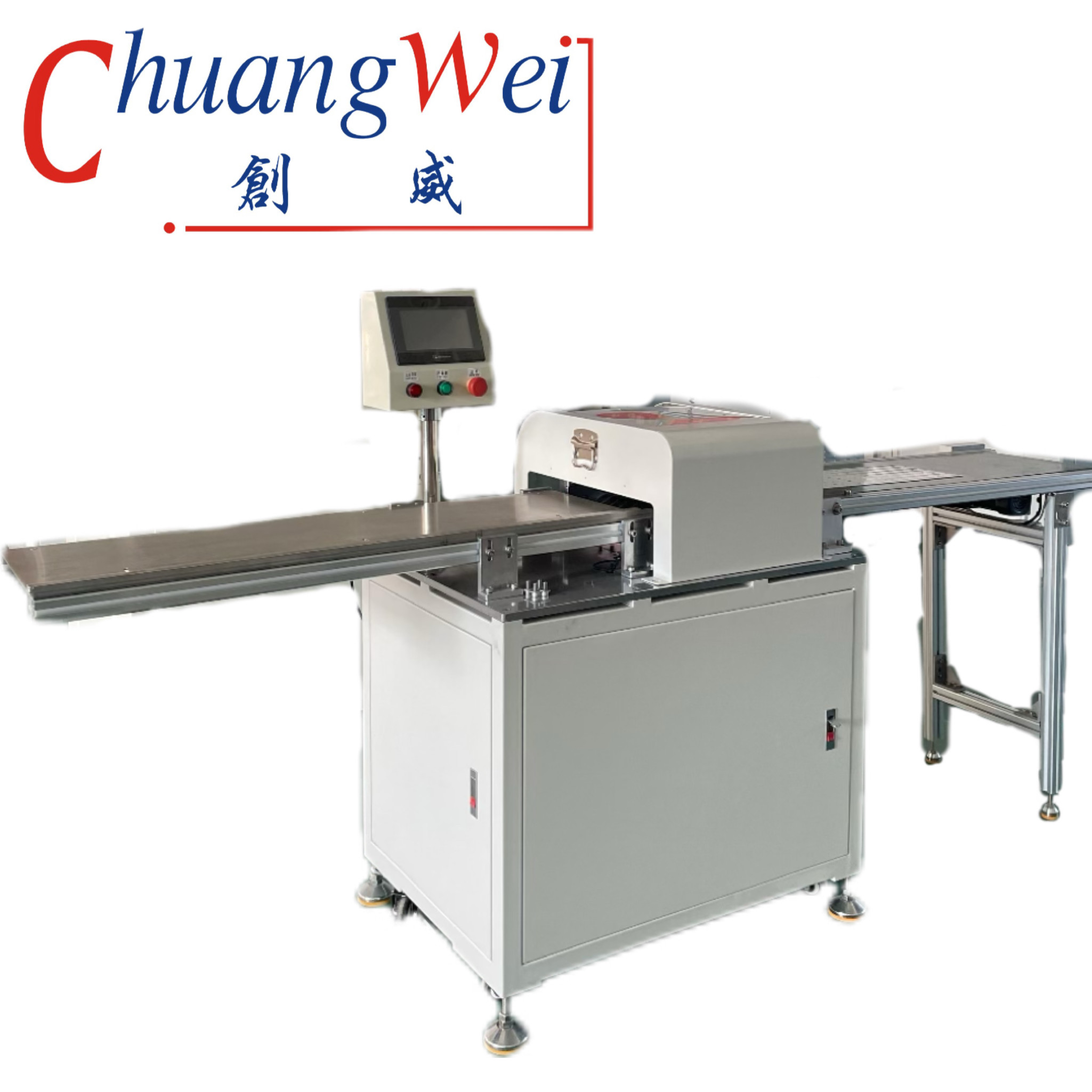

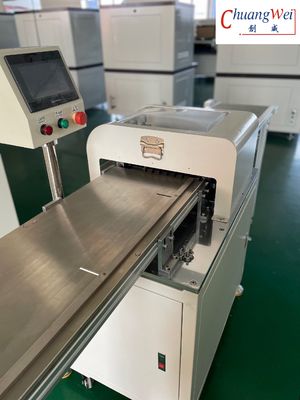

Multi-blades PCB Depanel PCB Separator For Long MCPCB LED Panel
Features for Multi-blades Pcb Separation CWVC-5 :

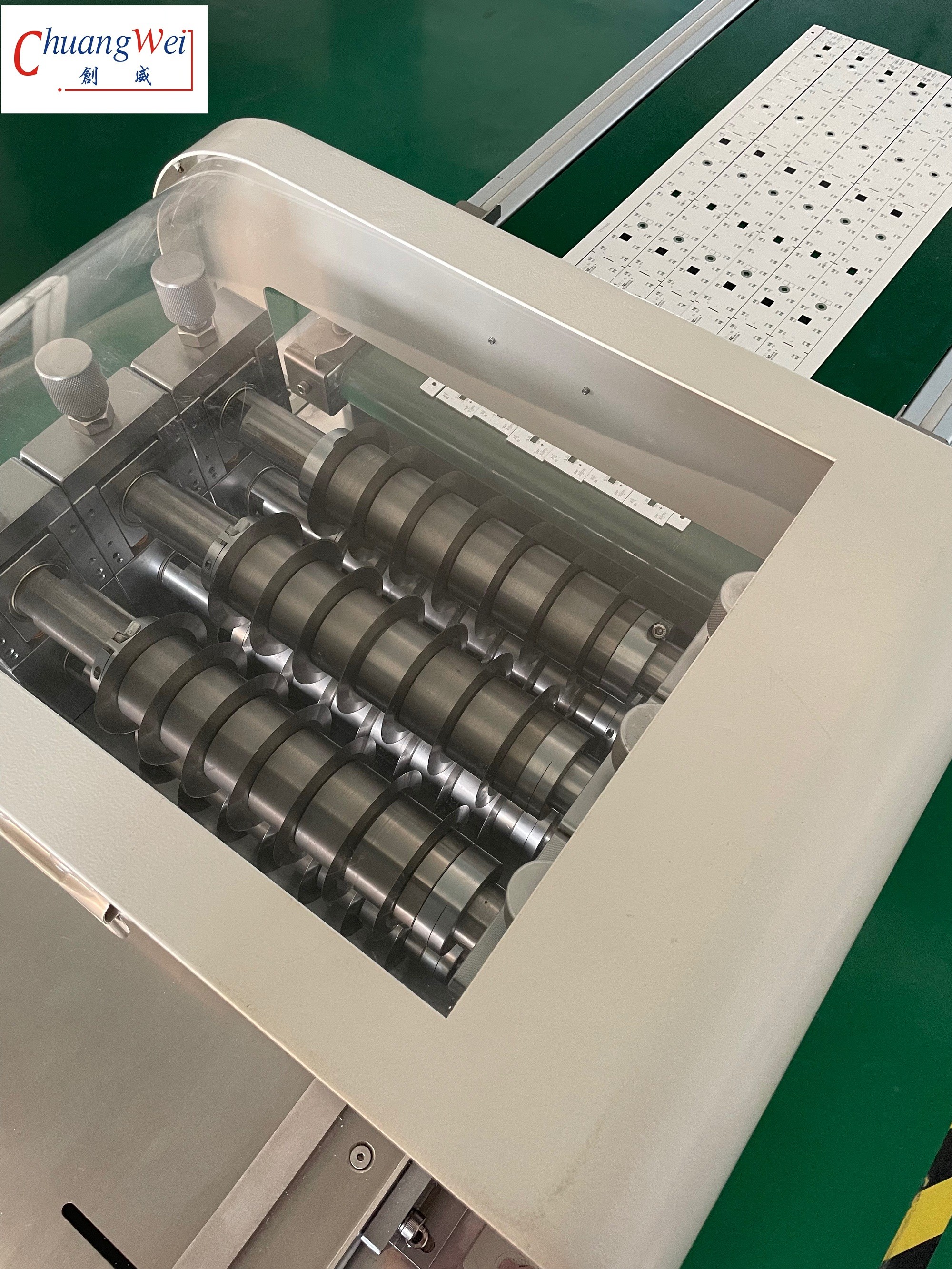

1, 10 pairs of blades is available
2, Configuration of the blades is adjusted toindividual PCB
3, Sensors are used to monitor the separating process
4,The PCBs are placed either by hand or they feed automatically by a loading station.Easy operating
5,Could be adjusted according to PCB sizes and customers' requirements
6,Could be customized made as customers' request
Specifications for Multi-blades Pcb Separation CWVC-5 :
| Cutting speed | 100-220mm/s |
| Panel length | 100-unlimited mm |
| Panel width | Max 245 mm |
| Width off-cut | min 3mm |
| Number of blades | max 10 pairs |
| Width of PCBs | 7-245mm |
| Component height Component side | max 30mm |
