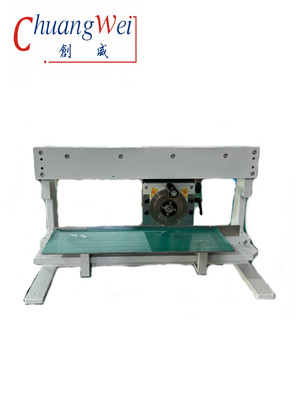

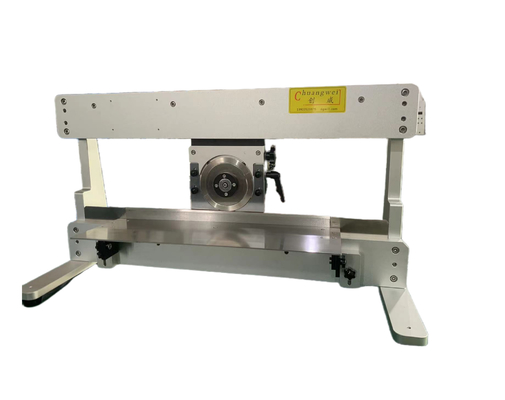

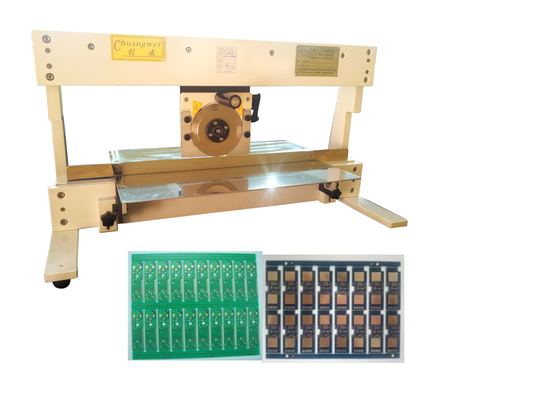

Manual Pcb Depanel With One Circular And One Linear Blade
CWV-1M Fast , Accurate, Economical PCB Separation for Panels up to 24" Long
The CWV-1M precision depaneler combines a topside circular cutter with a below-board linear knife for smooth , burr-free separation of PCBs along the scoring groove . The design of the CWV-1M eliminates stress on the board and the components during the separation process , preventing post-breakout-related board , component and solder joint defects even when components are located as close as 1 mm to the scoring line .
CWV-1M can be used with panels that are v-scored in the X direction or X & Y directions and PCB thicknesses from 0.8 mm to 3.0 mm . The large processing table can be angled to permit processed boards to fall away .
This low-maintenance PCB separator requires no power or air for $0 utility costs and the ability to use the machine anywhere in the facility . Sturdy, heavy-duty design . A shatterproof Plexiglas safety shield protects operator from cutting blade .
CWV-1M PCB Depaneler Features :

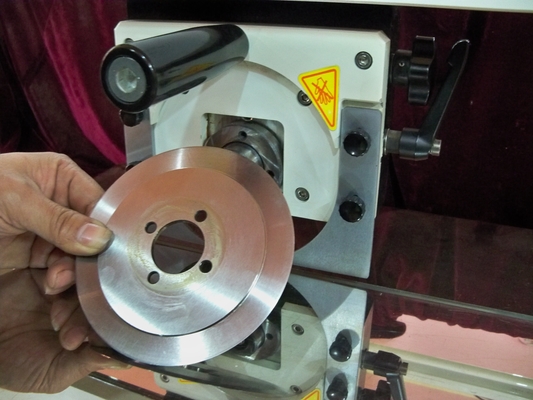

Circular blade cuts against linear blade to ensure clean , burr-free processing without board stress
Available with max . cut length of 460 mm (18.1") or 600 mm (24")
Depanels PCBs with components up to 1 mm from the score line
Quick-lock blade for easy board thickness setup
Large processing table, which can be angled to allow separated PCBs to fall away from blade
Hardened tooled steel long-life blades
Shatterproof Plexiglas safety shield for circular blade
Specifications :
|
Model: |
CWV-1M720 |
|
Size: |
1027x400x436mm |
|
The Separate Size: |
720mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
45kg |
|
Model: |
CWV-1M460 |
|
Size: |
787x400x436 mm |
|
The Separate Size: |
460mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
30Kg |
Competitive Advantage:
1. CWV-1M Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
