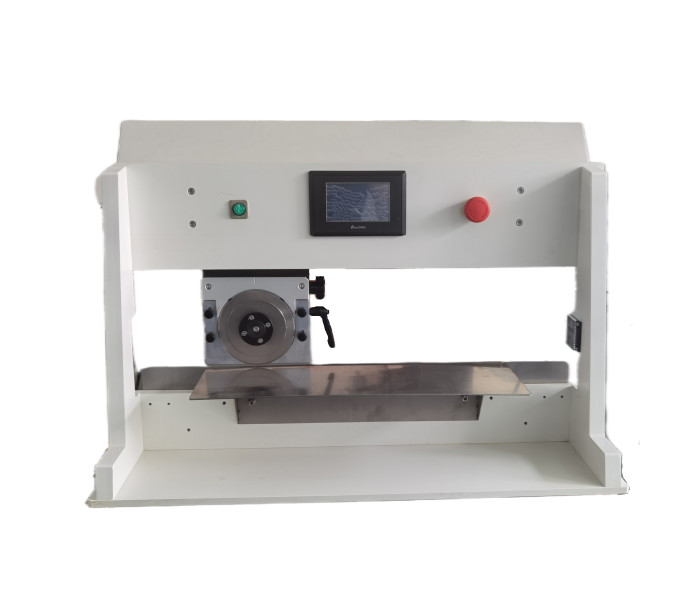

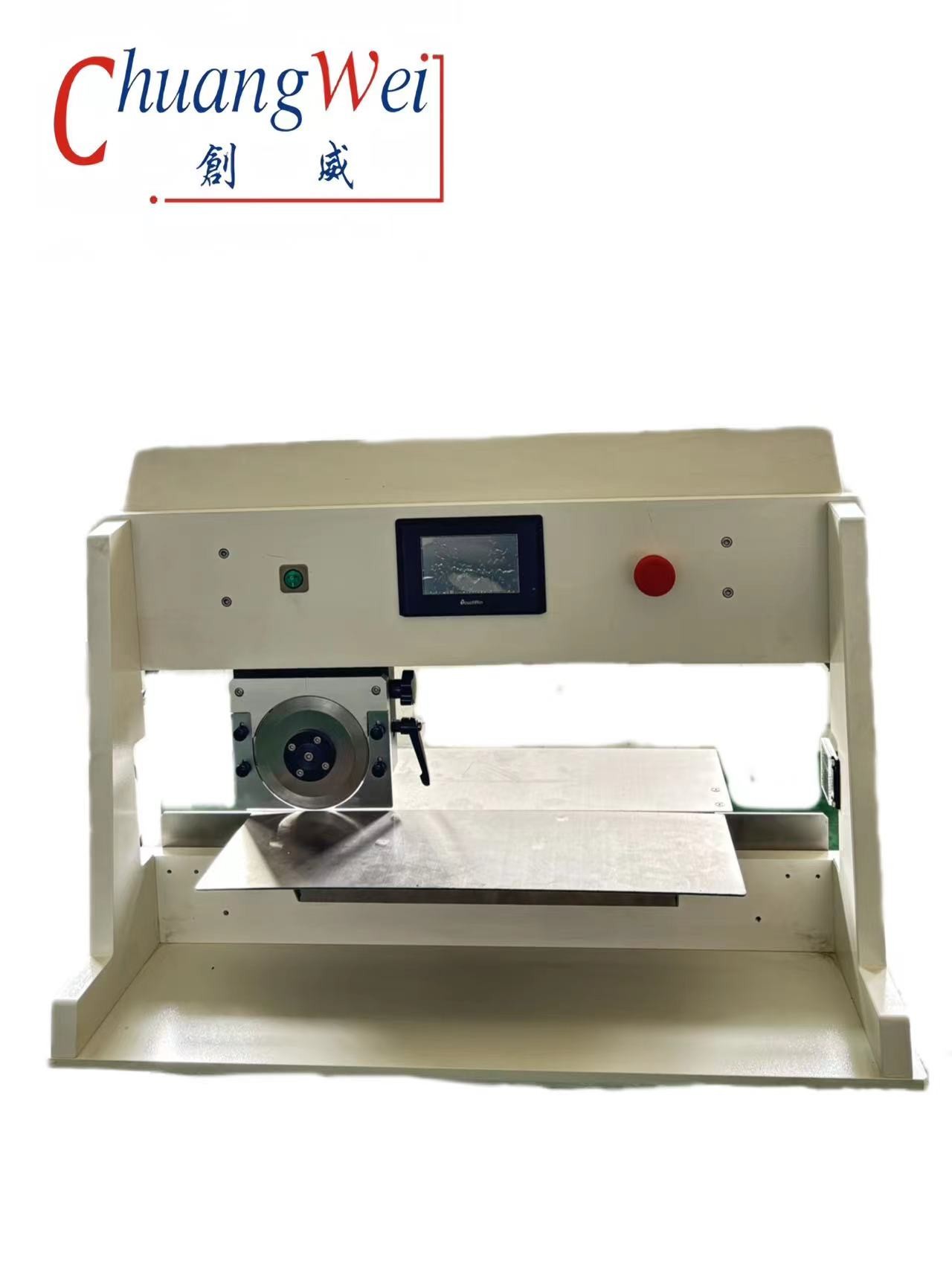

Motor-driven PCB Prototype Stress-free Separator of Pre-scored,PCB De-panel
The SMTfly-1A separates both large and small PCBs quickly, economically and without stress. Cutting with only a single traverse of the pre-scored groove causes tensile and compressive stresses that can damage sensitive compoinents near the groove. Even a second traverse of the groove accompanied by an adjustment of the blade distance substantially reduces the tensile and compressive stresses. This significantly improves the quality of the populated PCBs.
The most important features:
1. The blade distance is entered on the operating panel and its adjustment is motor-powered.
2. Up to eight programs can be stored.
3. The materials used for PCBs are FR4 and aluminium
4. The continuously adjustable separation length is set with limit switches.The accumulated cutting
5. performance is displayed for the purpose of scheduling preventive maintenance of the blade
PCB Separators Specifications :
| Model | CWVC-1A |
| Max. PCB cutting length | 460 or 600 mm (on request custom made ) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100 , 200 , 300 , 500 mm / sec |
| Blades type | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110 / 220v |
| PCB cutting machine size | 770 * 510 * 450 mm |
| PCB cutting machine weight | 55 kg |
If you need videos for your reference,please let us know:
Email: sales@dgwill.com
