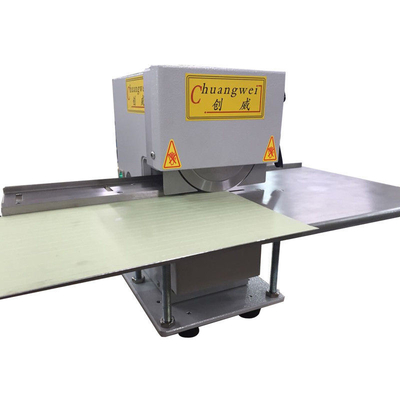

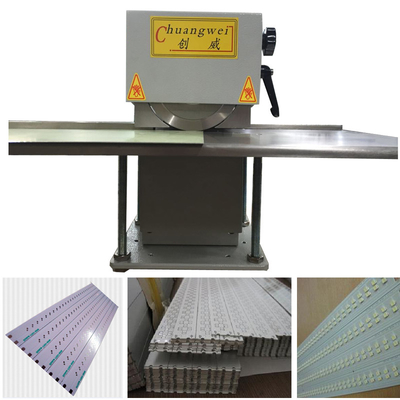

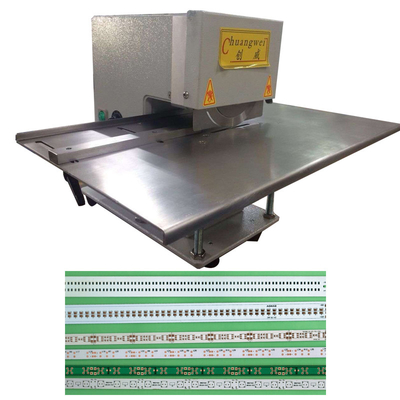

Pre Scoring PCB Depanel V-Groove PCB Separator V Cut PCB Depaneling PCB Depanel Applications:
The aluminium base board of 1.0mm-3.5mm thickness, about the special type plate,
please leave a message to the email s1@dgwill.com
PCB Depanel Detailed Product Description:
1 . For electronics, cell phones , computers , PCB , FPC ( flexible printed circuit board )
2 . Mold make of SKH-11 Steel , Blade is SKH-9 ( From Japan ) , Rigorous Job !
pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling p
PCB Depanel Technical characteristics:
1 . Structural precision, the load evenly , to eliminate internal stress
2 . Safe , easy to operate
3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )
PCB Depanel Specification:
|
Machine Model |
CWVC-1SJ |
|
cutting Length (mm) |
unlimit |
|
separation Speed (mm/s) |
0~400 |
|
Cutting Thickness (mm) |
1.0~3.5 |
|
Power Supply (V) |
110/220 |
|
PCB cutting machine Size (mm) |
420*280*400 |
|
PCB cutting machine Weight (Kg) |
25 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
free for one year |
|
Delivery (Day) |
within three days after receive the payment |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 sets/ year |
PCB Depanel Feature:
1. No limits to cutting length
2. the cutting speed is adjustable and controlled by hand
3. Small cutting press to avoid solder crack
4. the distance between upper and lower knives can be adjusted according to the thickness of boards .
5. the cutting tool is made of Japan high speed steel by Taiwan professional manufacturer .
6. the surface of the machine sprayed by white powder , hard to fall off .
7. All pcbs with v-cut can be separated by this machine .
Our Advantage:
1. CWVC-1S Pcb depanelizer original manufacturers , price concessions
2. Promise day technical support services
3. Limit the handling of complaints , half an hour back to customers
4. Depanel Experts , the provision of professional PCB sub-programme
5. Reliable machine maker , we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying .
CE Approval
