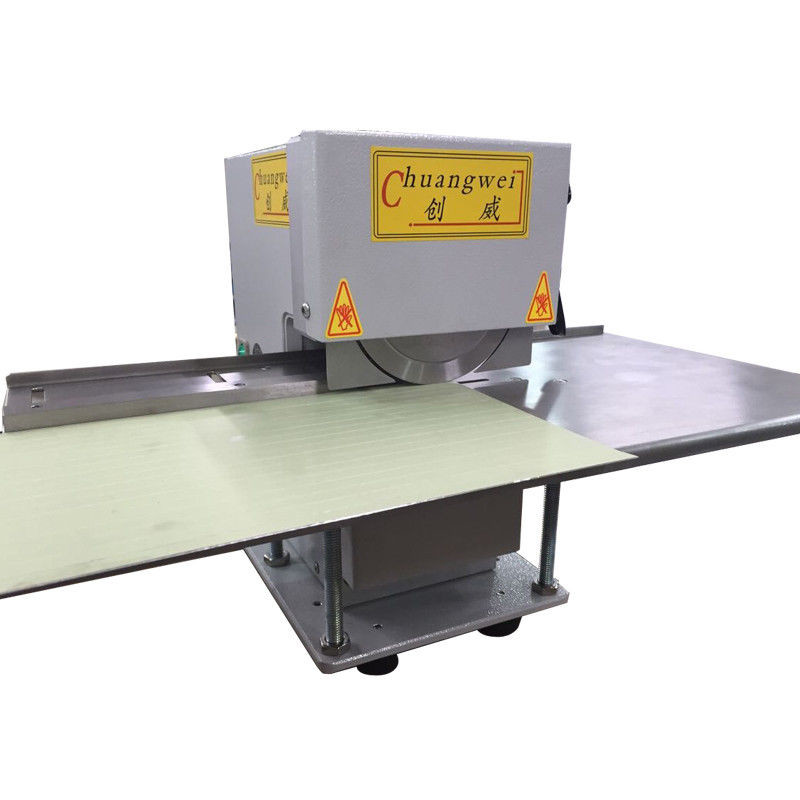

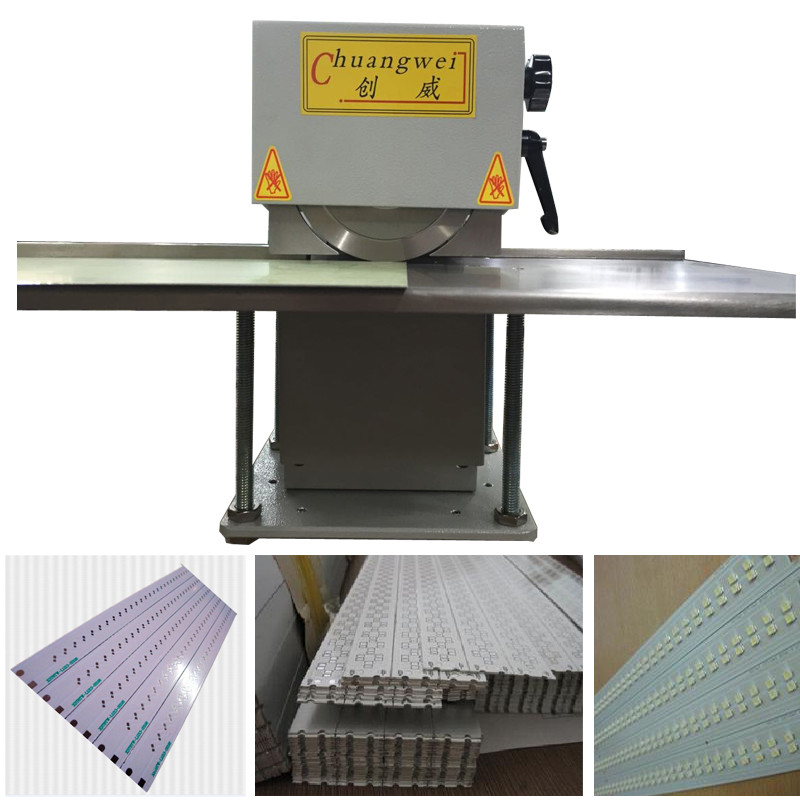

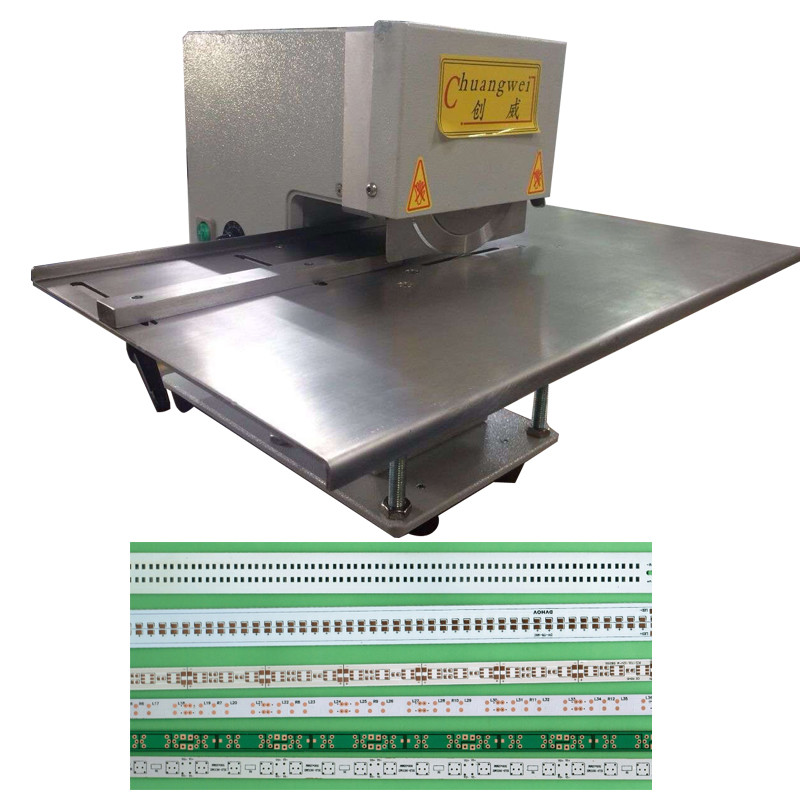

PCB Depanel V Groove PCB Depaneling V Cut PCB Separator For Aluminium Boards
Applications
The aluminium base board of 1.0mm - 3.5mm thickness , about the special type plate ,
please leave a message to the email sales@dgwill.com
Features :
1. No limits to cutting length
2. the cutting speed is adjustable and controlled by hand
3. Small cutting press to avoid solder crack
4. the distance between upper and lower knives can be adjusted according to the thickness of boards .
5. the cutting tool is made of Japan high speed steel by Taiwan professional manufacturer .
6. the surface of the machine sprayed by white powder , hard to fall off .
7. All pcbs with v-cut can be separated by this machine .
Specifications :
| Platform | 1.2M / 2.4m (can be made according to customers requirement ) |
| gross weight | 74 KG |
| packing size | 620*440*560mm |
| Machine size | 420*280*400mm |
| Machine Weight | 65kg |
| Maximum cutting length | no limits |
| Speed | 0-400mm/s |
| cutting Thickness | 1.0-3.5mm |
| Voltage | 110/ 220VAC |
