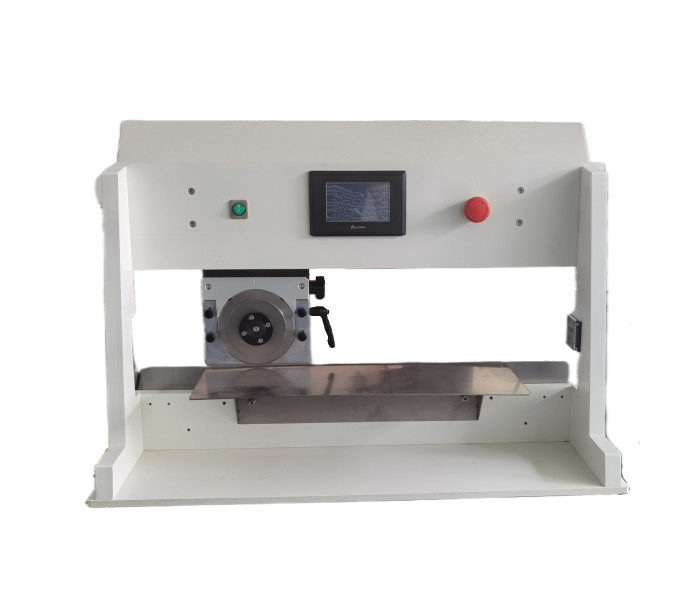

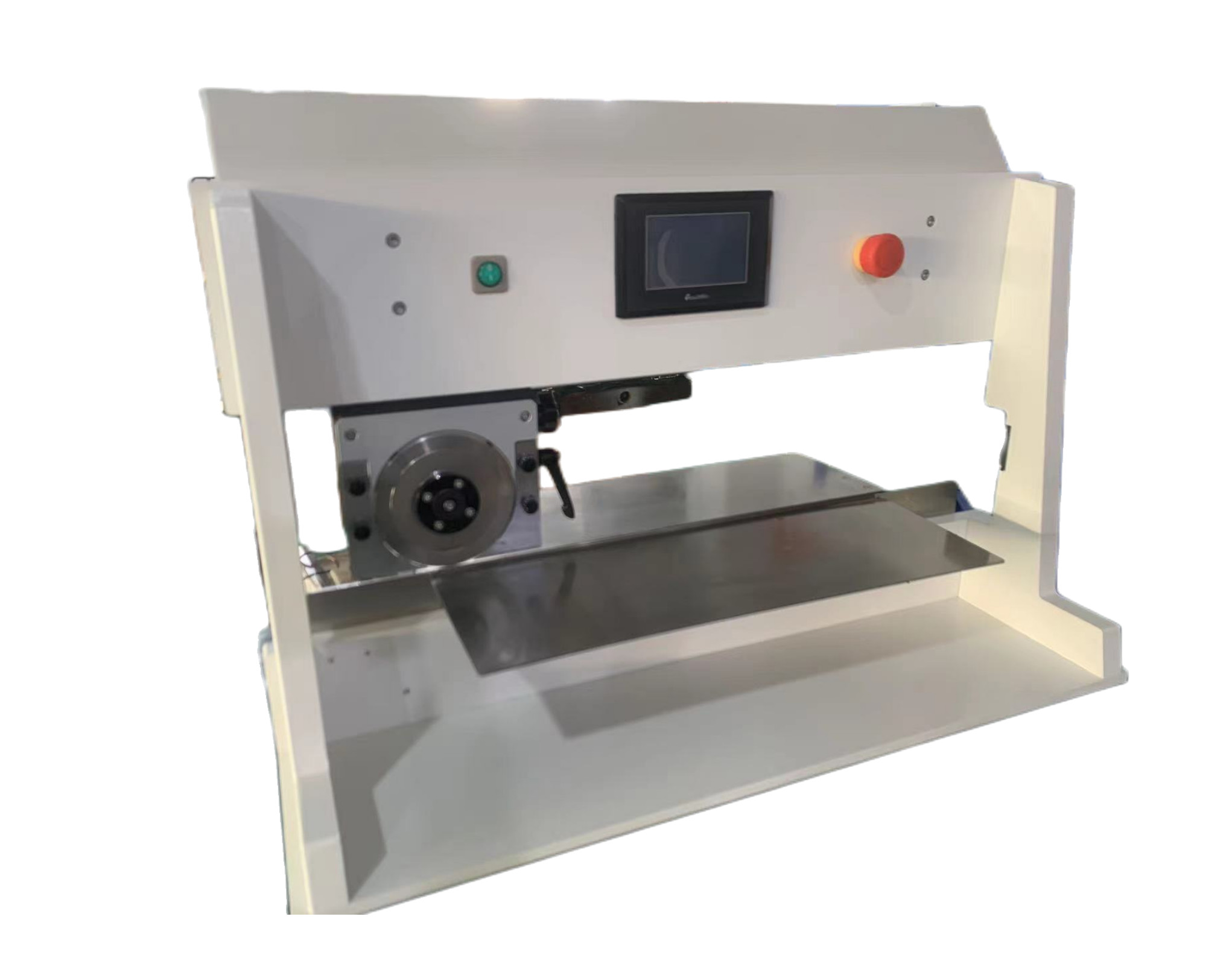

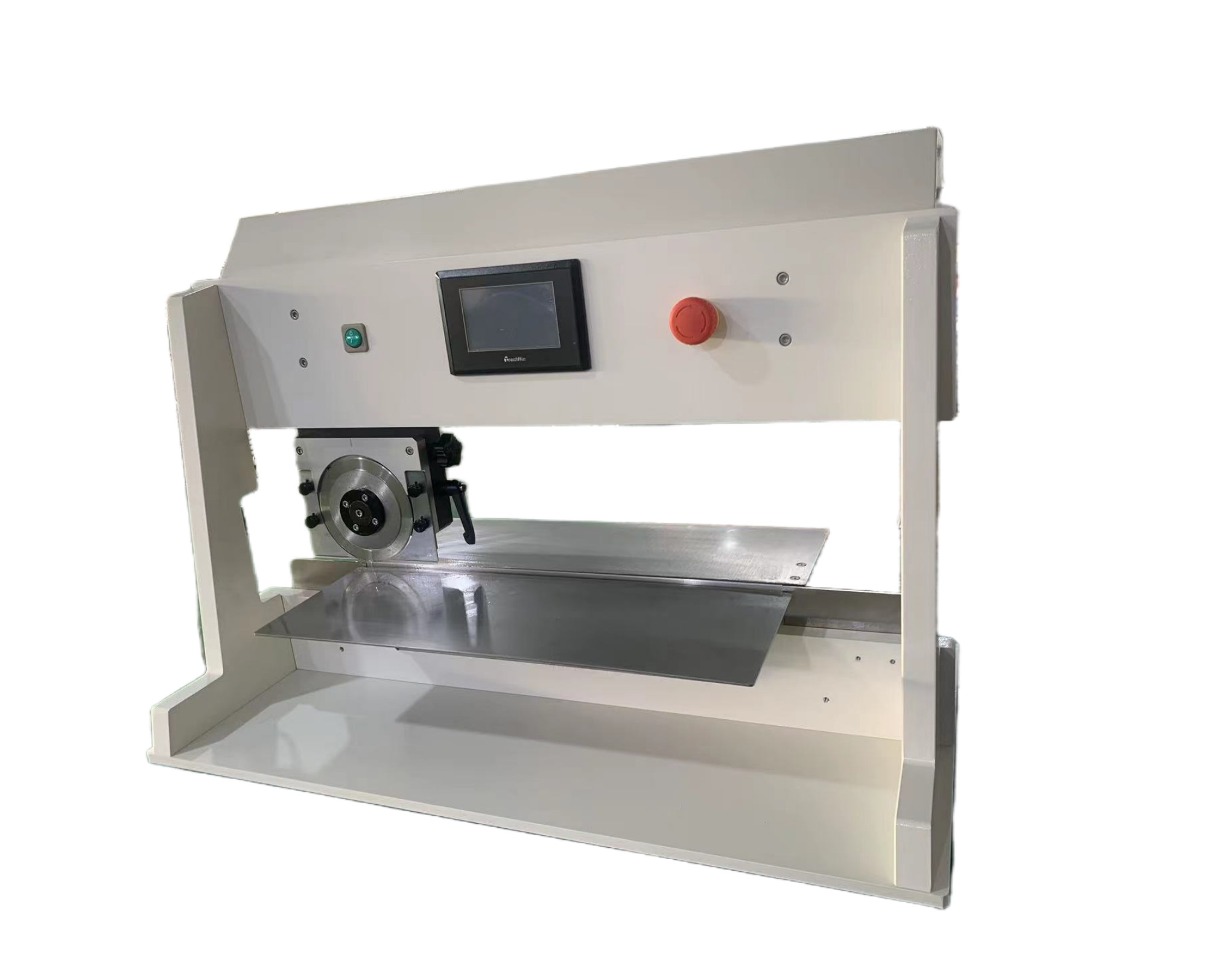

Automatic PCBA Separator Machine With Digital Display , PCB sub-programme
Feature:
1. Controlled by Micro-Computer Program, patented design, high accuracy and with good stablity.
2. Cutting Speed adjustable, have two options : 500mm/s and 300mm/s, if customer want to set other speed, we can customise for customer.
3. Separation length can be programmed: 0-150-300-450-600MM
4. Cutting Material PCB must with Pre-scored groove
5. Operating Panel height is adjustable, from 0-50mm.
6. Rotary Knife adjustable : 0-2mm . in order to suit for different sickness PCB board and different depth of pre-scored V-cut.
7. For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.
8. PCB Board thickness : 0.2-3.2mm, V-cut depth : 0.2-2mm. PCB Length :0-1300mm.
9. Upper circular blade and Bottom linear balde all exported steel long life blade, durable, when the blade is not sharp, can grind 7-10 times, repeated use.
Specifications:
|
Model: |
CWV-1A |
|
pcb separation length : |
460 mm |
|
cutting speed : |
100/200/300/500 mm/s |
|
separation thickness : |
0.6-3.5 mm |
|
power supply : |
110 / 220 v |
|
Machine Size : |
770*510*450 mm |
|
Machine weight : |
55 kg |
Application :
1. Cutting Materials: Aluminum Board, PCB Board , Soft Fiber, clean and burr-free, high speed and effective.
2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry , Moblie/Mp3 industry, Electronic Toys industry and Etc...
3. Imported high speed steel blade , long service life. Easy operating, processing without board stress, will not demage the components on the board.
Competitive Advantage:
1. CWV-1A Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
