Top Speed LCD Program Control PCB separation With High Standard Material

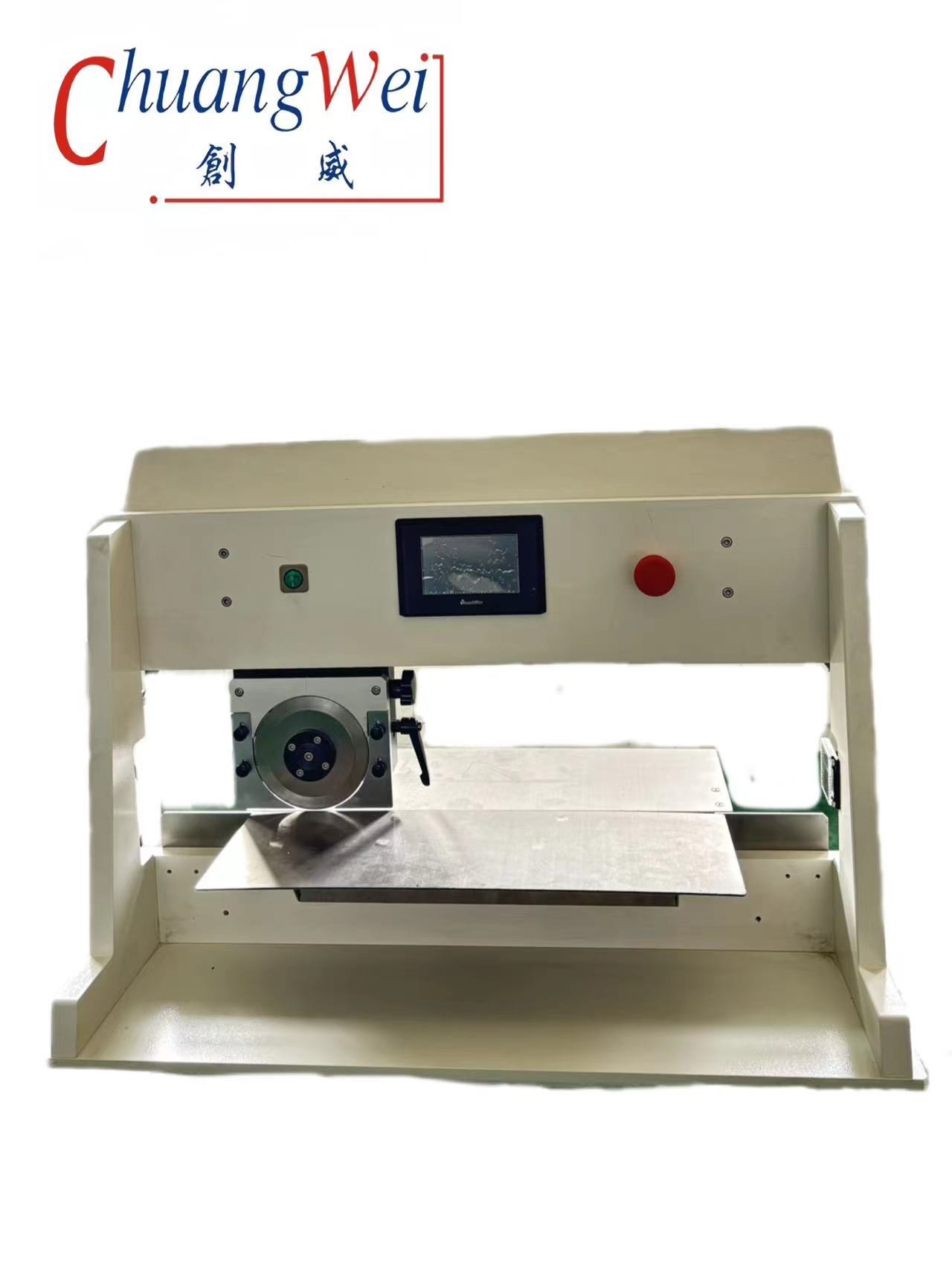

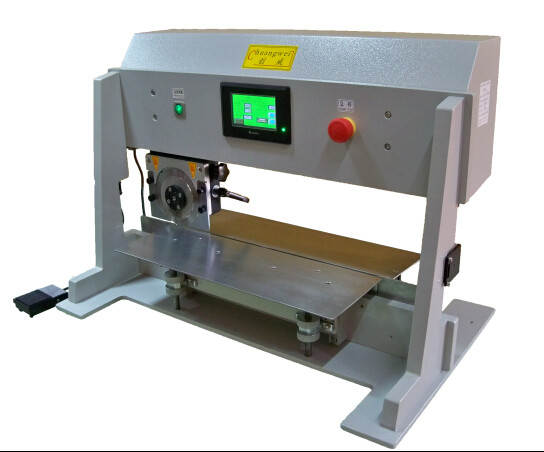

Chuangwei Machine Diagram:
Top speed pcb depaneler with high standard material
1.Operator foolproof
2.Infrared protection
3.Calibration Blade Set
4.LCD program Control
Specification:
|
Model |
CWV-1A |
|
PCB Cutting Length (mm) |
460/600/1000/1500 |
|
Cutting Speed (mm/s) |
100/200/300/500 |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Power Supply |
110/220 V |
|
Size (mm) |
770*510*450 |
|
Weight (Kg) |
55 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade Hardness (HB) |
540~567 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
7 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:
1. Minimize the shearing stress to avoid micro-cracks of the solder joints.
2. Guiding device of the "V-CUT" of the PCB.
3. Ball-bearing slideways for easy setting of the PCB edge guides.
4. Ball-bearing slideways for easy setting of the height of the tabletop.
5. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6. Cutters can be re-grinded
7.The shape of the cutter can be customer-made
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker, we get Experts--15, each one has over 6 years experience, equipment quality will be satisfying.
