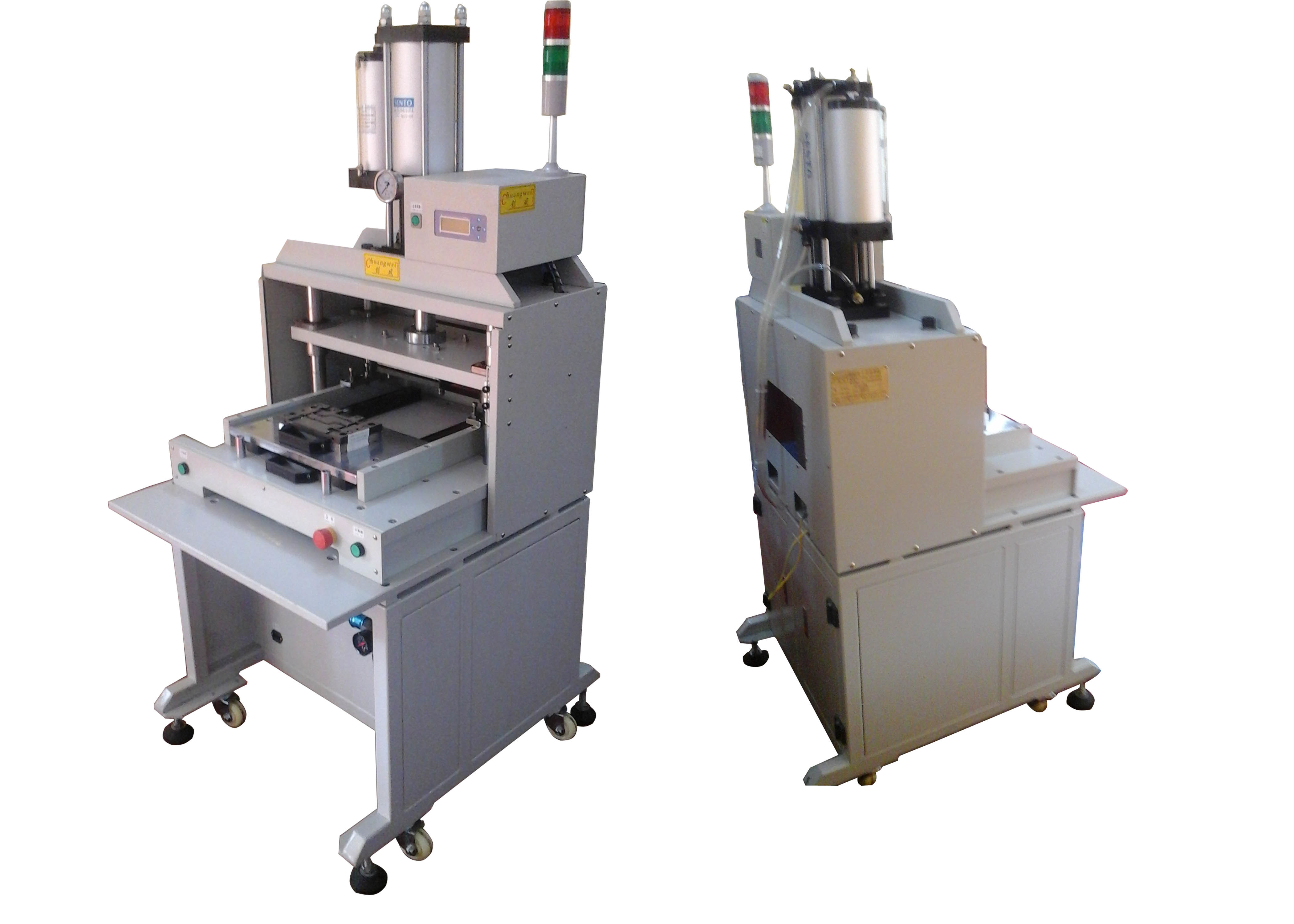

3-30T FPC & PCB Punching Machine for Electronics Industry
Strict requirement pcb punch China supplier
1.Highly automatic
2.Fit many molds, fast replace
3.Efficient PCB put and pick
4.Protect PCB
Specification:
|
Model |
SMTfly-PE |
|
PCB Area (mm) |
330*220 |
|
Power Supply (v) |
110/220 |
|
Depression (Pa) |
0.45~0.7 |
|
Size (mm) |
730*810*1700 |
|
Contribute (Tone) |
3~30 |
|
Weight (Kg) |
530/700 |
|
Mold Hardness (HRC) |
60~63 |
|
Mold Hardness (HB) |
540~567 |
|
Min. Order (Set) |
1 |
|
Delivery (Day) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Other spare parts for punching molding
3. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), Rigorous Job!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), and other spare parts for the punching molding industry
Feature:
FPC /PCB punching (SMTfly-PE)

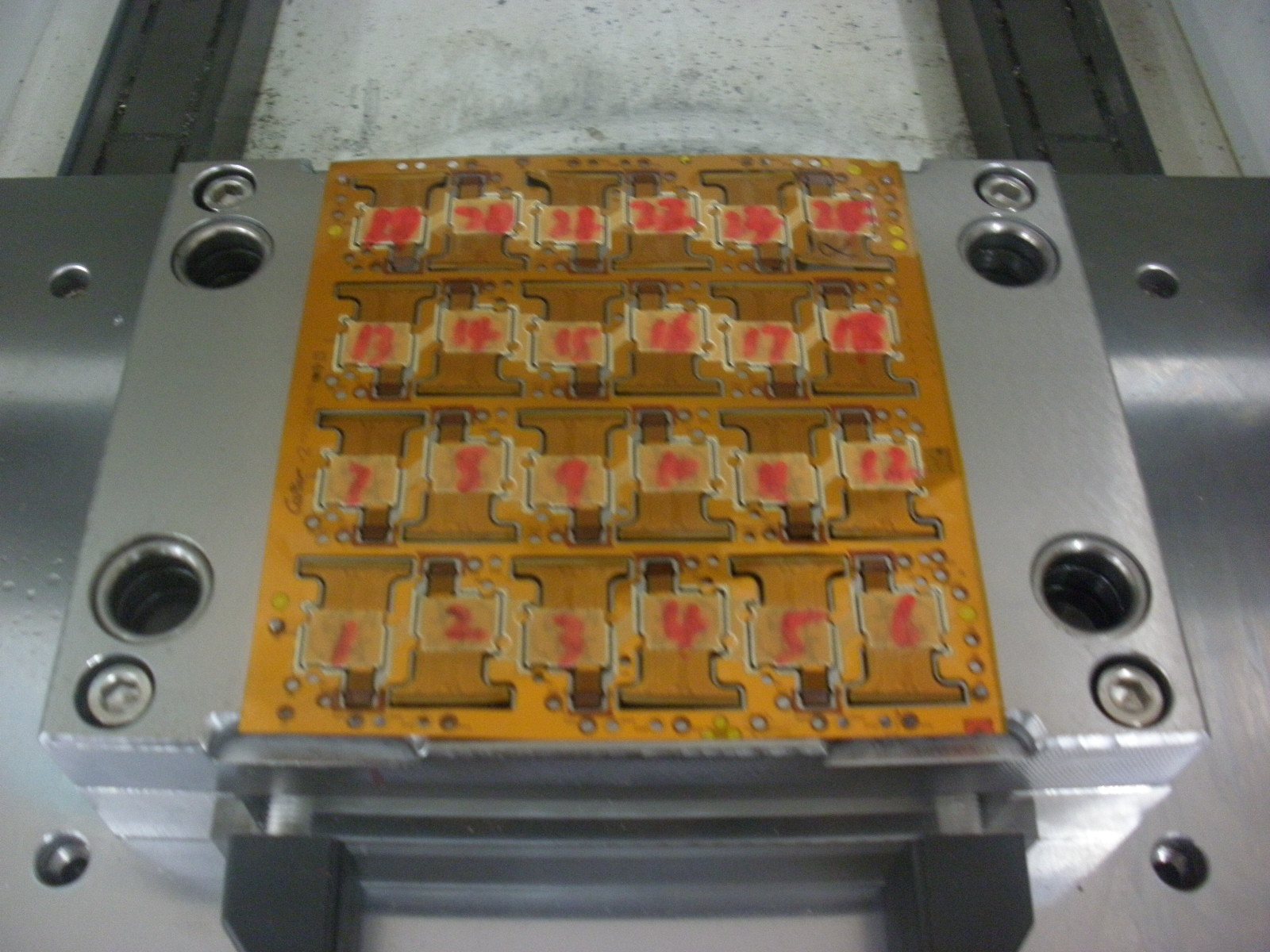

1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable.
3.Easy set up of punching dies.
4.Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.
Our Advantage :
1.Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker, we get Experts--15, each one got over 6 years experience, equipment quality will be satisfying.
Chuangwei Machine Diagram:
More information please feel free contact us:
Email: sales@dgwill.com
