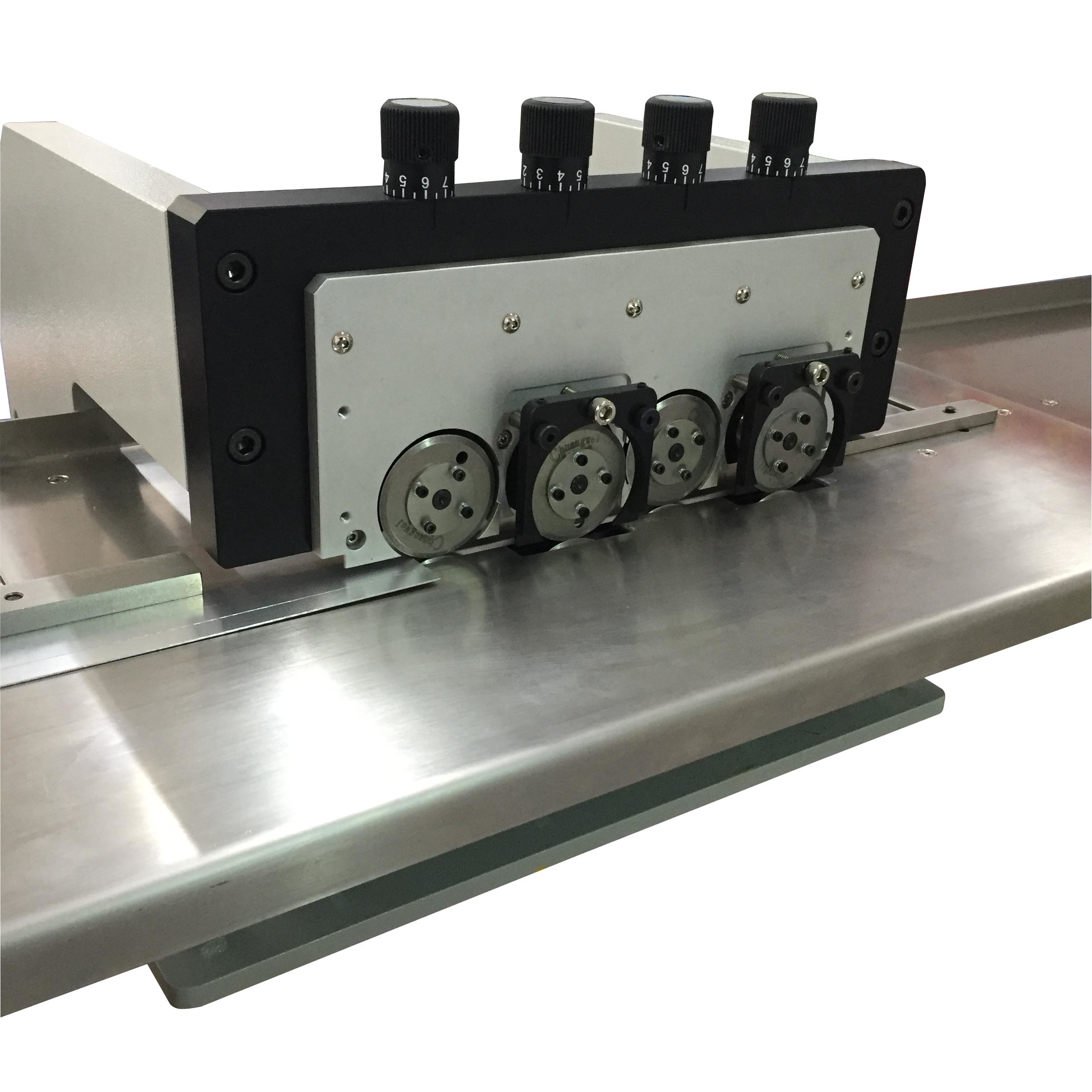

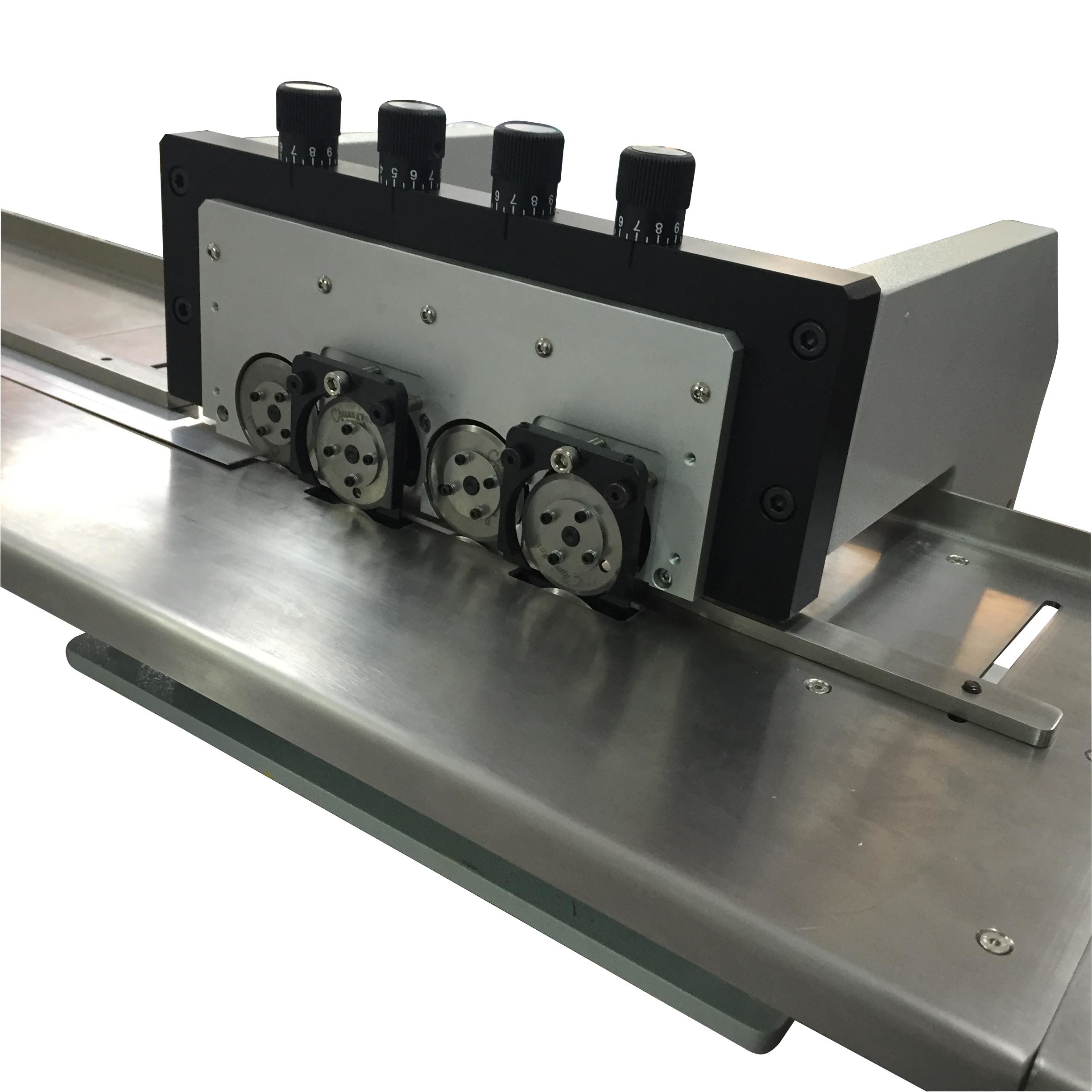

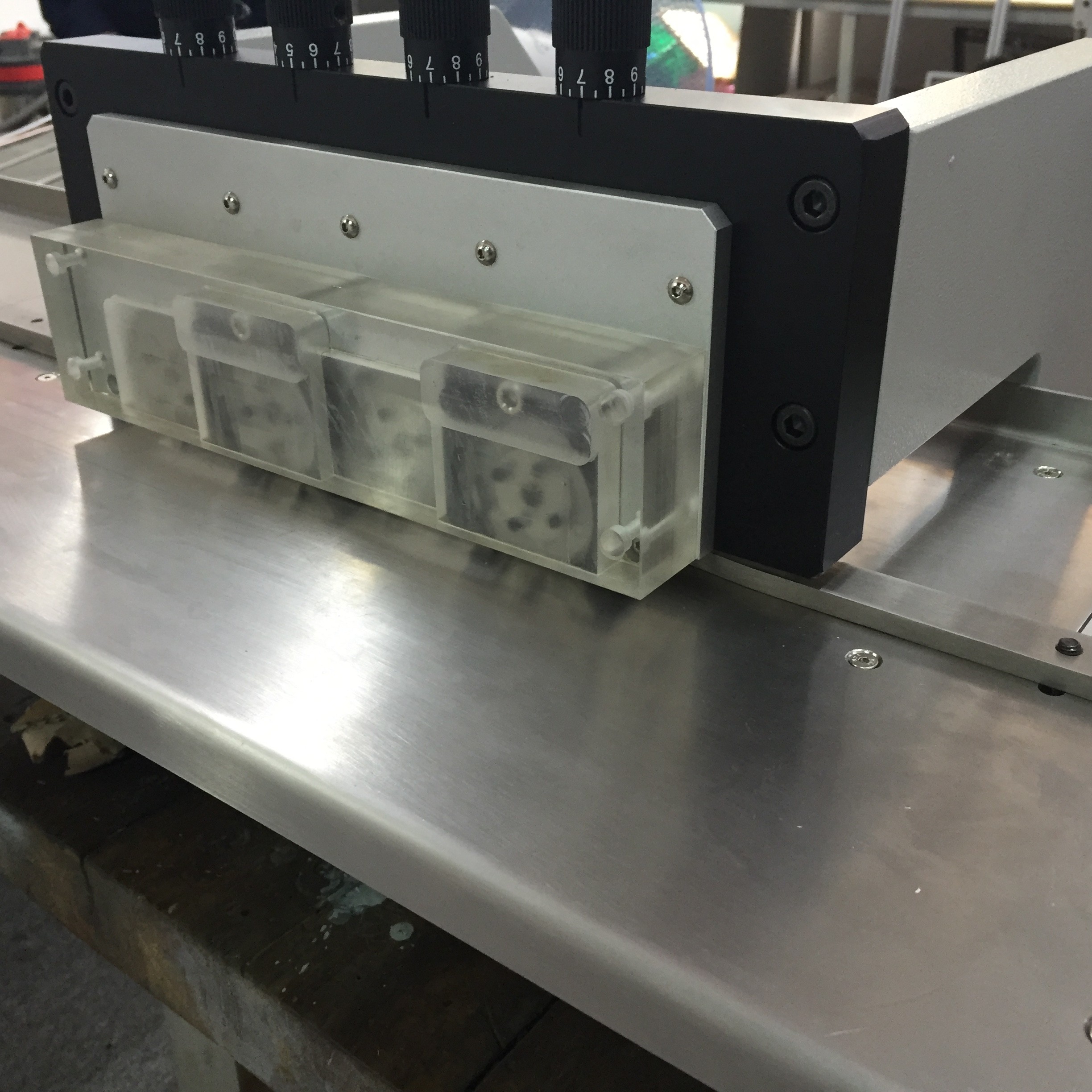

PCB Depaneling Machine For LED Lighting MCPCB Strip Panel PCB Separator
Feature:
1. Guide can be adjusted vertically to suit different LED board.
2. Clearance between the circular blades can be precisely
adjusted by the knob
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to customer's specifications .
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect
7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)
Specification :
| Max PCB width | 12mm |
| Platform | 1.5 M /2.4 M length |
| Machine Size | 40*40*34 cm |
| The Longest Minimize | No limited |
| Minimize Speed | 0-520mm/s |
| Minimize thickness | 1.0-3.5mm |
| Machine Weight | 70Kg |
CE Approval
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our missionOngoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
