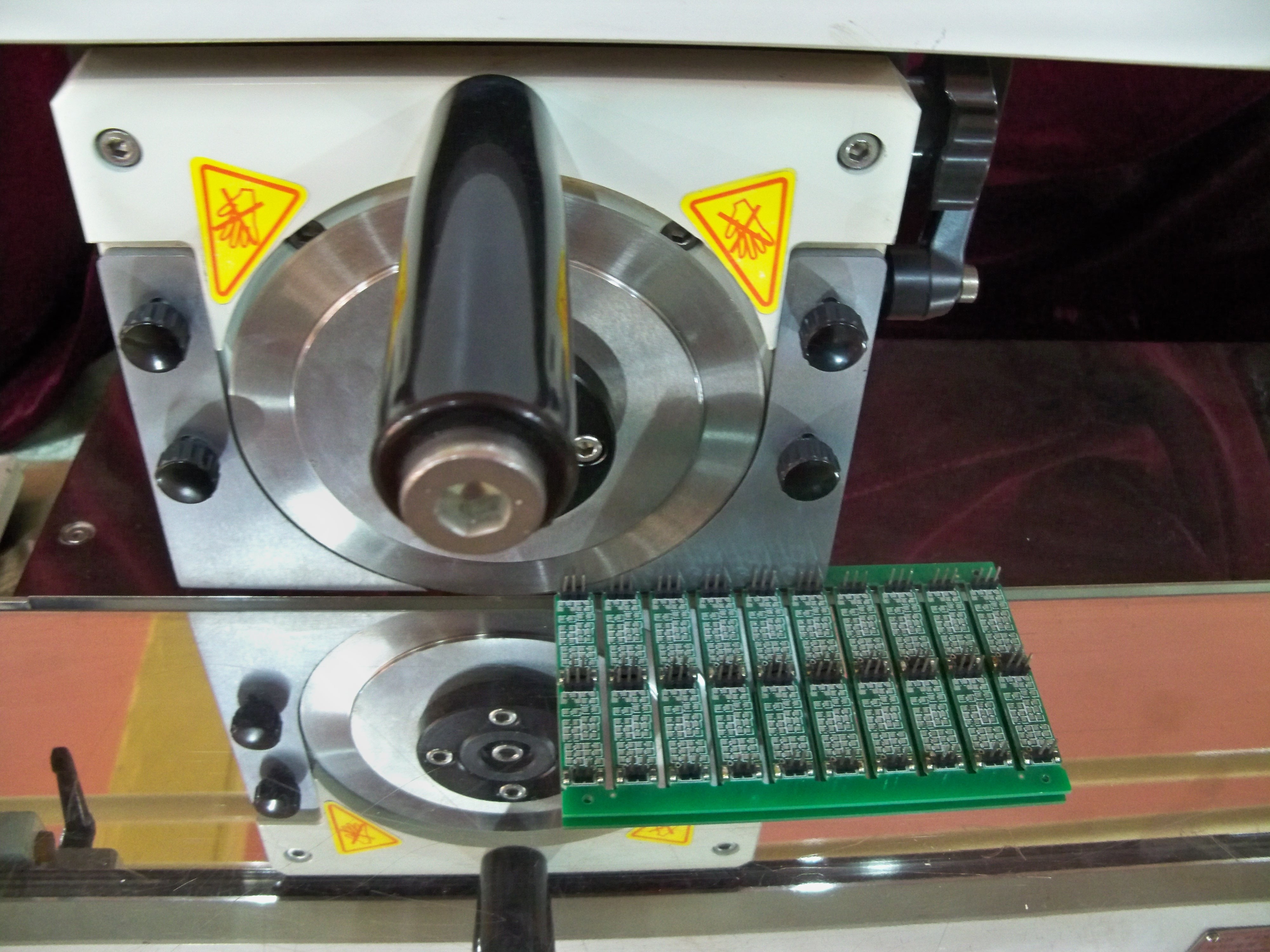

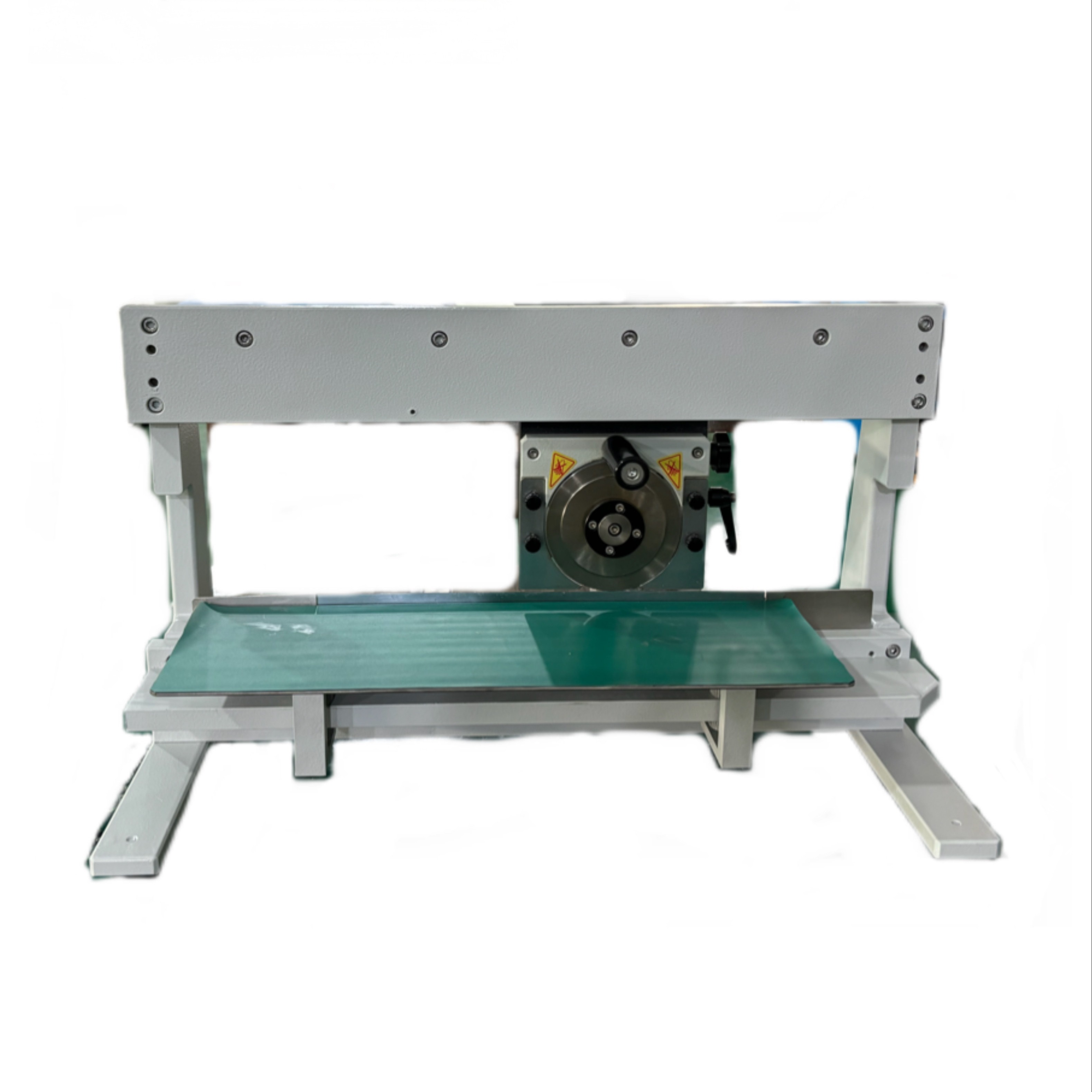

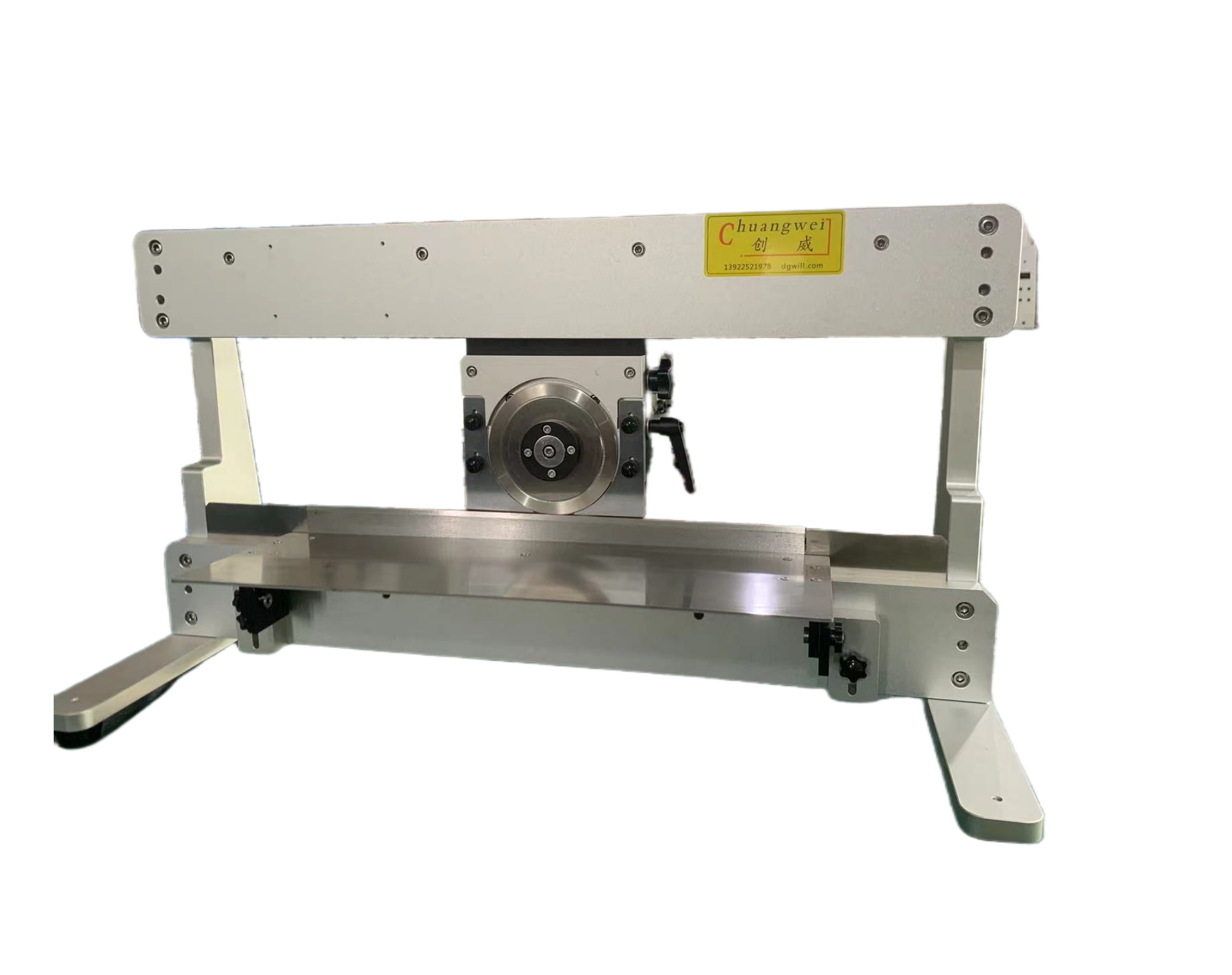

Manual V-groove Pcb Depaneling With Two Blades Cutting LED Light Bar
Specification for pcb depaneling machine :
| Model | SMTfly-1M460 |
| Max. PCB cutting length | 460mm |
| PCB cutting thickness | 0.6-3.5mm |
| PCB cutting speed control | by hand |
| PCB cutting machine size | 787x400x436mm |
| PCB cutting machine weight | 30Kg |
| Model | SMTfly-1M720 |
| Max. PCB cutting length | 720mm |
| PCB cutting thickness | 0.6-3.5mm |
| PCB cutting speed control | by hand |
| PCB cutting machine size | 1027x400x436mm |
| PCB cutting machine weight | 45kg |
Detailed Product Description :
1 . For electronics, cell phones, computers, PCB, FPC ( flexible printed circuit board ) , LED .
2 . Mold make of SKH-11 Steel, Blade is SKH-9 ( From Japan ), Rigorous Job !
Technical characteristics :
1 . Structural precision , the load evenly , to eliminate internal stress
2 . Safe , easy to operate
3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )
Features :
1. It is pneumatically driven and electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully , without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2. No vibration during the process to prevent damage to precise PCB
3. Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4. Lower knife height adjustable, no thin plates are required after re-sharpening the cutting blade
5. Operation and maintenance can be done also by unskilled personnel .
Our Advantages :
1. SMTfly-1M Pcb depanelizer original manufacturers , price concessions
2. Promise day technical support services
3. Limit the handling of complaints , half an hour back to customers
4. Depanel Experts , the provision of professional PCB sub-programme
5 . Reliable machine maker , we get Experts--15 , each one got over 6 years
experience , equipment quality will be satisfying .
