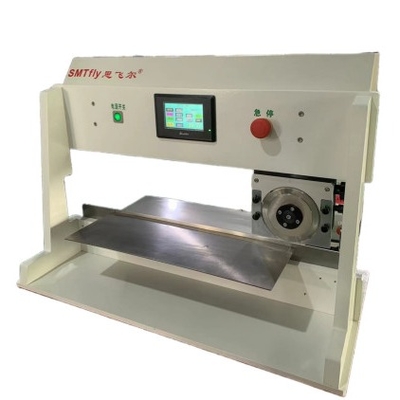

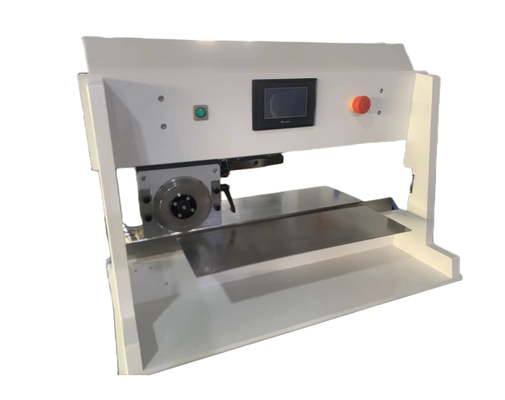

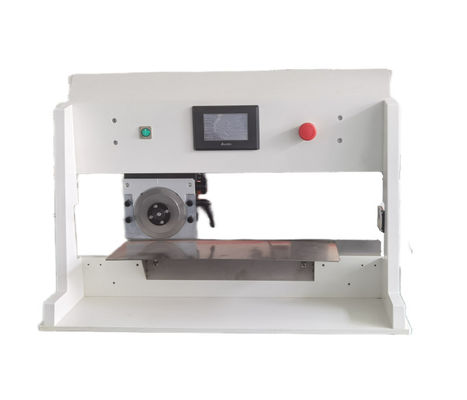

Blade Automatic Moving PCB Separator After SMT Process CE Approved
1 . blade move automatically and separate both small and large PCBs fast and economically
2 . specially for resin substrate PCB with pre-scored V groove
3 . safety use and easy operation
Features for PCB separator :
1 . Separate pre-scored PCB assembly without stress on either PCB or component
2 . One touch programming of cut length with digital display
3 . Separating speed is adjusted by a rotary knob
4 . Handle Intermittent scoring or cut-outs
5 , Board with projected component can be cut precisely
6 . Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7 . Optional PCB conveyor belt to remove finished board

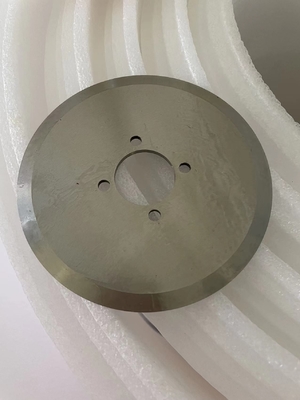

8 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Specifications:
|
Model: |
CWV-1A600 |
|
Size: |
1080*860*660mm |
|
Machine Weight: |
120Kg |
|
Minimize thickness: |
0.6-3.5mm |
|
Minimize Speed: |
100/200/300/500mm/s |
|
The Longest Minimize: |
600mm |
Competitive Advantage:
Our Service:
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
