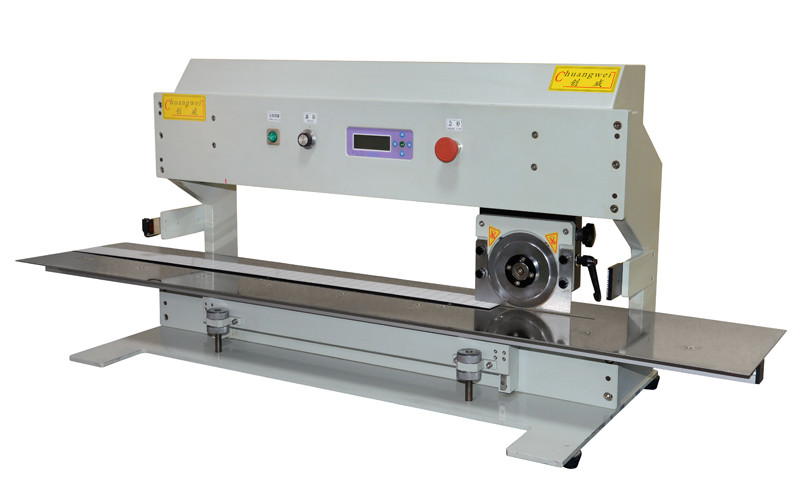

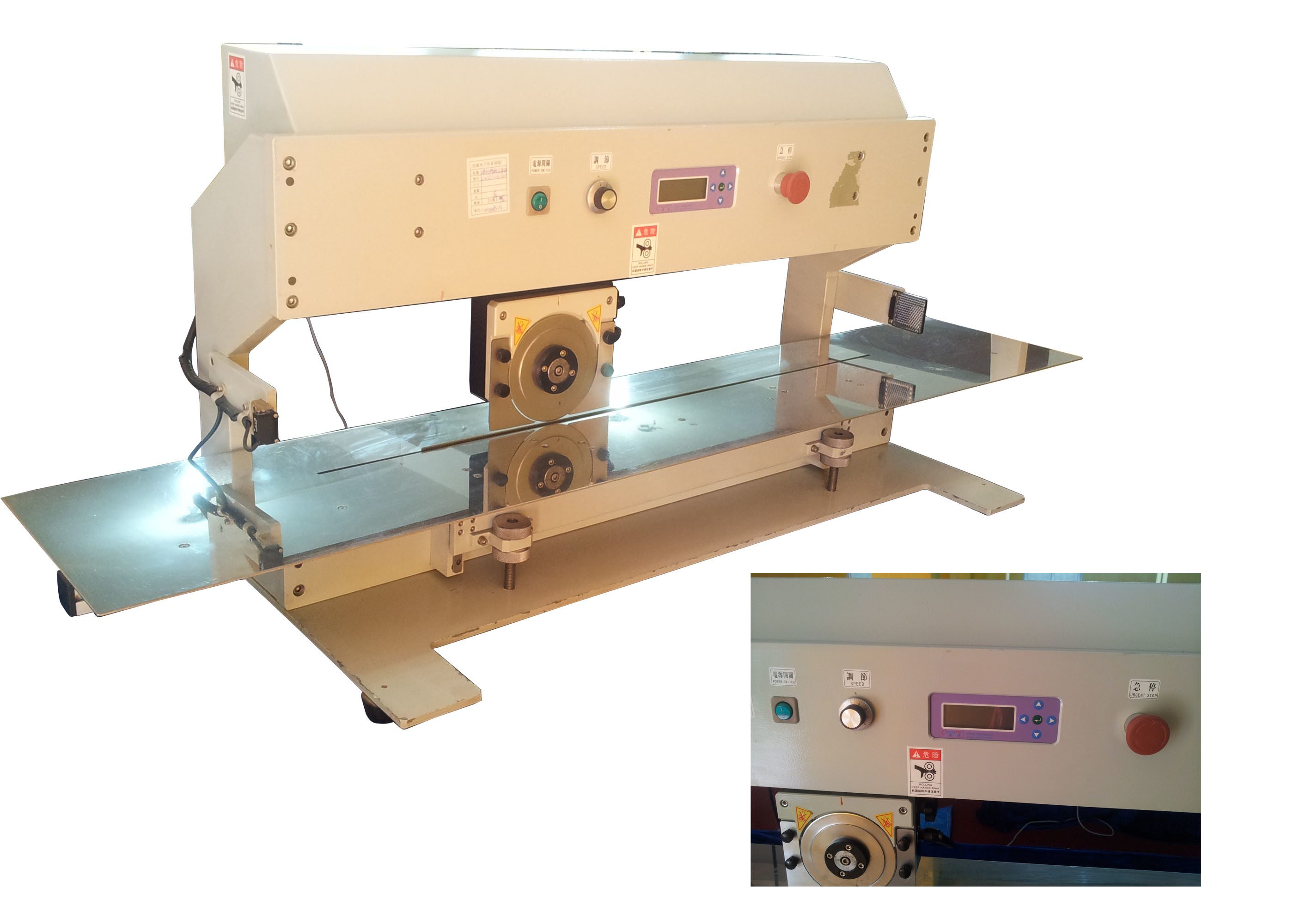

Automatic V-Cut Pcb Die Separator With Conveyor And Lcd Display
Detail:
1. Blade moves automatically and separate both small and large PCBs fast and economically
2. Especially for resin substrate PCB with pre-scored V groove
3. Safety use and easy operation
4. Use conveyor belt to improve production efficiency
Specification:
|
Model |
SMTfly-2A |
|
Max.PCB separating length |
460mm (can custom made) |
|
PCB separating thickness |
0.6-3.5 mm |
|
PCB separating speed |
100,200,300,500 mm/sec |
|
conveyor belt length |
1350mm(can custom made) |
|
Voltage |
Voltage: 110/220V |
|
PCB separator machine weight |
75kg |
|
PCB separator machine size |
770*460*570mm |
Feature:
1. Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2. Effectively reduce stress and prevent solder point chap from PCB separation.
3. PCB separation speed can be adjusted by a rotary knob.
4. PCB separation stroke can be set free and setting value can be shown with LCD.
5. Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out.
6. Use electric eye safety device, prevent harm from the operator.
7. Use conveyor belt to move away the separated PCB.
