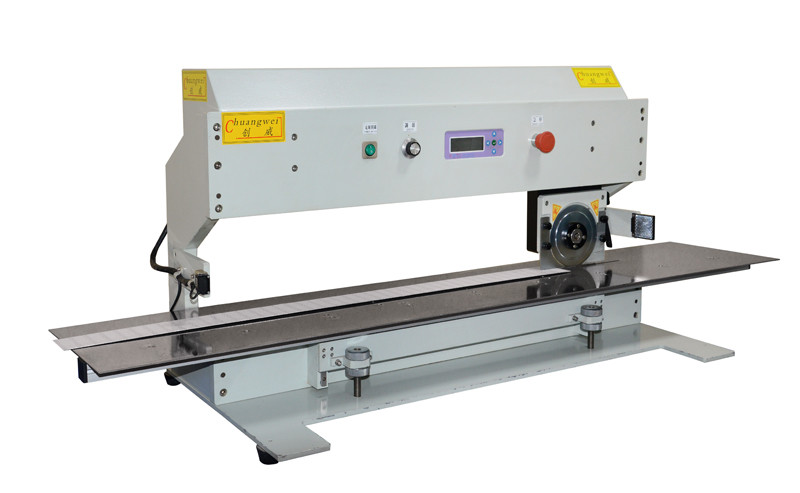

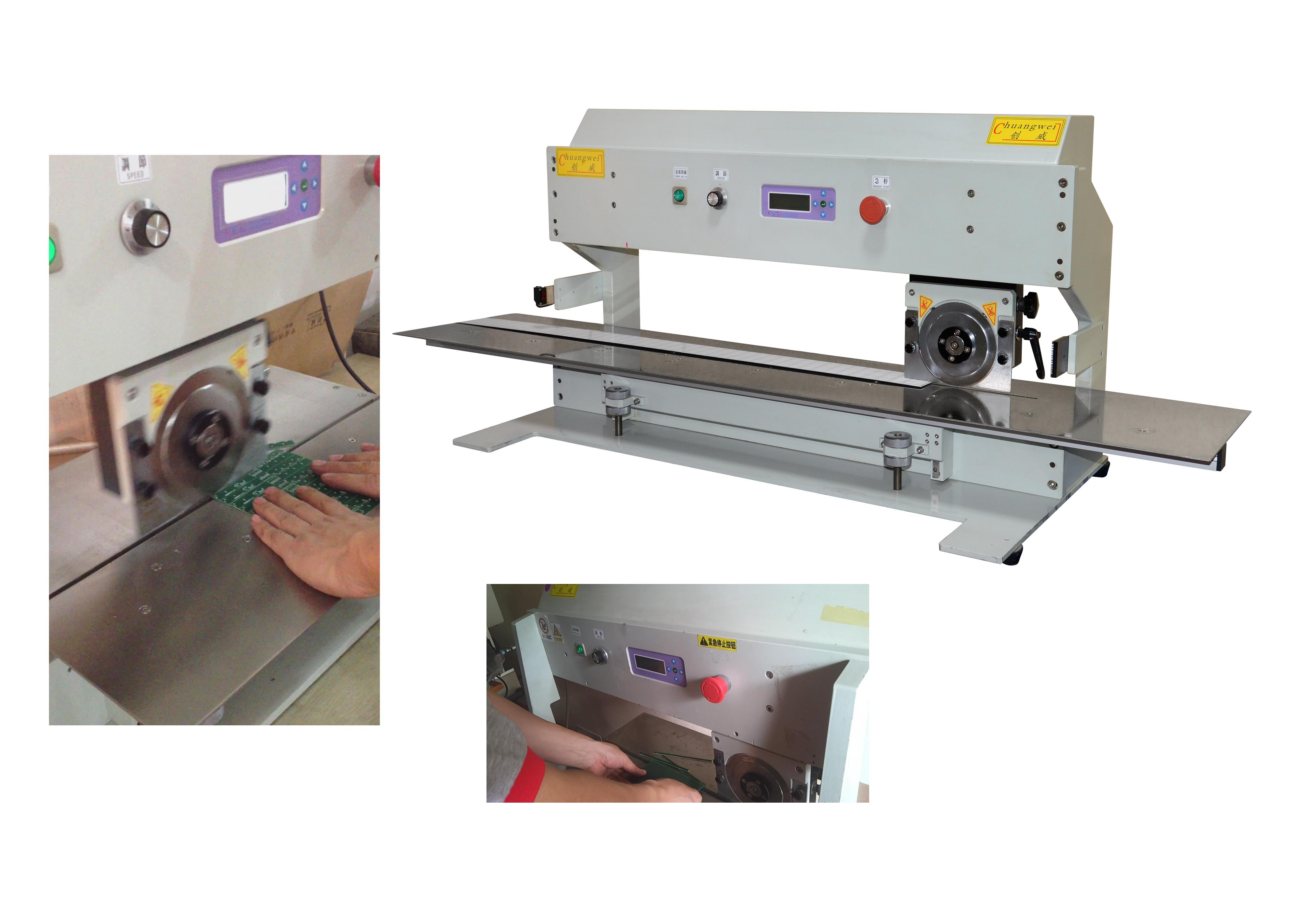

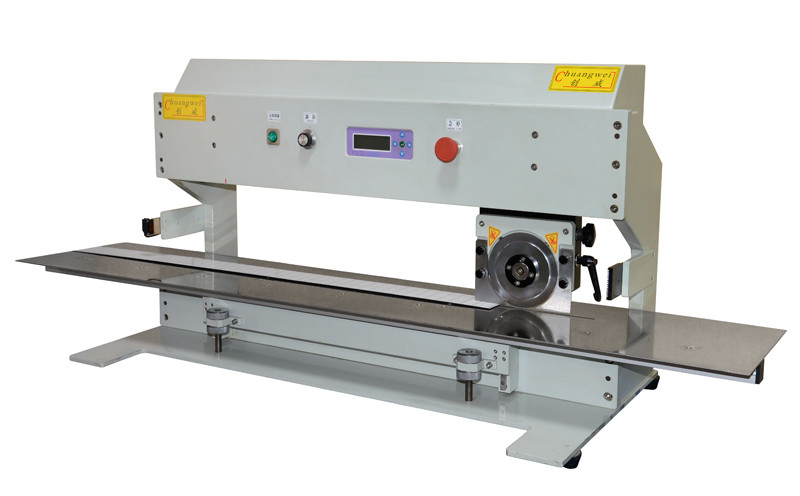

High-Efficiency V-cut Pcb Separator, Automatic Pcb Cutting Machine
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One-touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected components can be cut precisely
6. Large stainless steel platform on both sides of the cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove the finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Specifications:
|
Model: |
SMTfly-1A600 |
|
Size: |
1080*860*660mm |
|
Machine Weight: |
120Kg |
|
Minimize thickness: |
0.6-3.5mm |
|
Minimize Speed: |
100/200/300/500mm/s |
|
The Longest Minimize: |
600mm |
