LED Strip MCPCB 400 mm /s PCB Depaneling Machine 9 Pairs Of Blades Cutting

1 set
MOQ
Negotiable
Price
LED Strip MCPCB 400 mm /s PCB Depaneling Machine 9 Pairs Of Blades Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Length: Unlimited
Material For The Blades: HIgh Speed Steel
Number Of Blades: 9 Pairs
Blades Shape: Circlure Blades
Warranty: Machine Free For One Year
Machine Type: Automatic Type
High Light:

pcb assembly machine

,

metal cutter machine

Basic Infomation
Place of Origin: China
Brand Name: Chuangwei
Certification: Ce certifiate
Model Number: CWVC-1SN
Payment & Shipping Terms
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: Western Union, T/T, L/C, D/A, D/P
Supply Ability: 1000 sets / year
Product Description

PCB Depaneling Machine With 9 Pairs Of Blades Cutting LED Strip MCPCB

PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Specification :

Machine Model: CWVC-1SN
Max.Cutting length: unlimited
Blades material: High speed steel
Cutting speed: 400 mm /s
Voltage: 220 /110 V
Cutting thickness: 1.0-3.5 mm
Machine size: 2180 * 620 * 960 mm

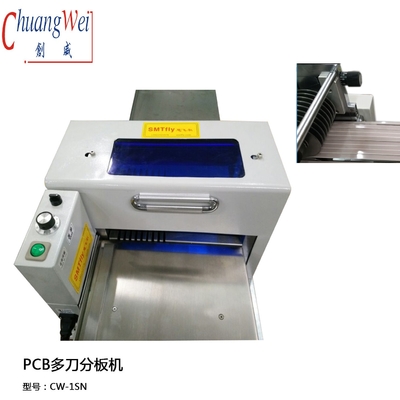

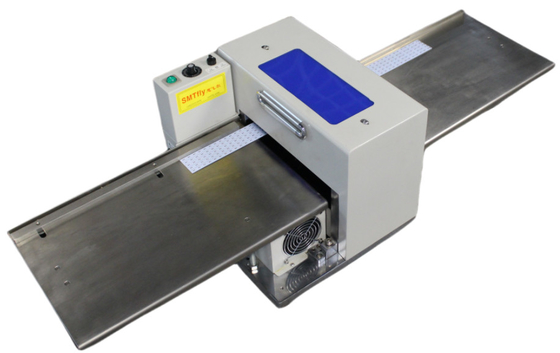

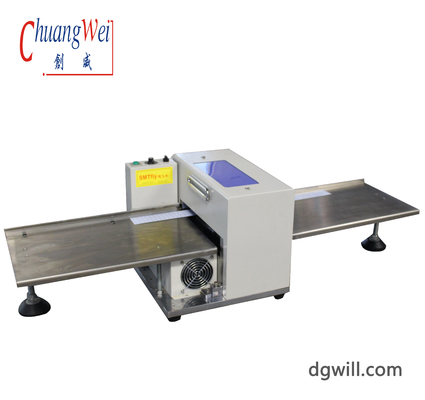

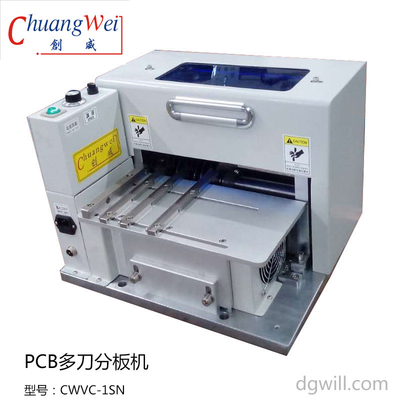

Detailed pictures for CWVC-1SN :

LED Strip MCPCB 400 mm /s PCB Depaneling Machine 9 Pairs Of Blades Cutting 0



PCB Depaneling machine with 9 pairs of blades,CWVC-1SN Features:

1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
2. It can cut 8 pcs boards with multiple sets of knives work at the same time.
3. The knife flywheel is adjustable and the distance between knives is regulable.
4. The blade is made of high-speed steel material, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
