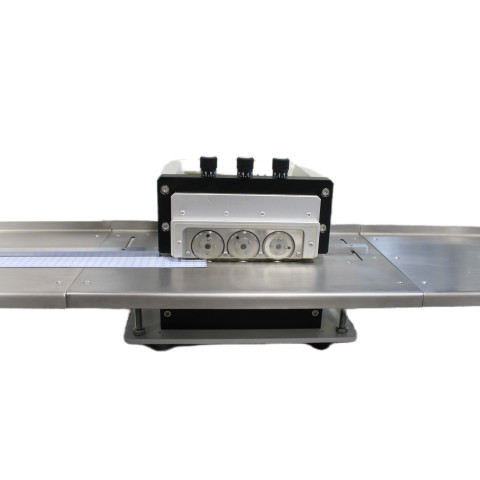

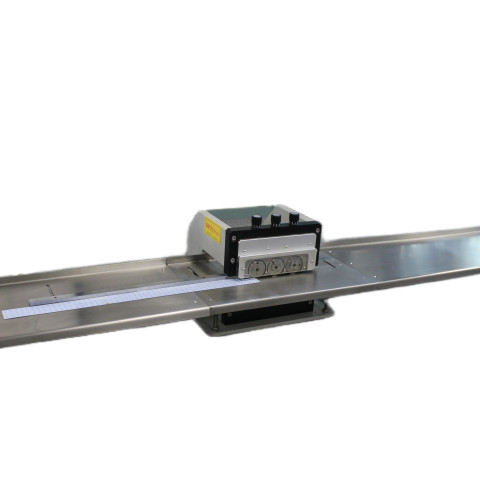

Multi Blade PCB Separator Separation LED Lighting Aluminium PCB Board
Pcb separator advantages :
1. Separates large numbers of PCBs without fatigue of the operator
2. Motor driven
3. The PCB is feed between the circular blades where it is seized, transported and separated
4. Different speeds can be selected
Specification for pcb separator:
| Model | CWVC-3S |
| machine size | 40*40*34 cm |
| platform size | 150*27*20 cm |
| mininze speed | 0-400mm/s |
| cutting thickness | 1.0-3.5mm |
| Max depaneling length | unlimited |
| Machine weight | 45 kg |
Features:
1 . It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2 . No vibration during the process to prevent damage to precise PCB
3 . Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4 . Lower knife height adjustable , no thin plates are required after re-sharpening the cutting blade
5 . It is safty .the plastic shell can protect the operators .
6 . The blades can be regrind .

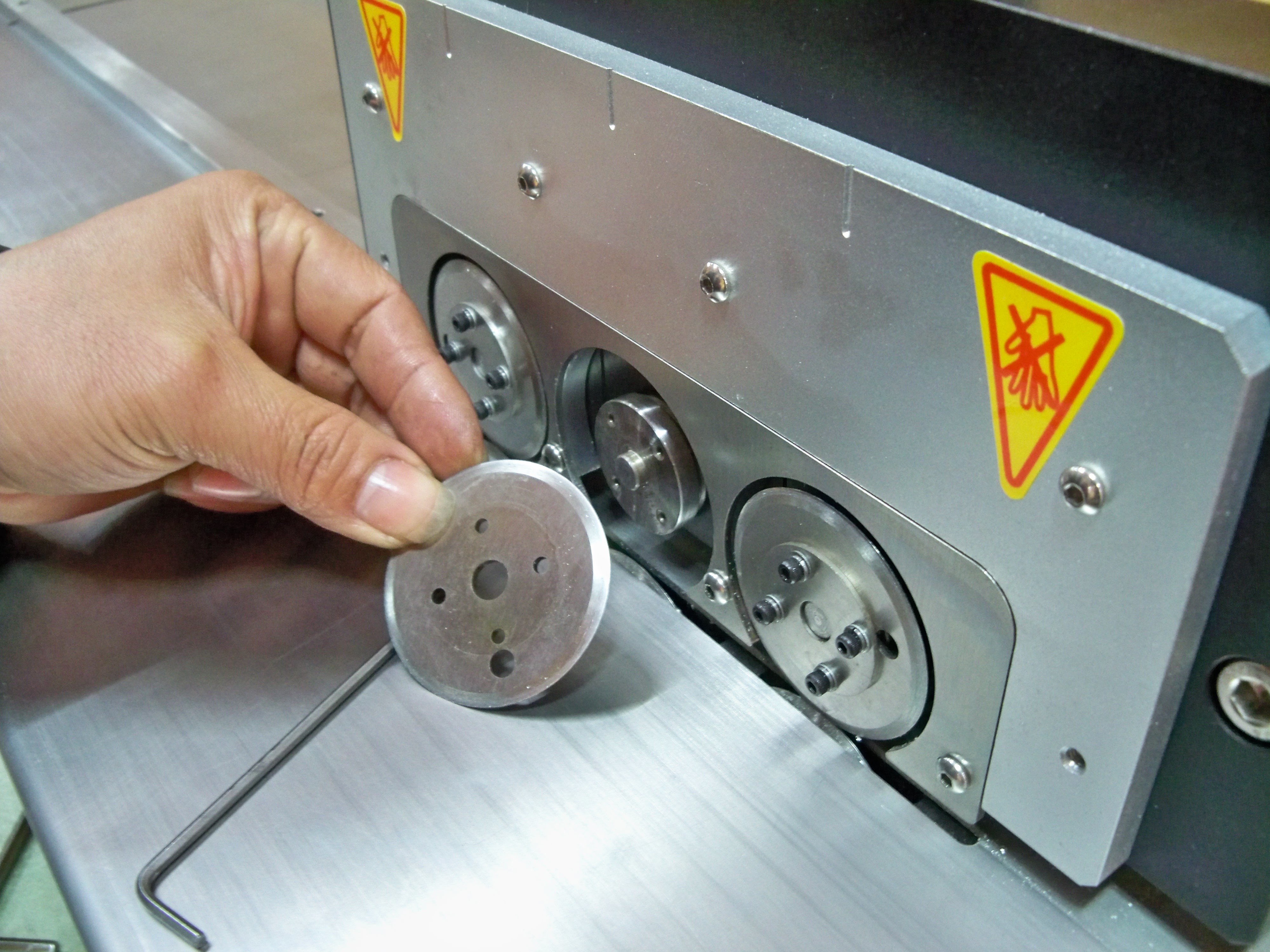

How to replace the blades:
1. Loosen screws of plastic shell
2. Remove the plastic shell
3. Loosen 4 screws
4. Remove the metal plate
5. Replace the old blades with new ones
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
