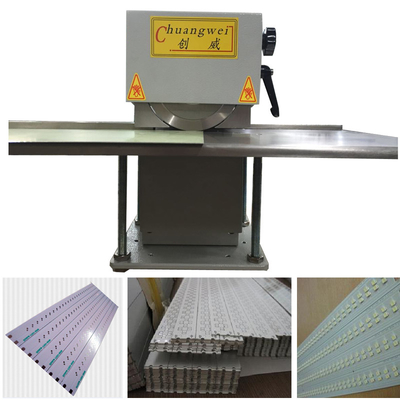

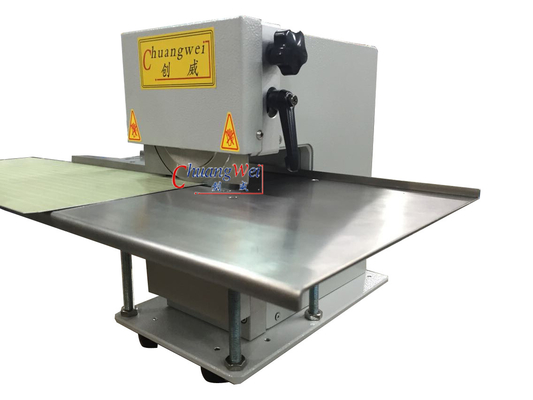

Pre Scoring PCB Separator Mini V Cut PCB Depaneling For LED Factory Specification:
Application PCB : V-CUT and S.9 M.T.PCB ( substrate )
Motor speed : Max 1380 / min ( adjustable )
Cutting speed : Max 0-24 meter / min ( adjustable )
Max PCB cutting width : 240 mm
Maximum board component height : 40 mm
Max V-CUT Thickness : 0.6-2.0 mm
Voltage : 220V / 110V ,50HZ
Weight : 45kg
Size : 350 * 300 * 400 mm
Power : 40W
Machine features:
Suitable for the engraving of the plates with V-cut groove , reduce the stress , can prevent the solder joint to crack effectively .
Made of high intensity aluminum alloy except the machine frame .
Simple constructure , light weight , more easy and convenient to move and ship .
Bottom blade adjustable function : The bottom blade base is fine adjustable , it is convenient to operate the point to point .
The top and the bottom guide plate can be adjusted manually to solve the problem of the different height caused by the V-CUT groove .
The top blade base adjust range : 0 ~ 7 mm .
High Efficiency : Vmax = 550 mm / s ( Adjustable ) .
High accuracy and safe , easy to operate and maintenance .
The width of the plate that can be cut : 0.6 mm ~ 3.0 mm ( the length is no limit ) .
