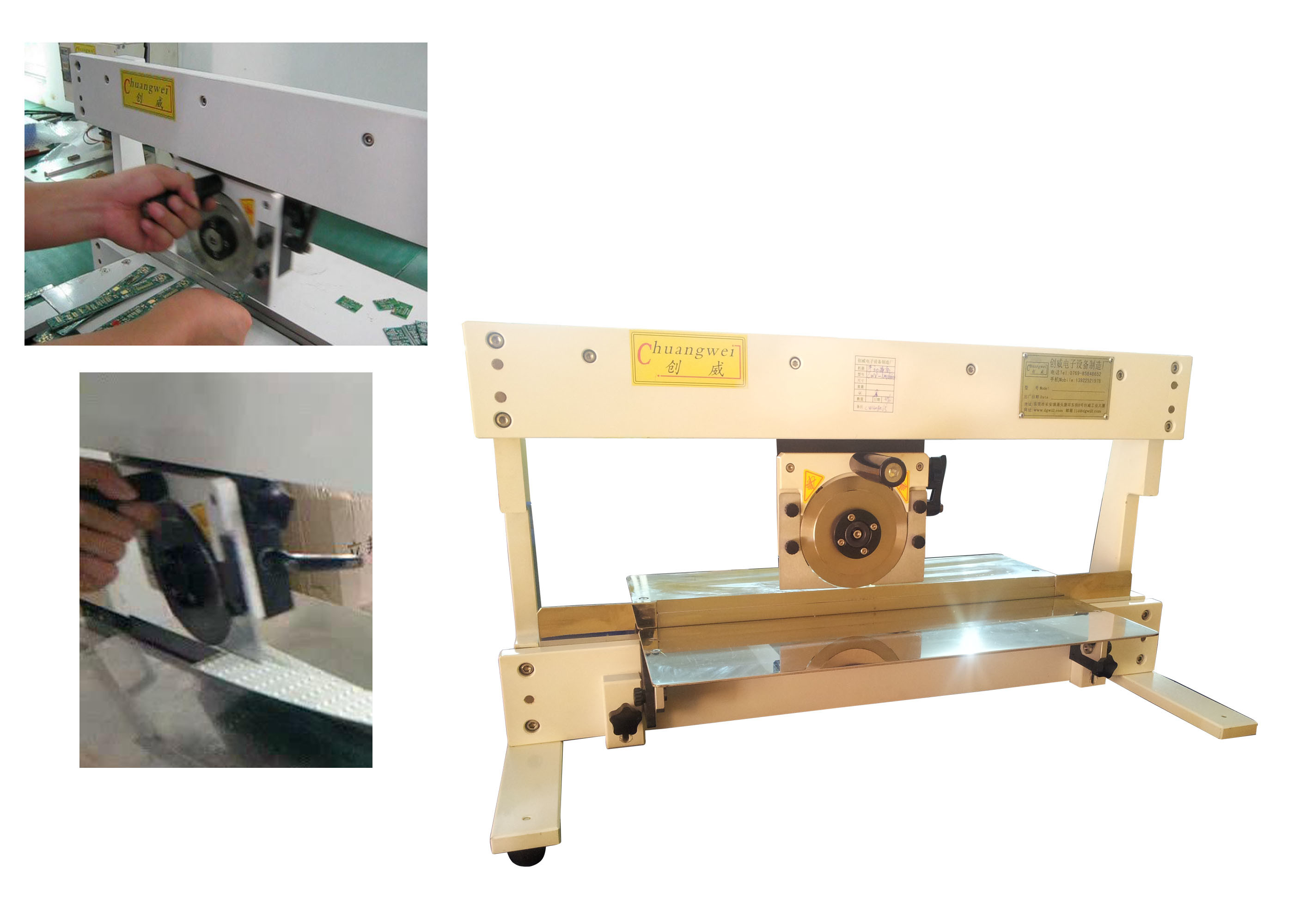

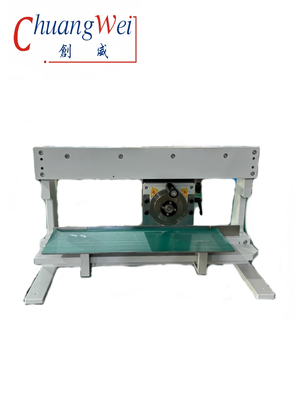

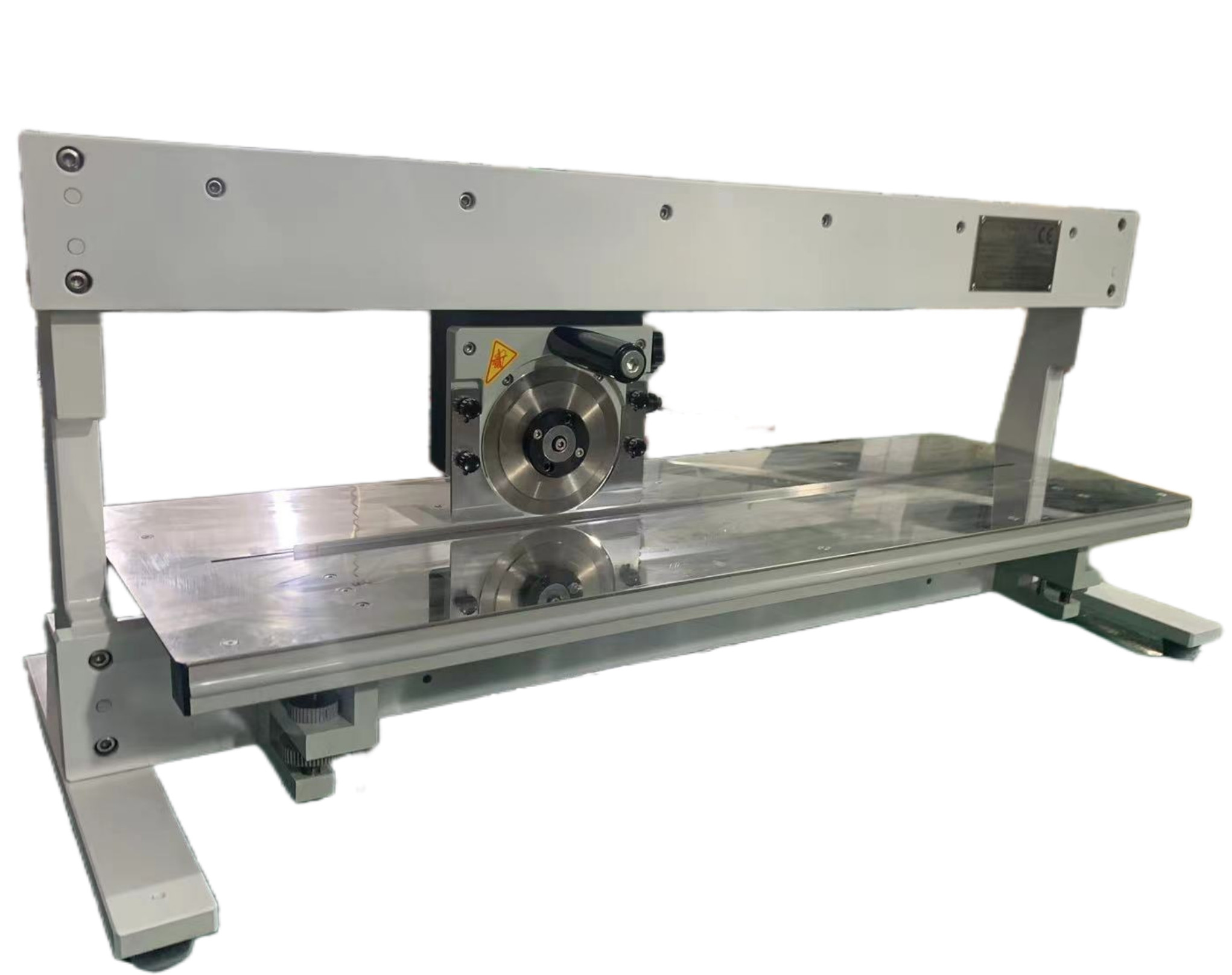

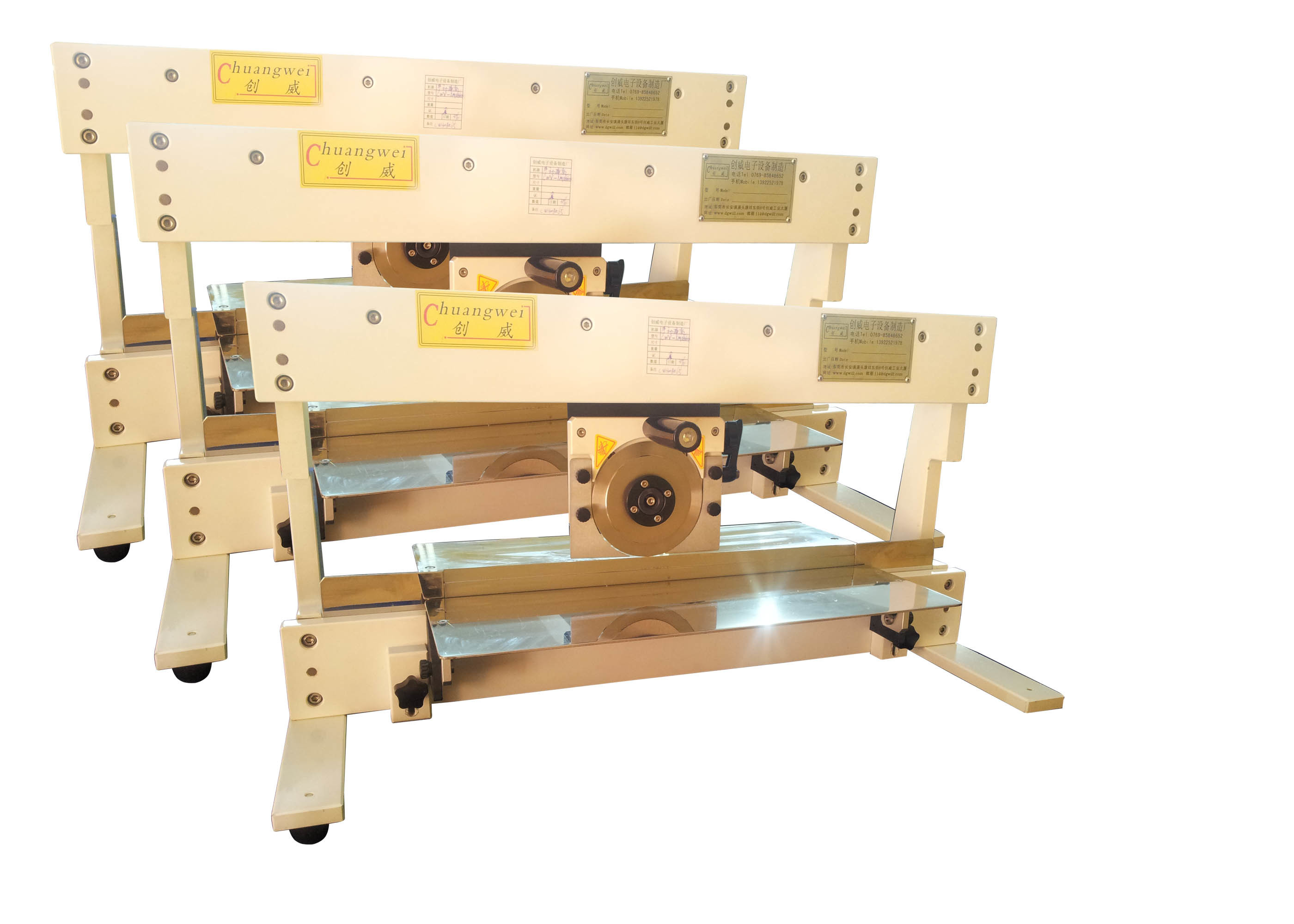

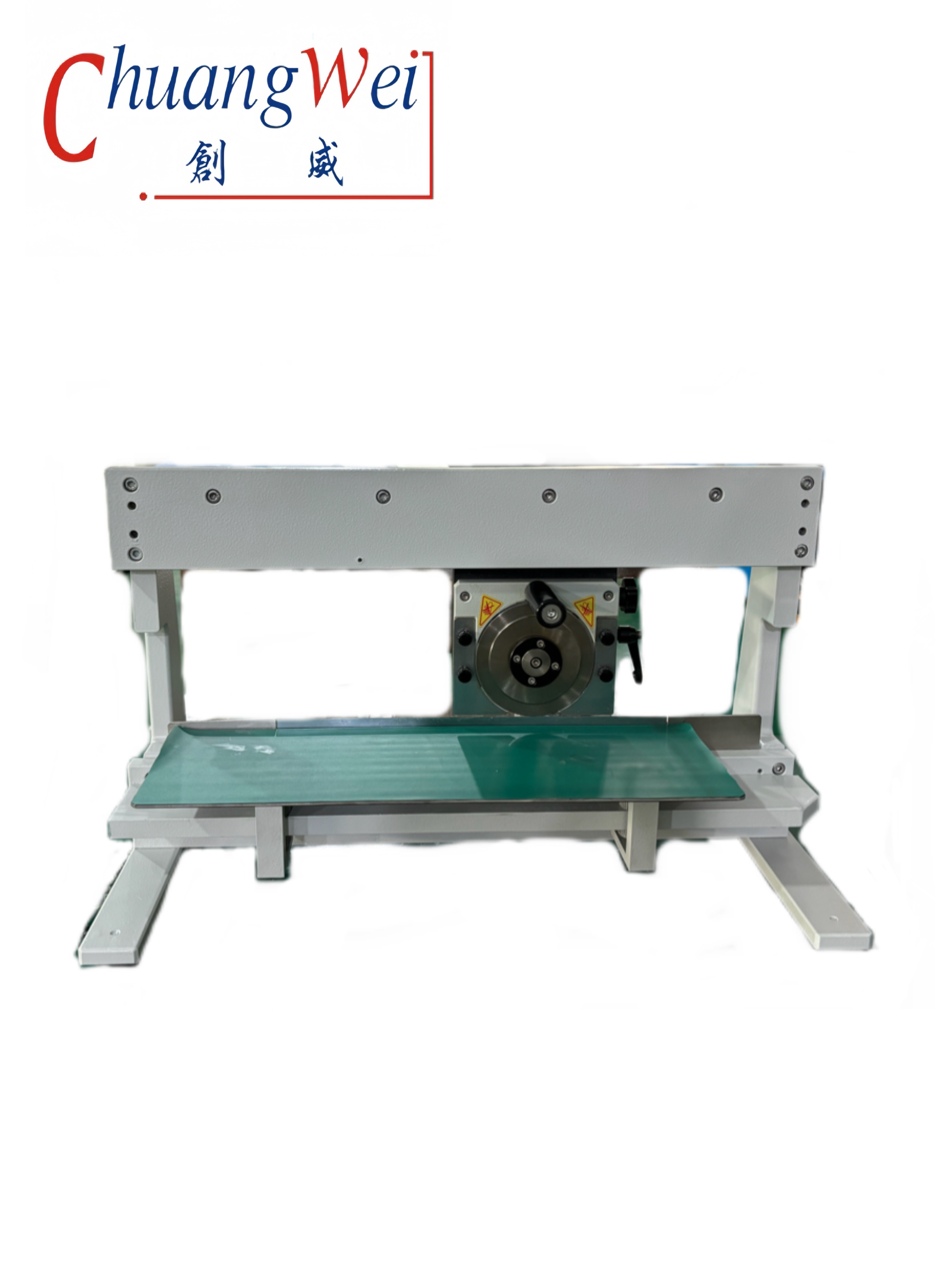

Printed Circuit Board PCB Depaneling Machine Manual Type Specification:
|
Model |
CWV - 1M |
|
PCB Cutting Length (mm) |
460/700/1000/1500 |
|
Cutting Speed (mm/s) |
manual |
|
Cutting Thickness (mm) |
0.6 ~ 3.5 |
|
pcb depanelizer machine size (mm) |
400*780*480 |
|
Machine Weight (Kg) |
55 |
|
Guarantee |
1 Year |
|
machine delivery time |
within 3 days after receive the payment |
|
Ability |
1000 Sets /year |
|
Min. Order |
1 Set |
Detailed Product Description:
1 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )
2 . Mold make of SKD-11 Steel , Blade is SKD-9 ( From Japan ) , Rigorous Job!
Technical characteristics:
1. Structural precision , the load evenly , to eliminate internal stress
2 . Safe , easy to operate
3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )
Feature:
1 . Round knife , manually cutting against lower linear knife , for reduced stress
2 . Separate pre-scored PCB assembly without stress on either PCB or component
3 . One touch programming of cut length with digital display
4 . Separating speed is adjusted by a rotary knob
5 . Handle Intermittent scoring or cut-outs
6 . Board with projected component can be cut precisely
7 . Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8 . Optional PCB conveyor belt to remove finished board
9 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our missionOngoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
