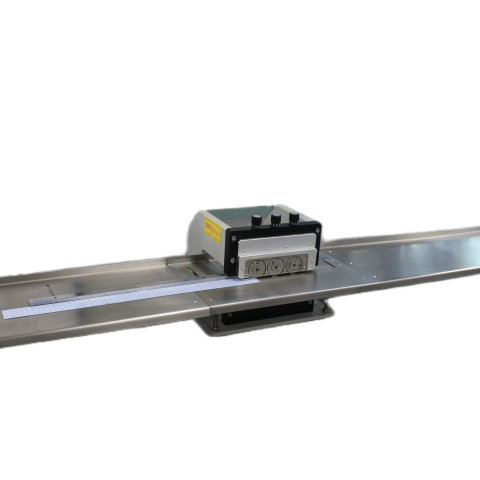

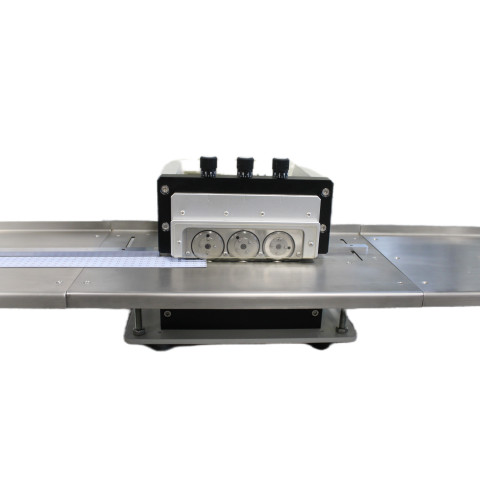

LED PCB Separator Machine With No Limited Cutting Capactity
Specifications
1. V-cut PCB Electrostatic Separator
2. PCB 0.8 to 3.5mm
3. Long platform should be customized
4. PCB length unlimited
5. cut speed 0 to 400mm/s
| Max PCB length | no limit |
| PCB Thickness | 0.8 to 3.5 mm |
| Working Speed0 | 0 to 400mm/s |
| Voltage | 220VAC |
| House color | white |
| Machine Weight | 40kg |
Features:

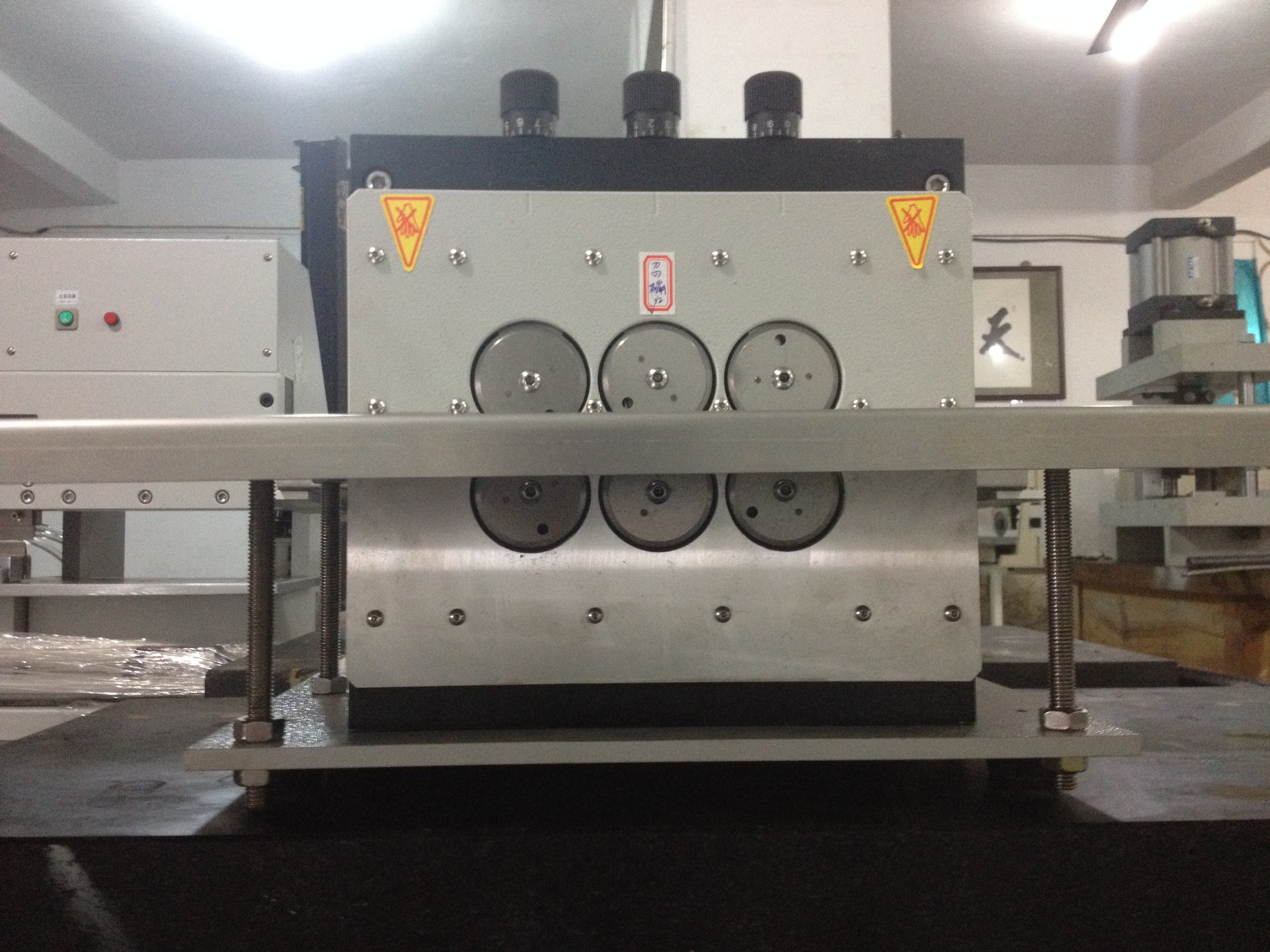

1.Three pairs of precision beveled cutting blades can ensure the board does not bend, or deform
2.Guide can be adjusted vertically to suit differenct LED boards
3.Depth between upper circular blades can be precisely adjusted to reduce stress on score-line edge and blade wear
4.Blades are motor driven (110 or 220 volt)
5.Upper and lower circular blades can be resharpened
6.2.4M stainless steel platform is standard; optional lengths avaiable
Applications:
Replacement of blades:
1.Loosen screws of shell
2.Remove the plastic shell as following picture
3.Loosen 4 screws of blade
4.Remove the metal plate as followings:
5.Remove the old blade and replace a new one
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
