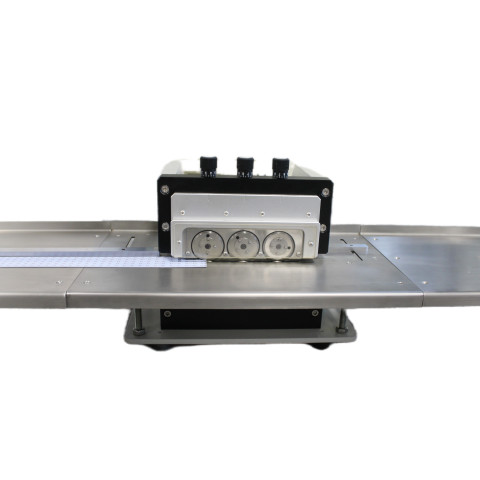

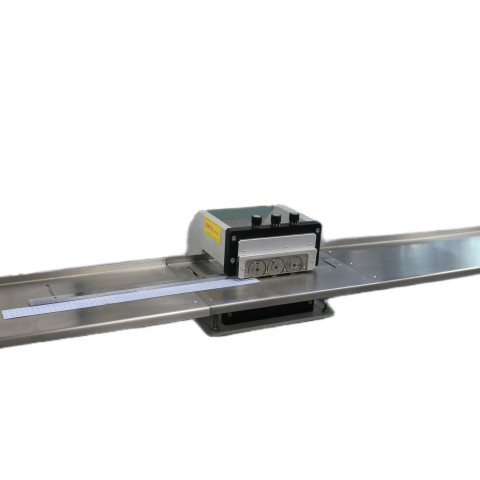

Long Platform PCB Depaneling Machine / V-cut PCB Electrostatic Separator Specifications:
1. V-cut PCB Electrostatic Separator
2. PCB 0.8 to 3.5mm
3. Long platform should be customized
4. PCB length unlimited
5. cut speed 0 to 400mm/s
| Max PCB length | unlimited |
| PCB Thickness | 0.8 to 3.5 mm |
| Working Speed | 0 to 400mm/s |
| Voltage | 220VAC |
| House color | white |
| Machine Weight | 40kg |
Features:

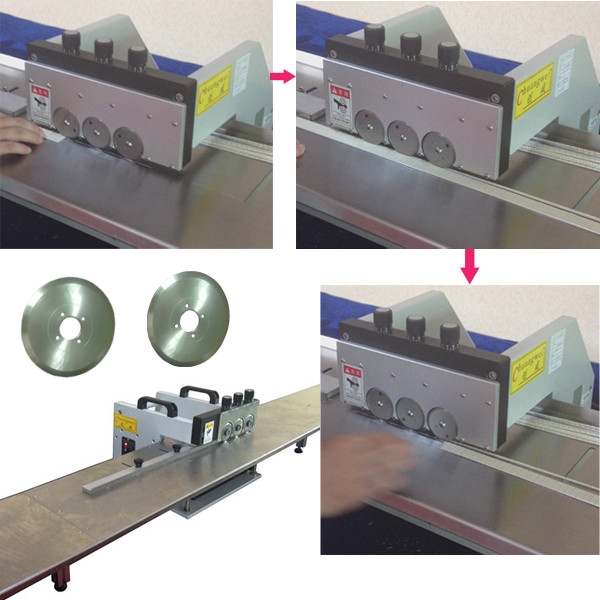

1. this machine applies unique multi sections cutting, the cutting is to be finished by 6 pieces round blade,
2. Working process is pretty smooth, due multi sections cutting
3. there won`t be any deviation when cutting along the v-cut slot, even the v-cut slot is shallow
4. the blade made by high speed steel imported from Sweden, which prolonged the life of the blade
5. precise adjustment of up and down blade.
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
