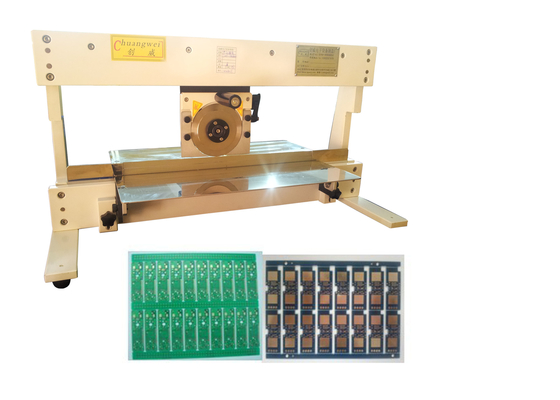

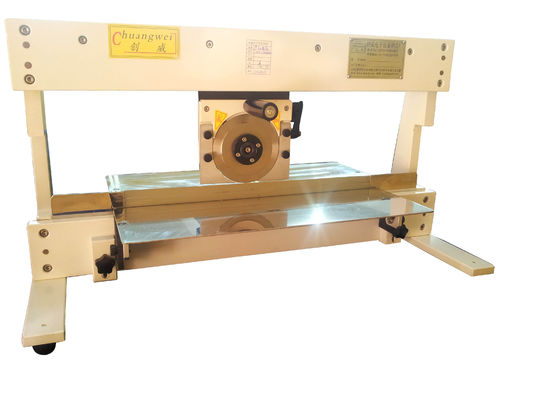

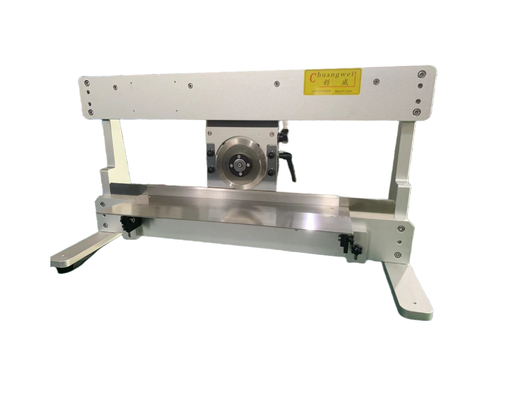

Manual PCB Depaneling Machine LCD program Control no vibration
1.The price is very economical
2.Easy maintanance and operation
3.Low bending stress,no vibration
Specifications:
| Model | CWV-1M460 |
| Max. PCB singulation length | 460mm |
| PCB singulation Thickness | 0.6-3.5mm |
| PCB singulation speed control | by hand |
| PCB singulation machine size | 787x400x436mm |
| PCB singulation machine weight | 30Kg |
Descriptions:
1.Singulation type:upper component side(circular blade),bottom solder side(linear blade).
2.Singulation for small and large PCBs with pre-scored V groove.
3.Singulate pre-scored V groove PCB assembly without stress on either PCBs or component.
4.Singulating speed is controlled by hand and very easy operation.
5.Large stainless steel platform on both side of cutting blade prevents PCBs shaking and the table height and angle could be adjustable.
6.The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCBs.
7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.
Manual V-CUT PCB singulation machine operation:
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our missionOngoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
