PCB Depaneling For Mobile Electronics Industry With Japan High Speed Steel Blades
The most professional PCB singulation machine manufacturers in China.

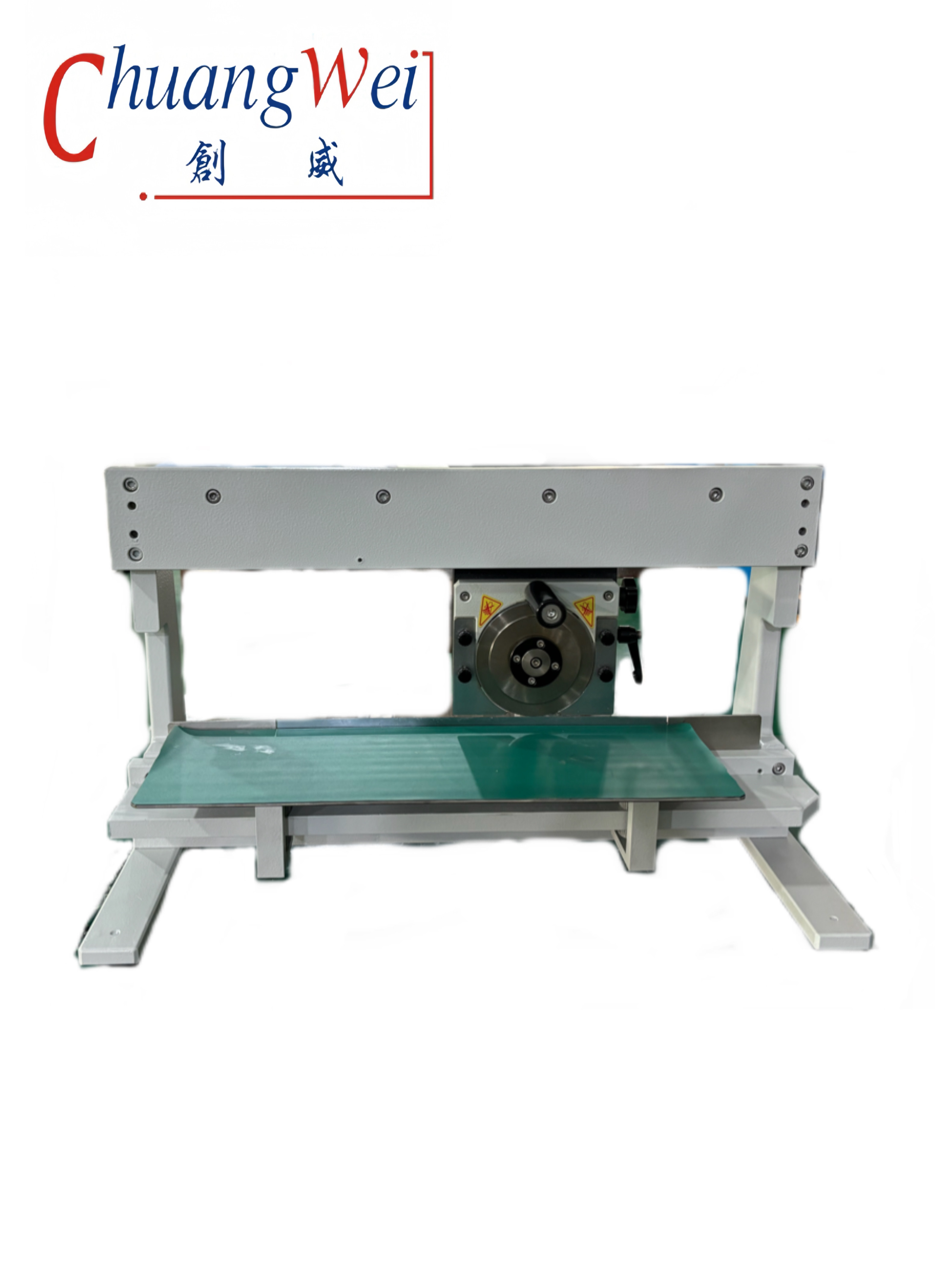

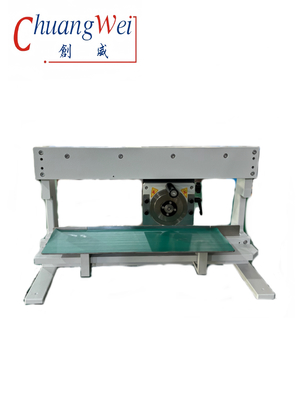

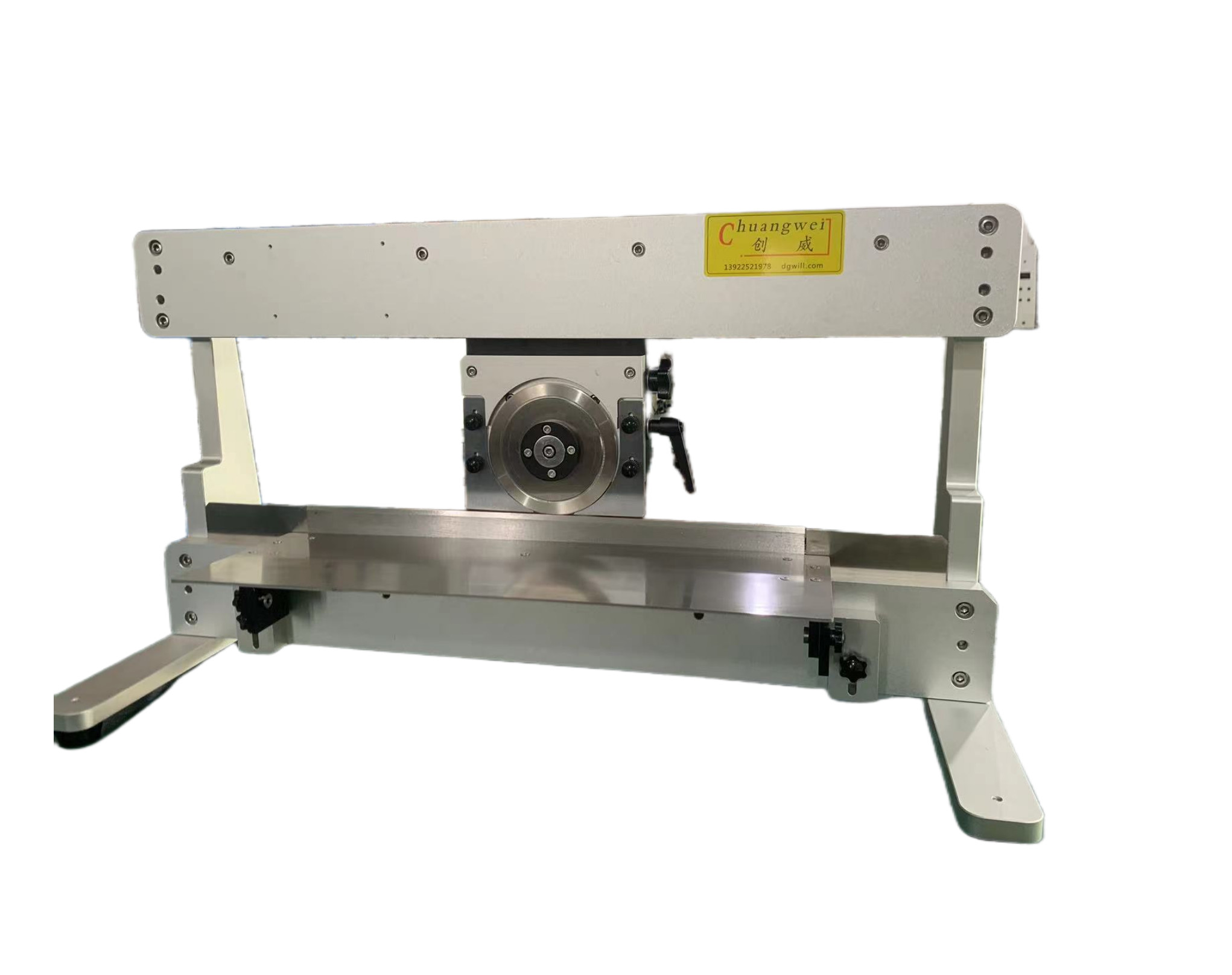

[ Chuangwei Manual V-CUT PCB singulation machine ]
1. The price is very economical
2. Easy maintanance and operation
3. Low bending stress,no vibration
[ Chuangwei Manual V-CUT PCB singulation machine specifications: ]
| Model | CWV-1M460 |
| Max. PCB singulation length | 460mm |
| PCB singulation Thickness | 0.6-3.5mm |
| PCB singulation speed control | by hand |
| PCB singulation machine size | 787x400x436mm |
| PCB singulation machine weight | 30Kg |
| Model | CWV-1M720 |
| Max. PCB singulation length | 720mm |
| PCB singulation thickness | 0.6-3.5mm |
| PCB singulation speed control | by hand |
| PCB singulation machine size | 1027x400x436mm |
| PCB singulation machine weight | 45kg |
Clients Feedback
[ Chuangwei Manual V-CUT PCB singulation machine descriptions: ]
1. Singulation type:upper component side(circular blade),bottom solder side(linear blade).
2. Singulation for small and large PCBs with pre-scored V groove.
3. Singulate pre-scored V groove PCB assembly without stress on either PCBs or component.
4. Singulating speed is controlled by hand and very easy operation.
5. Large stainless steel platform on both side of cutting blade prevents PCBs shaking and the table height and angle could be adjustable.

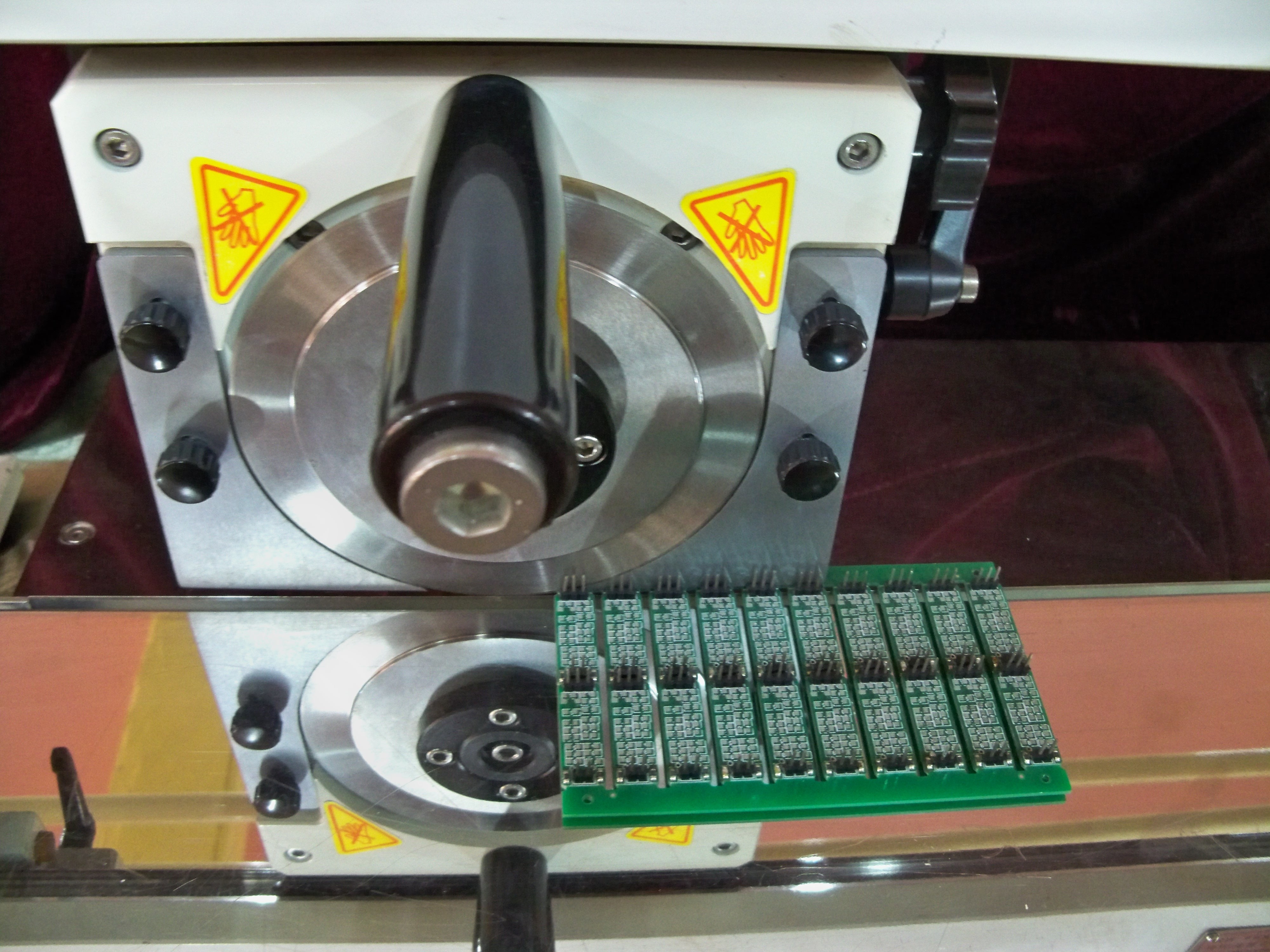

6. The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCBs.
7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.
