Automatic V Cut PCB Singulation Machine For Printed Circuit Board Nibbler LED
The most professional PCB singulation machine manufacturers in China.

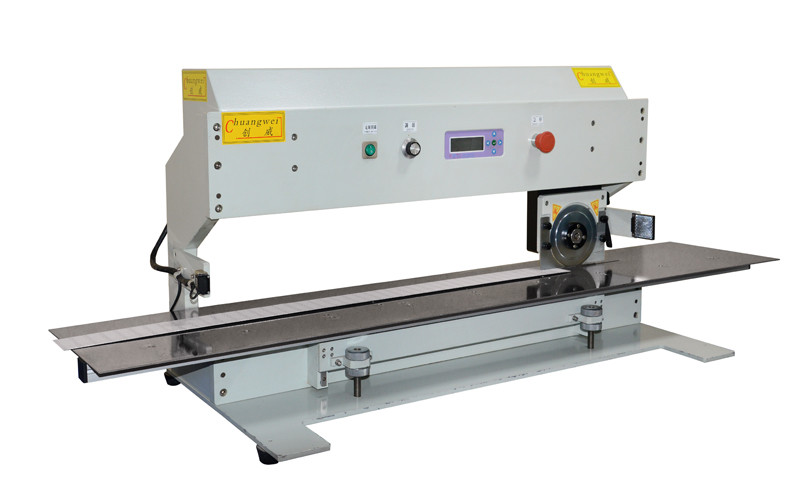

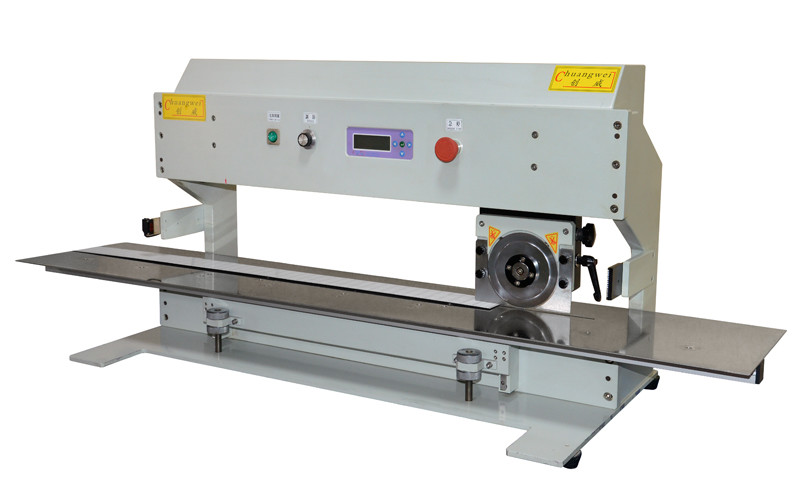

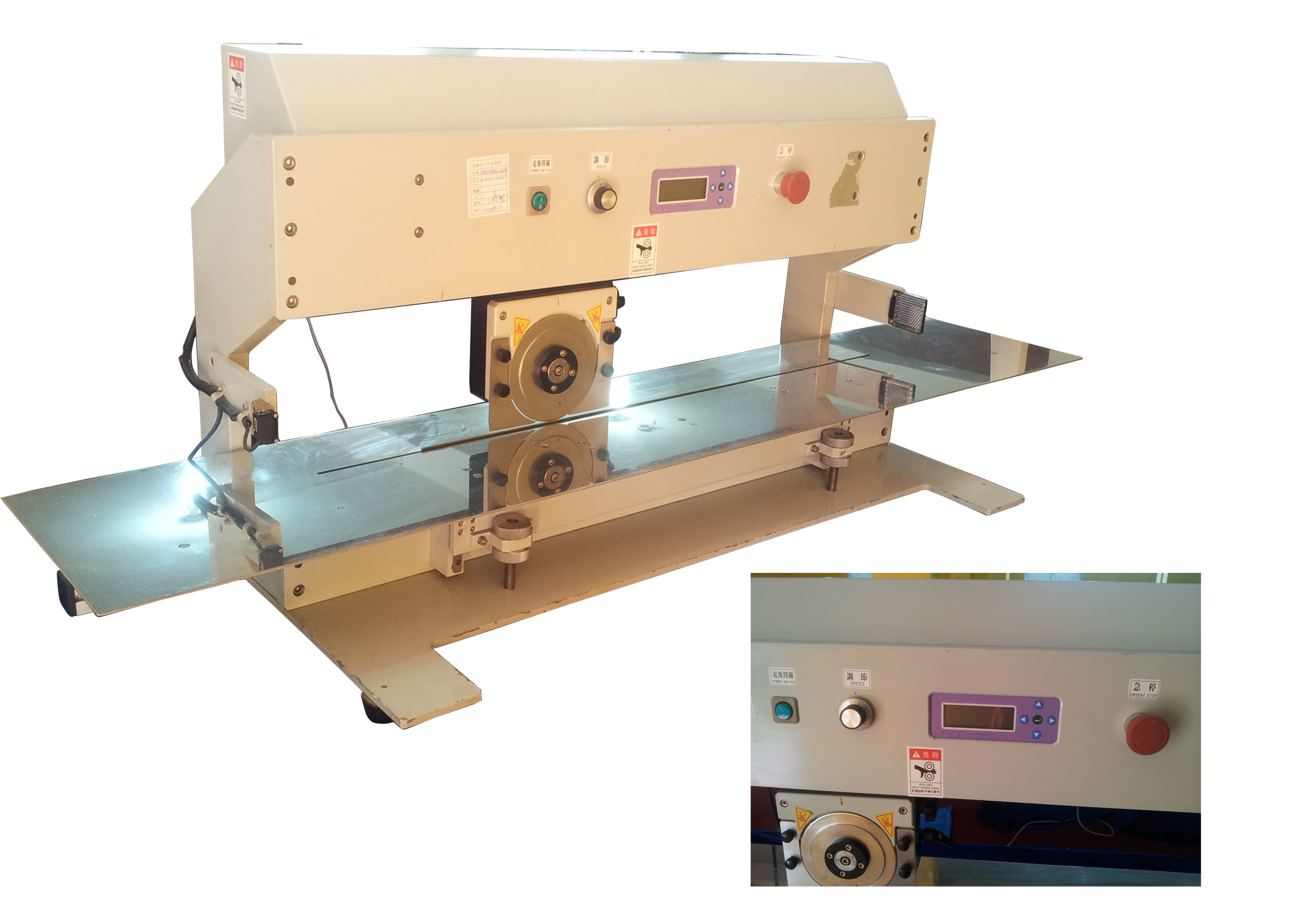

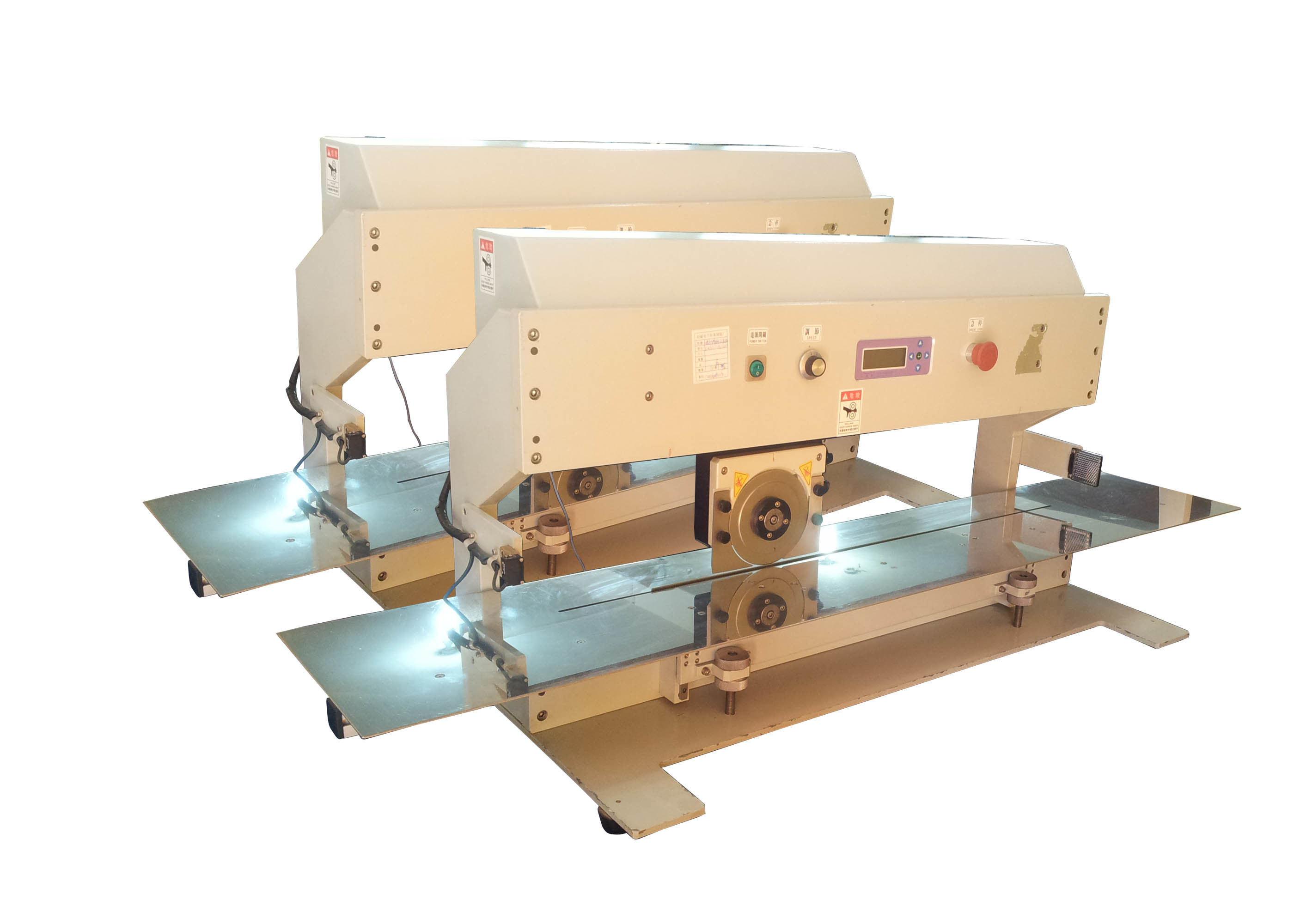

V-CUT PCB singulation machine:
1.Automatic blade moving singulating type and singulate both small and large PCBs fast and economically
2.For various kinds substrate PCB with pre-scored V groove
3.Safety use,easy operation and easy maintanance
4.Low bending stress,no vibration
V-CUT PCB singulation machine specifications:
| Model | CWV-1A |
| Max. PCB singulation length | 600 mm(on request custom made) |
| PCB singulation thickness | 0.6-3.5 mm |
| PCB singulation feed rate | 100,200,300,500 mm/sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110/220v |
| PCB singulation machine size | 770*510*450mm |
| PCB singulation machine weight | 55kg |
V-CUT PCB singulation machine features:
1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2.Effectively reduce stress and prevent solder point chap from PCB cutting.
3.PCB cutting speed can be adjusted by the rotary knob
4.PCB cutting stroke can be set free and setting value can be showed in LCD
5.Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
6.Optional PCB conveyor belt to remove finished PCB cut
[PCB Singulation Capability]
Maximum PCB Singulating Length(mm):460 or 600
Maximum PCB Singulating Thickness(mm):3.5
A:PC Board Singulating Thickness(mm):0.6~3.5
B:Minimum V-CUT Size(mm):0.25
C:PC Board V-CUT Fillister Thickness(mm):0.3~0.8
***PCB singulation video please see below net address: (CWV-1A)***
http://www.youtube.com/watch?v=kgQcXtUbpbw [ CWV-1A460 ]
http://www.youtube.com/watch?v=PMTN8RPocfA&feature=youtu.be [ CWV-1A600 ]
http://v.youku.com/v_show/id_XNjA0NTMyMjA0.html
http://v.youku.com/v_show/id_XNjA0NTI2OTI0.html
***Chuangwei PCB singulation machine***
***Since 2004 ChuangWei started to development,manufacture,sale,service for PCB singulation machine, until now,we have produced different kind PCB singulation machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB singulation machine base your actual requires.
***PCB singulation machine mainly applies to singulate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB singulation machine***
If you are interested in any of our products please feel free to contact us.
We are looking forward to hearing from you.
***PCB singulation machine video please see below net address: (CWV-1A)***
http://www.youtube.com/watch?v=kgQcXtUbpbw [ CWV-1A460 ]
http://www.youtube.com/watch?v=PMTN8RPocfA&feature=youtu.be [ CWV-1A600 ]
http://v.youku.com/v_show/id_XNjA0NTMyMjA0.html
http://v.youku.com/v_show/id_XNjA0NTI2OTI0.html
***Any interest please contact us freely.
***Chuangwei PCB Singulation Machine***
Chuangwei PCB singulation type:
Manual PCB singulation
motor-driven PCB singulation
pneumatic-driven PCB singulation
mold and die punching PCB singulation
milling cutter router PCB singulation
**********************
