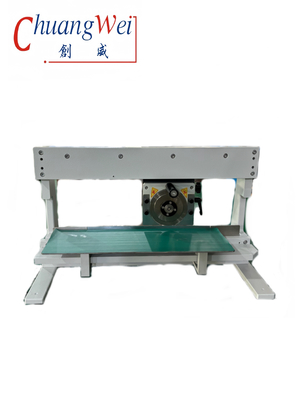

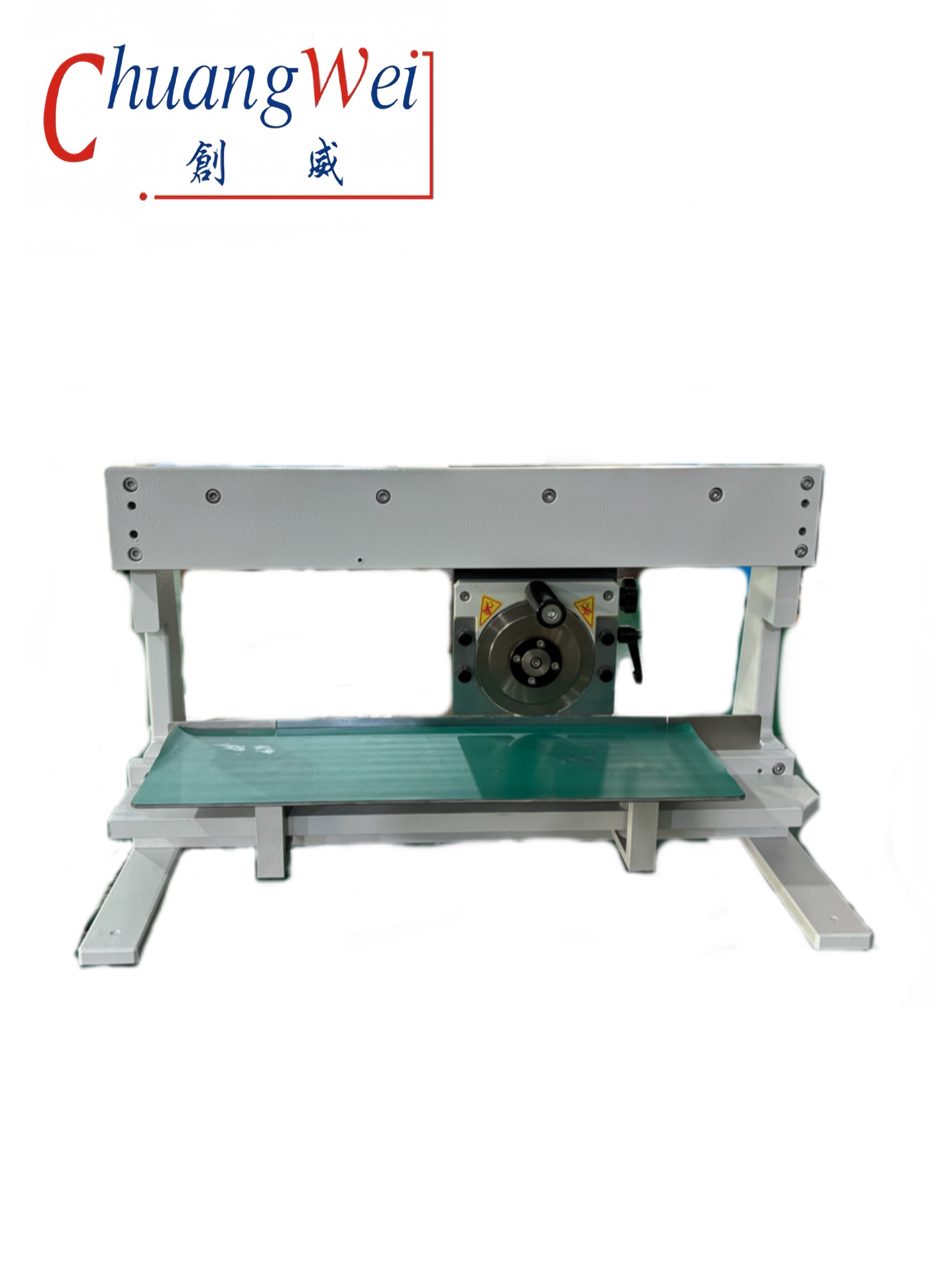

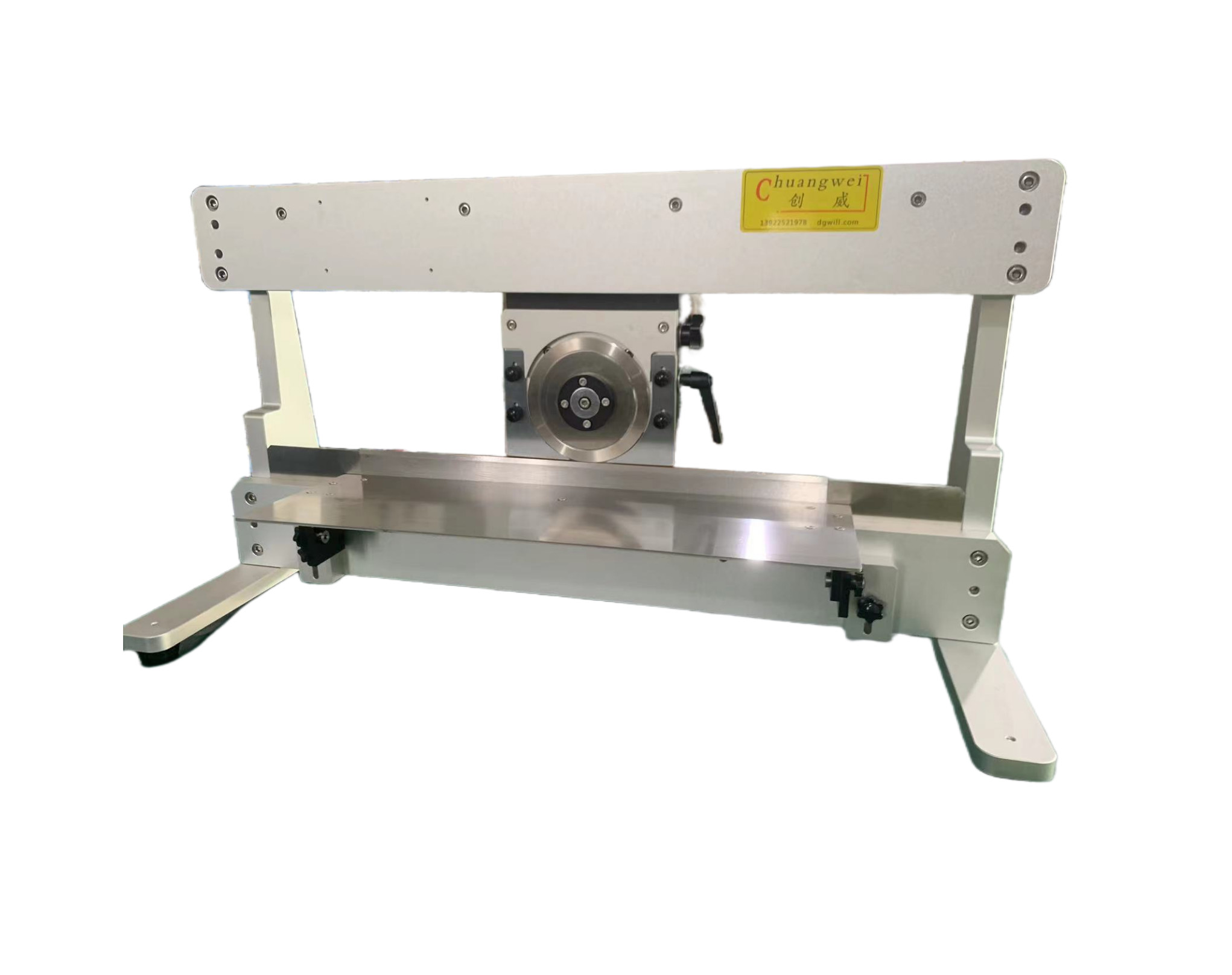

Calibration Blade Setting PCB Separator Machine for Accurate Cutting

1 Set
MOQ
Negotiable
Price
Calibration Blade Setting PCB Separator Machine for Accurate Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Model: CWV-1M
Cutting Speed (mm/s): Manual
Cutting Thickness (mm): 0.6~3.5
Weight (Kg): 55
Min. Order: 1
Size (mm): 400*780*480
High Light:

pcb assembly machine

,

metal cutter machine

Basic Infomation
Place of Origin: China
Brand Name: Chuangwei
Certification: CE GlobalMarket
Model Number: CWV-1M
Payment & Shipping Terms
Packaging Details: Plywooden Case
Delivery Time: 1 Week
Payment Terms: T/T, D/A, L/C
Supply Ability: 1000 Sets/Year
Product Description

 Precision V - CUT PCB Depaneling Machine Manual For ElectronicsSpecifications



Precision pcb depaneling machine

1.PCB Protection

2.Calibration Blade Setting

3.All Speed Control By Human

4.More Accurating



Specification:



Model

Precision pcb depaneling machine CWV-1M

PCB Cutting Length (mm)

460/700/1000/1500

Cutting Speed (mm/s)

manual

Cutting Thickness (mm)

0.6~3.5

Size (mm)

400*780*480

Weight (Kg)

55

Guarantee

1 Year

Delivery

5 Day

Ability

1000 Sets

Min. Order

1 Set



Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.



2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated



to high strength cutting, and excellent toughness, able to cut metal board  !!!!!!



Technical characteristics:


1. Structural precision, the load evenly, to eliminate internal stress



2. Safe, easy to operate



3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)



Feature:

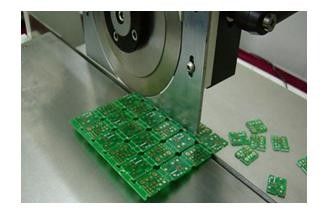

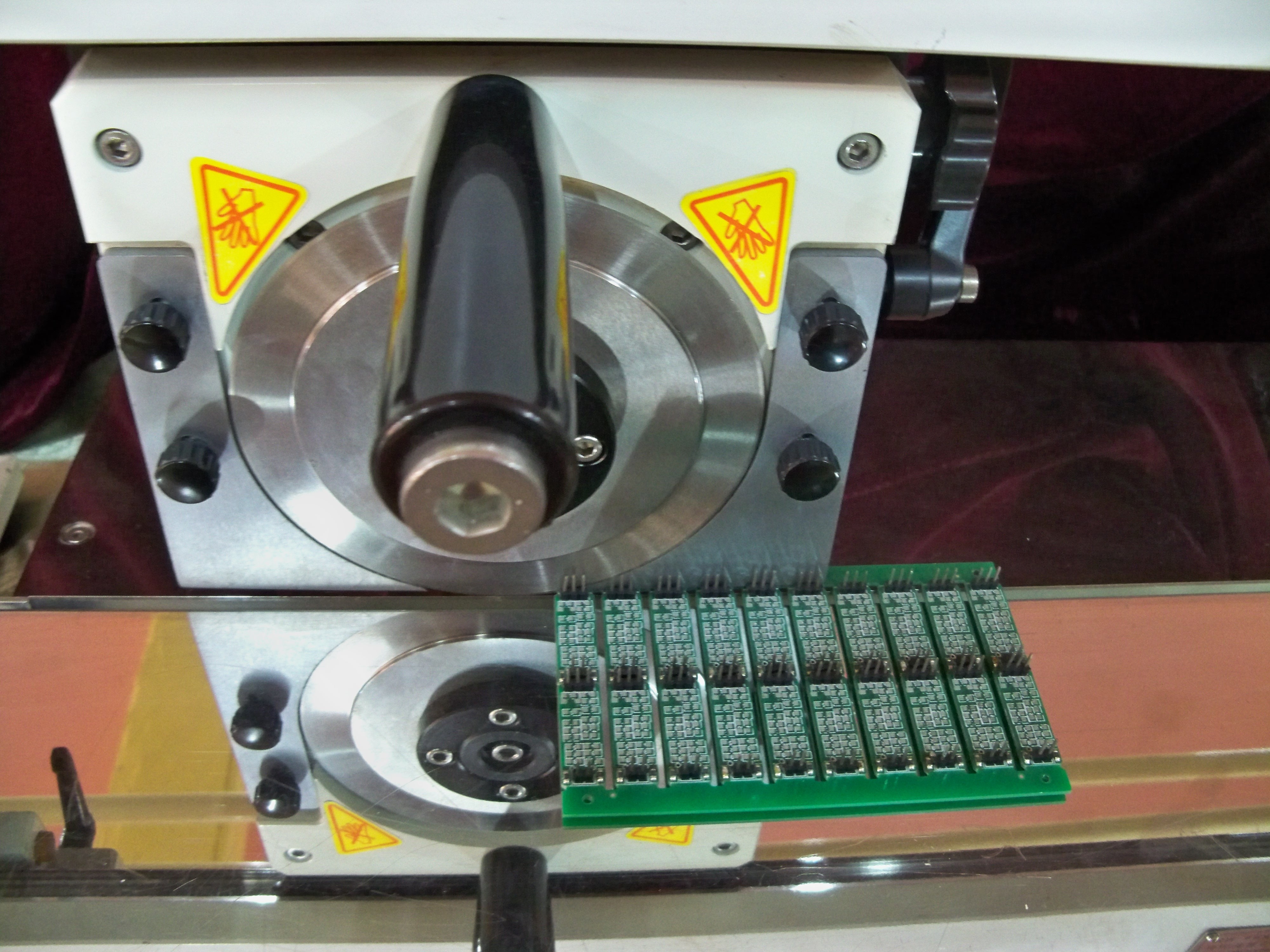

1.Round knife, manually cutting against lower linear knife, for reduced stress


2.Separate pre-scored PCB assembly without stress on either PCB or component


3.One touch programming of cut length with digital display


4.Separating speed is adjusted by a rotary knob


5.Handle Intermittent scoring or cut-outs


6.Board with projected component can be cut precisely


7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable


8.Optional PCB conveyor belt to remove finished board


9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

 Calibration Blade Setting PCB Separator Machine for Accurate Cutting 0

Our Advantage:



1.CWVC-1 Pcb depanelizer original manufacturers, price concessions



2.Promise day technical support services



3.Limit the handling of complaints, half an hour back to customers



4.Depanel Experts, the provision of professional PCB sub-programme



5.Reliable machine maker,we get Experts--15,each one got over 6 years
experience,equipment quality will be satisfying.
