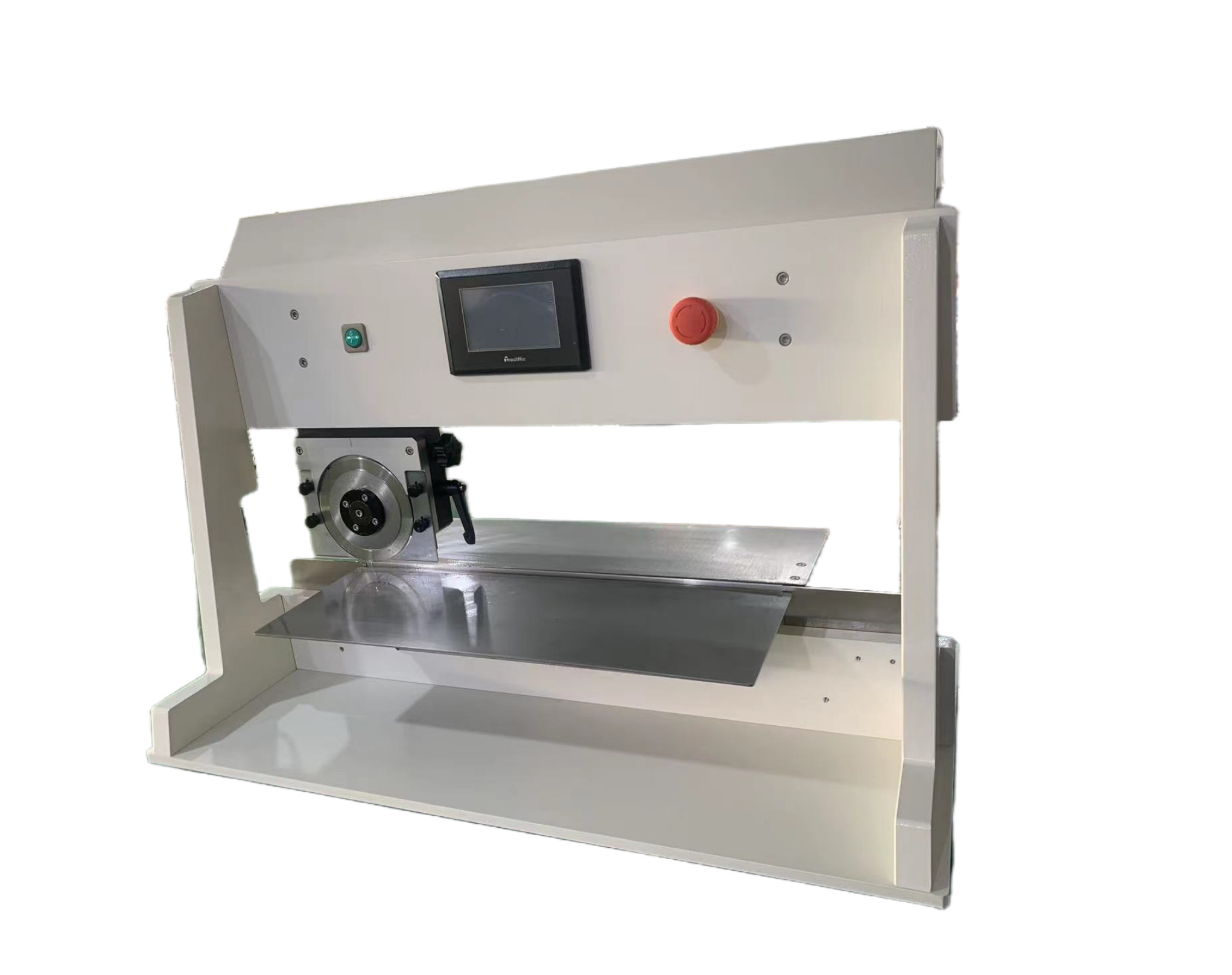

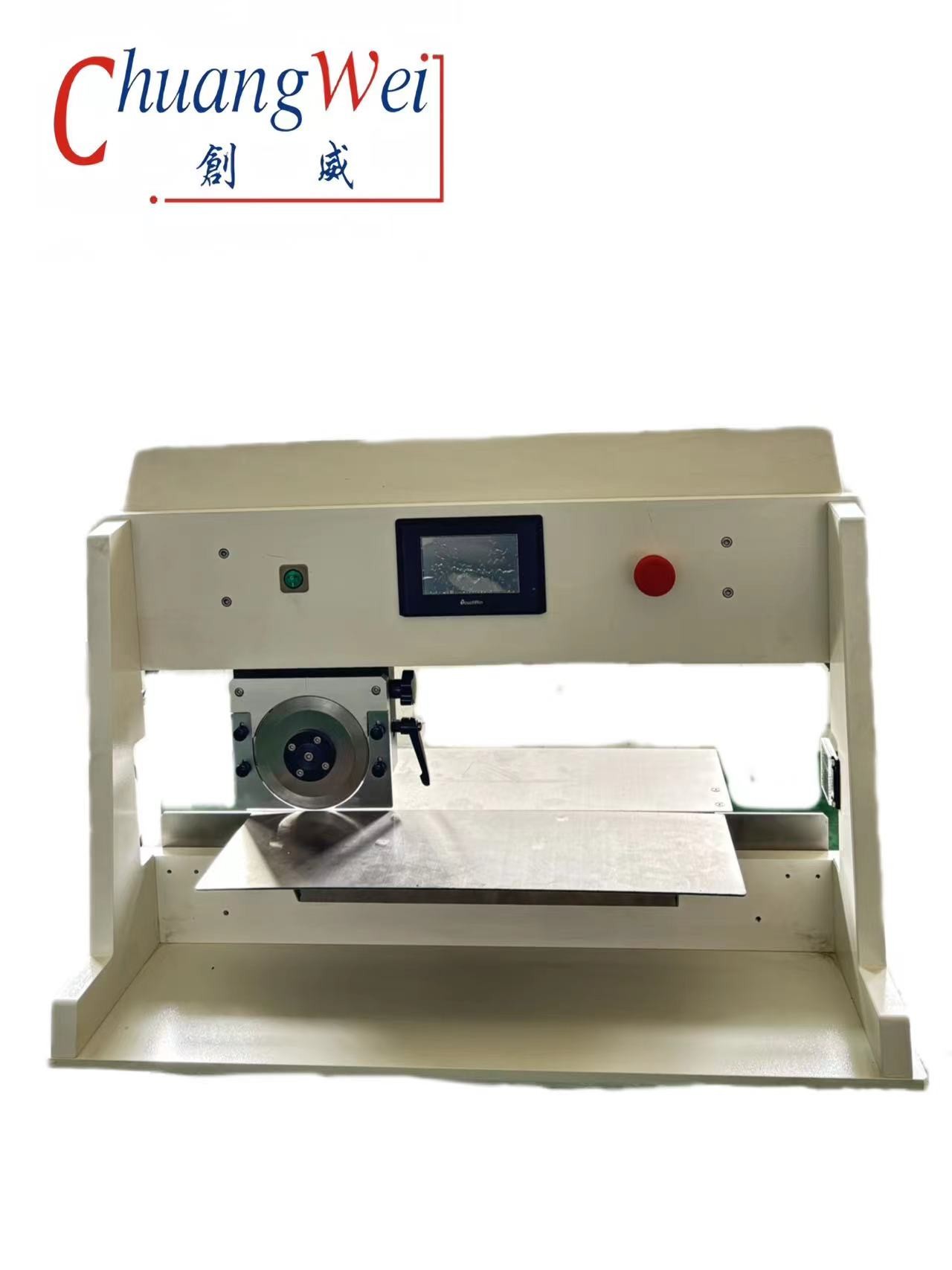

Large LCD Display PCB Circuit Board Depaneling Machine with Counter
Chuangwei Machine Diagram:
PCB depaneling with running type
1.Operator foolproof
2.Infrared protection
3.Calibration Blade Set
4.LCD program Control
Specification:
|
Model |
CWV-1A |
|
PCB Cutting Length (mm) |
460/600/1000 |
|
Cutting Speed (mm/s) |
100/200/300/500 |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Power Supply |
110/220 V |
|
Size (mm) |
770*510*450 |
|
Weight (Kg) |
55 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
7 |
|
Ability (Set) |
1000 |
|
Min. Order (Set) |
1 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:
1. Minimize the shearing stress to avoid micro-cracks of the solder joints.
2. Guiding device of the "V-CUT" of the PCB.
3. Ball bearing slideways for easy setting of the PCB edge guides.
4. Ball bearing slideways for easy setting of the height of the tabletop.
5. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6. Cutters can be re-grinded
7. The shape of the cutter can be customer made
Our Advantage:
1. CWVC-1 Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
