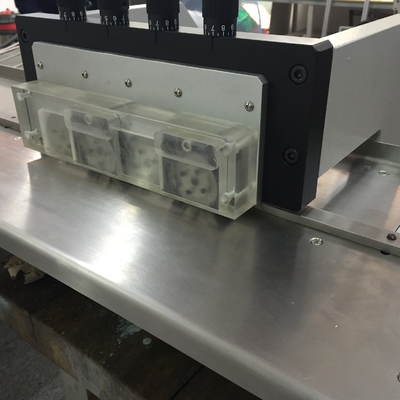

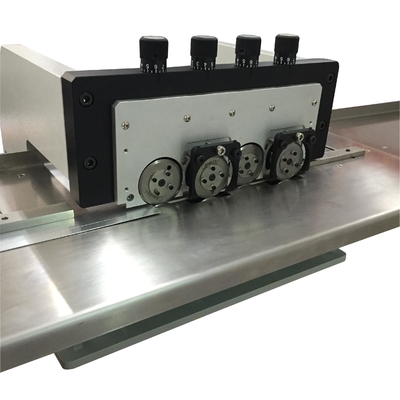

PCB Separator PCB Cutting PCB Depaneling For LED Lighting With 4 Sets Blades
Specification :
| Max PCB width: | 12mm |
| Platform : | 1.5 M /2.4 M length |
| Machine Size : | 40*40*34 cm |
| The Longest Minimize : | No limited |
| Minimize Speed : | 0-520mm/s |
| Minimize thickness : | 1.0-3.5mm |
| Machine Weight : | 70Kg |
Feature:
1. The guide can be adjusted vertically to suit different LED board.
2. Clearance between the circular blades can be precisely
adjusted by the knob

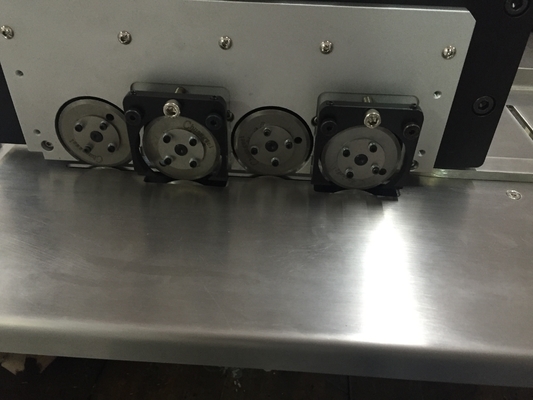

3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to the customer's specifications.
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect
7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)
CE Approval
why choose us:
1. Engineers available to service machinery overseas
Engineers are available to be sent to foreign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As the largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
◇ 7- day delivery
◇ 24 hours fast response
◇ Largest manufactory in South China
◇ 100% responsible for quality
◇ 15 years experience
◇ Free sharpening for blades within 3 months
◇ Controlled drawings make strict confidentiality for clients
