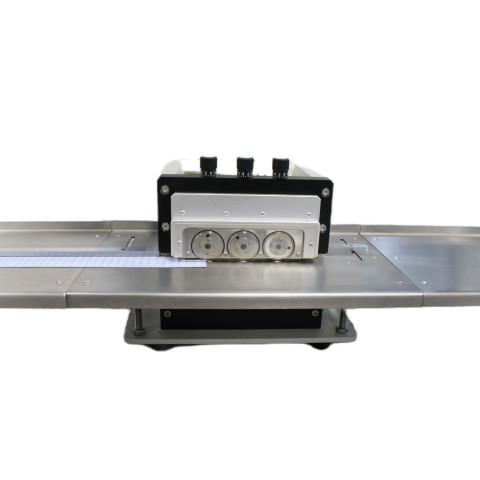

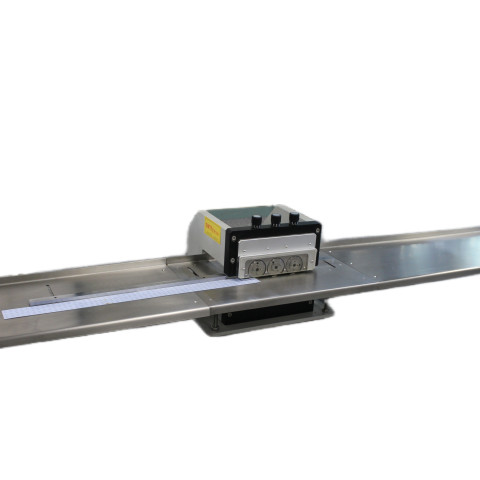

V-cut PCB Electrostatic Separator High Speed Steel With Multi-blade
Specification for pcb separator:
| Model | CWVC-3S |
| machine size | 40*40*34 cm |
| platform size | 150*27*20 cm |
| mininze speed | 0-400mm/s |
| cutting thickness | 1.0-3.5mm |
| Max cutting length | unlimited |
| Machine weight | 45 kg |
Features:
1 . It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2 . No vibration during the process to prevent damage to precise PCB
3 . Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied

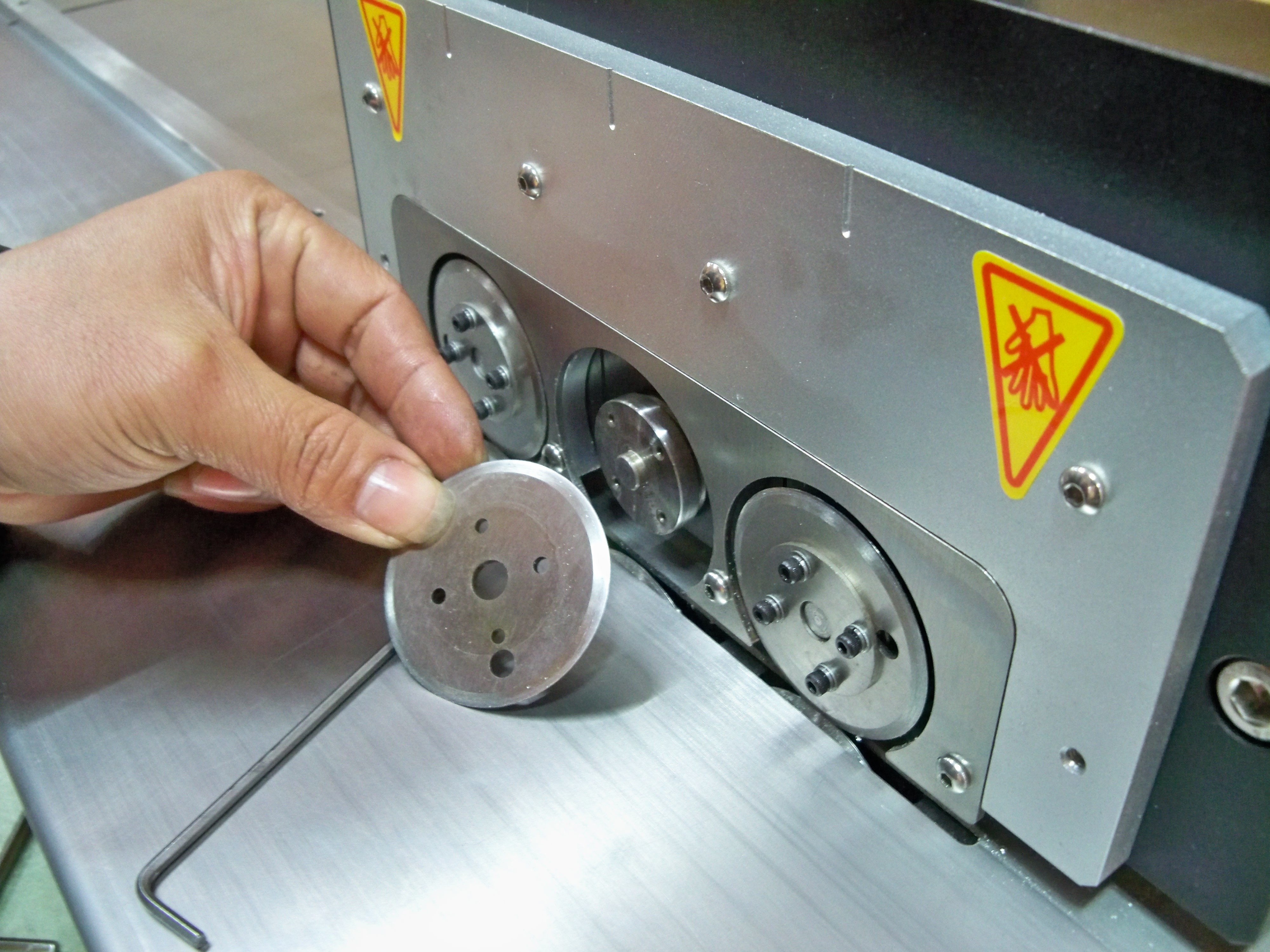

4 . Lower knife height adjustable , no thin plates are required after re-sharpening the cutting blade
5 . Operation and maintenance can be done also by unskilled personnel
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
