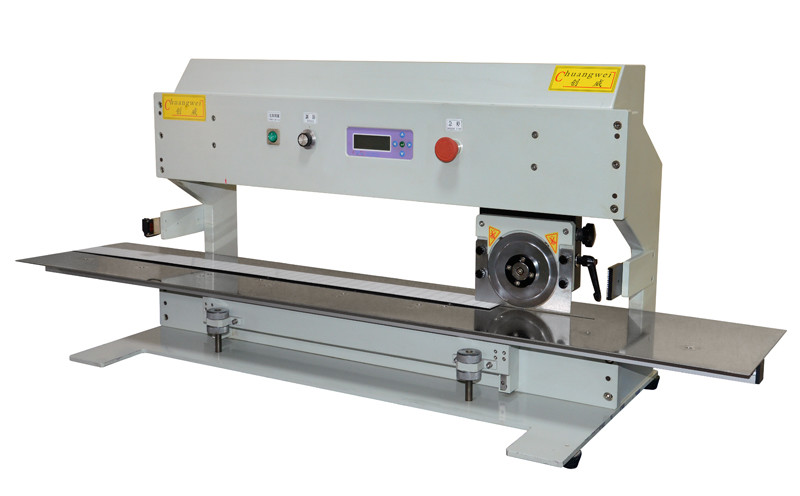

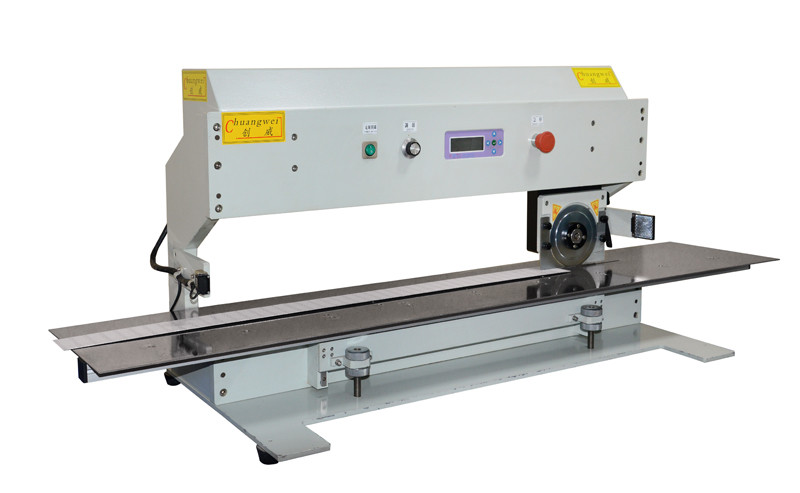

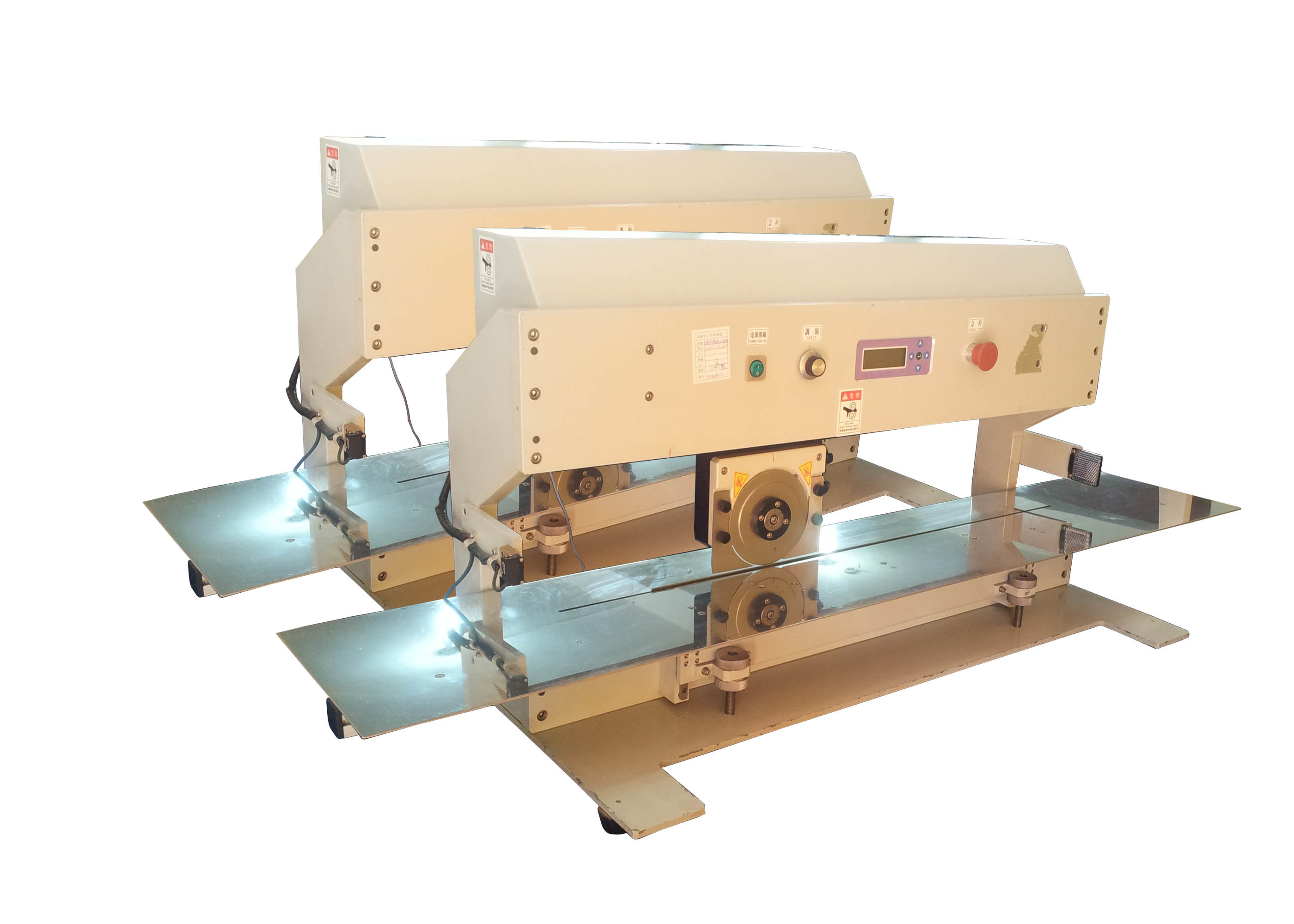

Separator Automatic Feeding Machine Long Pcb Aluminum Board Advantages:
After soldering the plate of connecting pieces , it often hurts lines or breaks the electronic parts when breaking . This machine cuts with feed mode to reduce stress drastically, prevent the solder joint and parts from cracking and improve the productivity and quality.With circle knife above and anvil blade below, when the board flow to the anvil blade, shift the switch, and the anvil blade move laterally tto he set point, then the PCB board is cut off with smooth incision and no burrs.The forward and stop point can be set according to the plate length when feeding, the stop point for artificial setting.The tailgate depth range: unlimited. The upper and lower knives is made of imported high-speed steel material, which are durable and can be regrinded .The machine can be in supporting use of a complete set of conveyor belt, which is convenient for the cut PCB to be send out automatically .
The feed distance of the knife wheel is from 0 to 500mm(the tool length can be customized ) . The height of the knife wheel is fine-tuning from 0 to 2mm so that it is suitable for PCB of various kinds of thickness and the depth of V-CUT groove. The height of work station is regulable from 0 to 50mm.
Specifications:
Model :CWV-1A 460
machine size: 770mm X 510mm X 450mm
Max PCB Length: 410mm
Minimize Speed: 100/200/300/500mm/s
Minimize thickness: 0.6-3.5mm
Machine Weight:90Kg
Model :CWV-1A1200
Size: 1660mm X 530mm X 510mm
Max PCB Length: 1200mm
Minimize Speed: 100/200/300/500mm/s
Minimize thickness: 0.6-3.5mm
Machine Weight: 350Kg
PCB Related Separator Machine
